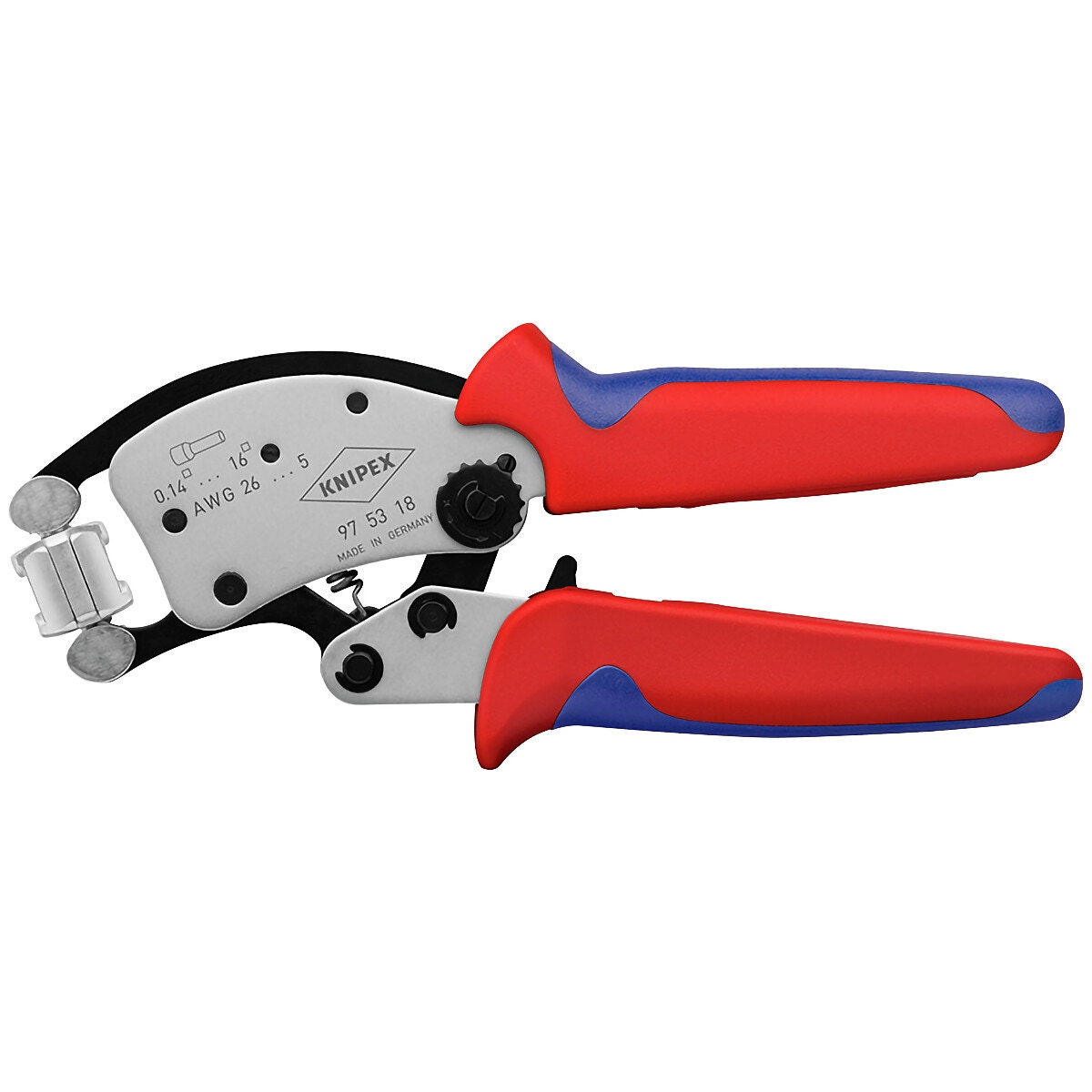

FREZAS KRIMPIS 200 MM TWISTOR16 97 53 18

Description

self-adjusting crimping pliers for end sleeves (ferrules) | for crimping end sleeves (ferrules) according to DIN 46228 parts 1 + 4 | square crimp profile, high capacity range of 0.14 to 16 mm² | 360° rotatable crimping die; with 8 tactile locking positions | self-adjustment to the desired size of end sleeve (ferrule): no crimping errors due to using the wrong crimping die or to an incorrect setting | crimping of twin end sleeves (ferrules) up to 2 x 6 mm² possible | slim head for ideal accessibility | repetitive, high crimping quality due to integral lock (self-releasing mechanism) | favourable lever ratio due to toggle lever | crimping pressure has been set precisely (calibrated) in the factory, re-adjustable | handy shape and low weight provide high operation comfort | chrome vanadium electric steel in special quality, oil-hardened | capacity 0.14 – 16.0 mm² | AWG 26 – 5 | number of crimping positions 1 | length 200 mm | weight 478 g

Attributes

Package length (cm): 3 | Package width (cm): 10 | Package height (cm): 25 | Gross weight (kg): 0.532000 | EAN: 4003773082736
