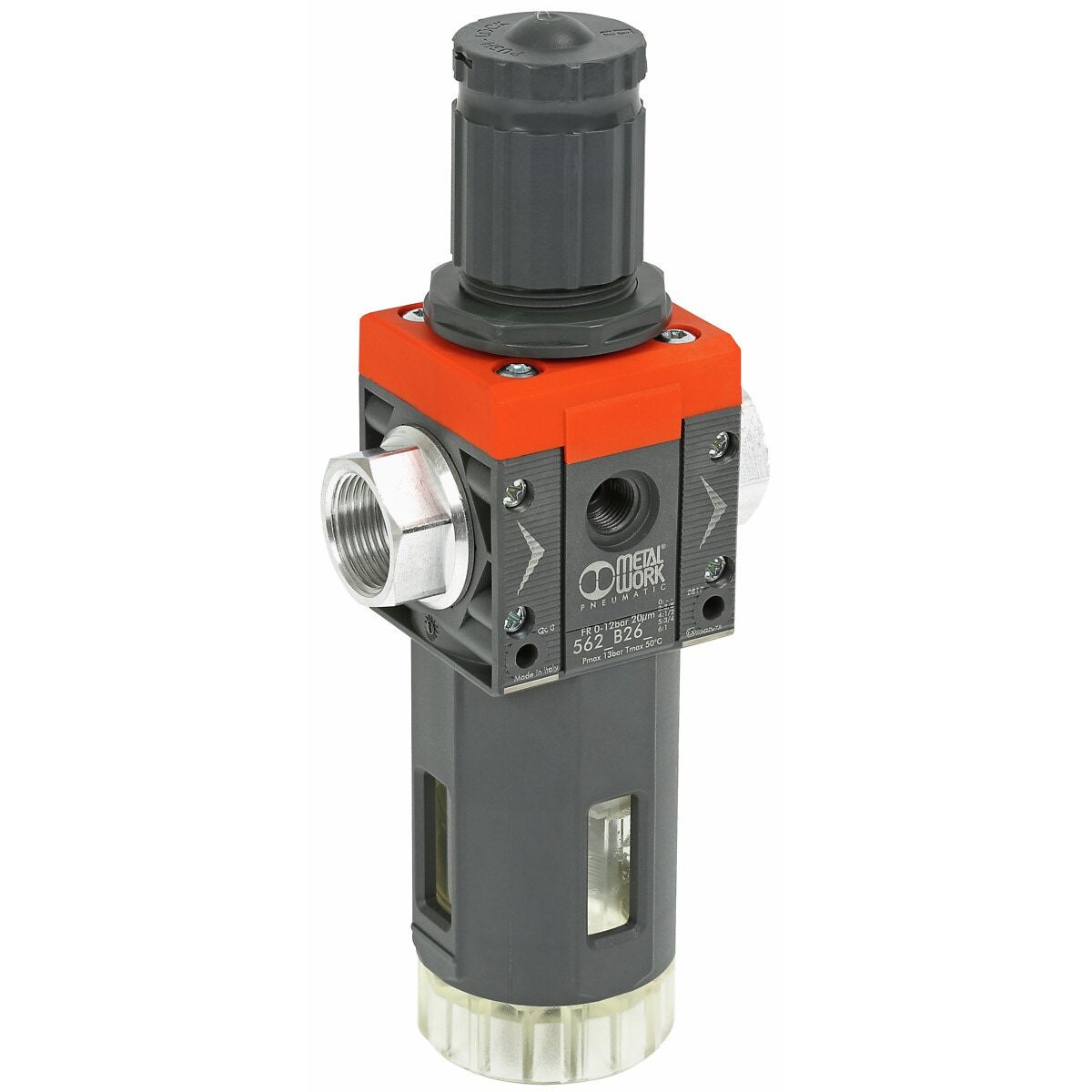

FILTRS-REGULATORS 3/4 SY2 FR12 20MIC 0-12BAR SYNTES

Description

Syntesi filter regulator SY2 | combines in a single unit the functions of filtration, condensate separation and pressure regulation | RMSA: drain with manual condensate discharge and automatic discharge at zero pressure | padlockable knob | thread G 3/4" | pressure gauge port or additional air take-off G 1/4" | tank capacity 70 cm³ | degree of filtration 20 micron (output air purity class ISO8573-1: 4.7.4) | max. operating pressure 13 bar | flow rate at 6,3 bar (pressure drop 0,5 bar) 5200 Nl/min | flow rate at 6,3 bar (pressure drop 1 bar) 7400 Nl/min | relief valve flow rate at 6,3 bar 100 Nl/min | additional air take-off flow rate at 6,3 bar 1400 Nl/min | operating temperature -10…+50 °C | fluid: compressed air or other inert gases | mounting position vertical | wall fixing screws M5 | weight 592 g | A 61 | A1 95 | B 246 | C 61 | CH 32 | D 70.5 | E 47.5 | F 38.2 | G M5 | I 22.5 | L M38x2 | M 178 | N 139.8 | O 245 | P (pressure gauge port or additional air take-off) 1/4"

Attributes

Thread: G 3/4" -14 | Package length (cm): 26.8 | Package width (cm): 6.5 | Package height (cm): 12.8 | Gross weight (kg): 0.708000 | EAN: 8024986995114
