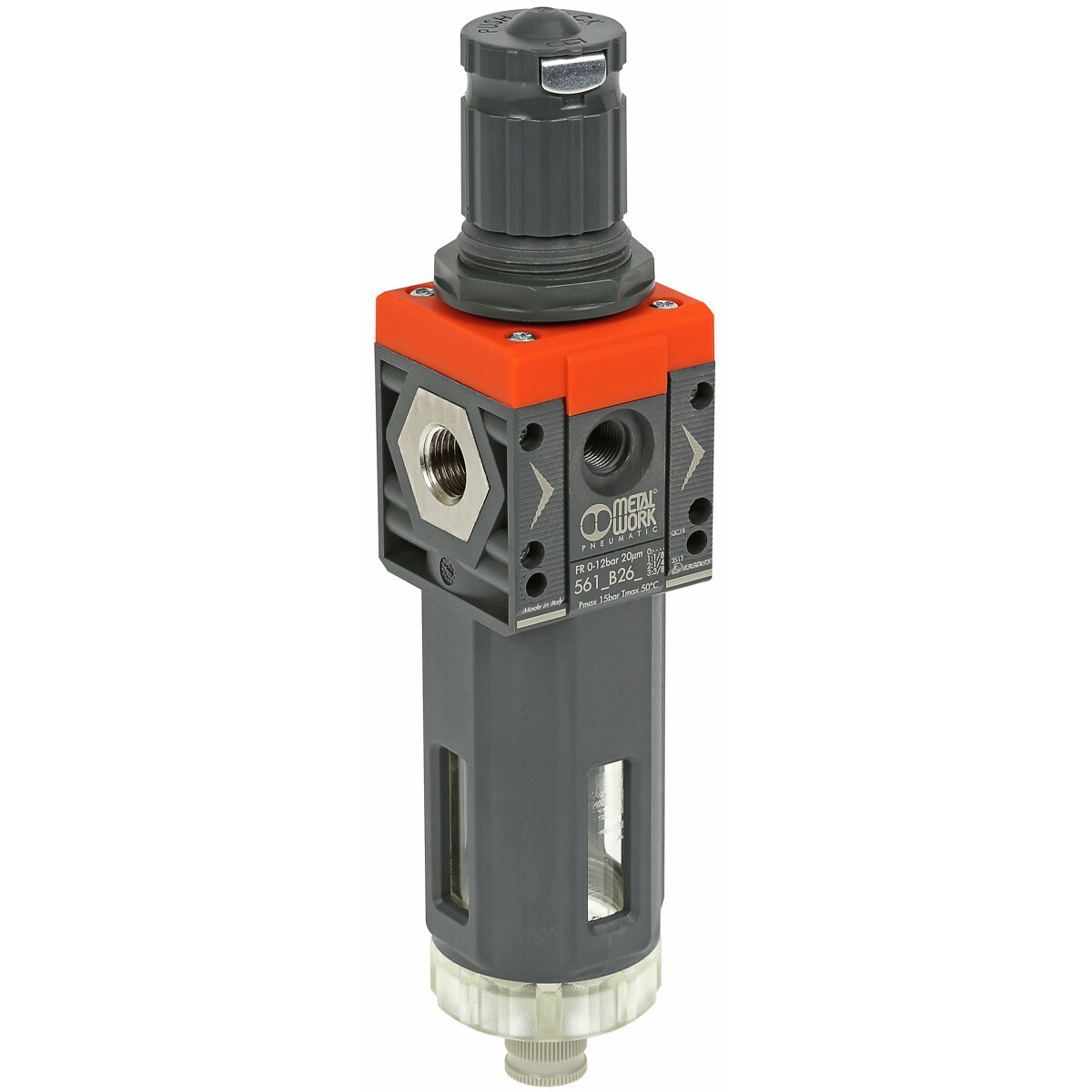

Filtrs-regulators 1/4 sy1 fr04 20mic 0-12bar syntes

Description

Syntesi filter regulator SY1 | combines in a single unit the functions of filtration, condensate separation and pressure regulation | RMSA: drain with manual condensate discharge and automatic discharge at zero pressure | padlockable knob | thread G 1/4" | pressure gauge port or additional air take-off G 1/8" | tank capacity 30 cm³ | degree of filtration 20 micron (output air purity class ISO8573-1: 4.7.4) | max. operating pressure 15 bar | flow rate at 6,3 bar (pressure drop 0,5 bar) 800 Nl/min | flow rate at 6,3 bar (pressure drop 1 bar) 2000 Nl/min | relief valve flow rate at 6,3 bar 70 Nl/min | additional air take-off flow rate at 6,3 bar 500 Nl/min | operating temperature -10…+50 °C | fluid: compressed air or other inert gases | mounting position vertical | wall fixing screws M4 | weight 239 g | A 42 | B 198 | C 44 | D 51.5 | E 33.5 | F 25.8 | G M4 | I 16 | L M30x1,5 | M 148 | N 122.2 | O 202 | P (pressure gauge port or additional air take-off) 1/8"

Attributes

Thread: G 1/4" -19 | Package length (cm): 6.3 | Package width (cm): 16 | Package height (cm): 20.7 | Gross weight (kg): 0.331000 | EAN: 8024986886702
