FILTRS-REGULATORS 1/4 FR04 RMSA 20MIC 0-8BAR BIT
69 €
✓ Pieejams
Description

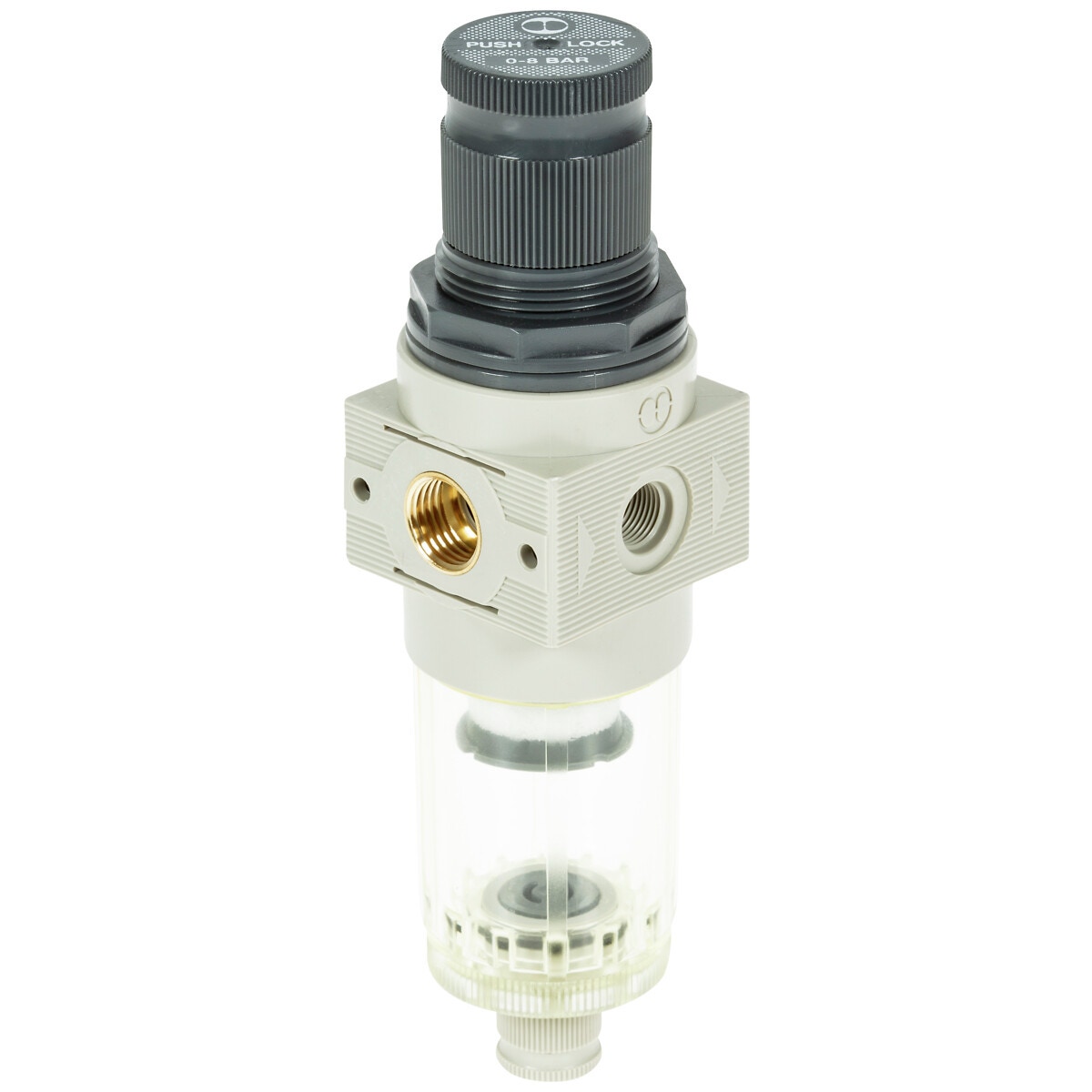

BIT filter regulator | combines in a single unit the functions of filtration, condensate separation and pressure regulation | RMSA: drain with manual condensate discharge and automatic discharge at zero pressure | thread G 1/2" | gauge port G 1/8" | setting range 0 – 8 bar | degree of filtration 20 micron | max. operating pressure 18 bar | flow rate at 6,3 bar (pressure drop 0,5 bar) 1000 Nl/min | flow rate at 6,3 bar (pressure drop 1 bar) 2500 Nl/min | max. operating temperature +50 °C | tank capacity 45 cm³ | fluid: compressed air | wall fixing screws M4 x 55 | mounting position vertical | weight 1,0 kg
Attributes
Thread: G 1/2" -14 | Package length (cm): 15.8 | Package width (cm): 4.3 | Package height (cm): 4.3 | Gross weight (kg): 0.170000 | EAN: 8024986167016
