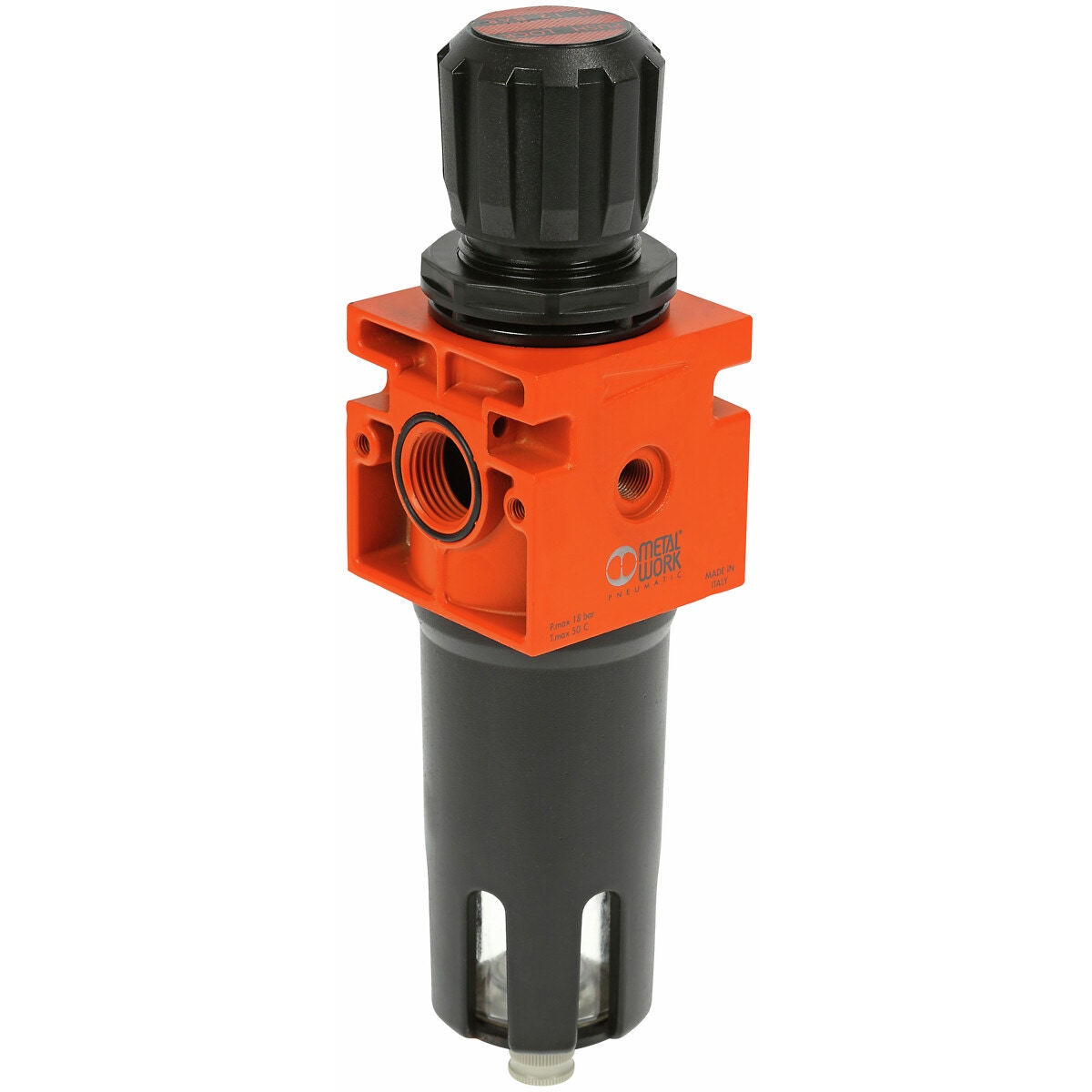

FILTRS-REGULATORS 1/2 FR06 RMSA 20MIC 0-12BAR JAUNS D

Description

New Deal filter regulator | combines in a single unit the functions of filtration, condensate separation and pressure regulation | RMSA: drain with manual condensate discharge and automatic discharge at zero pressure | highly reliable, piston-operated | standard overpressure blow-off valve | thread G 1/2" | gauge port G 1/8" | setting range 0 – 12 bar | degree of filtration 20 micron | max. operating pressure 18 bar | flow rate at 6,3 bar (pressure drop 0,5 bar) 1000 Nl/min | flow rate 6,3 bar (pressure drop 1 bar) 2500 Nl/min | max. operating temperature +50 °C | tank capacity 45 cm³ | fluid: compressed air | wall fixing screws M4 x 55 | mounting position vertical | weight 1,0 kg | A 60 | B 245 | C 60 | D 60 | E 52 | F 38 x 2 | G 14 | I 150 | L M4 | M 185 | N (pressure gauge port) 1/8" | P 295

Attributes

Thread: G 1/2" -14 | Package length (cm): 25.5 | Package width (cm): 6.7 | Package height (cm): 6.7 | Gross weight (kg): 0.671000 | EAN: 8024986120165
