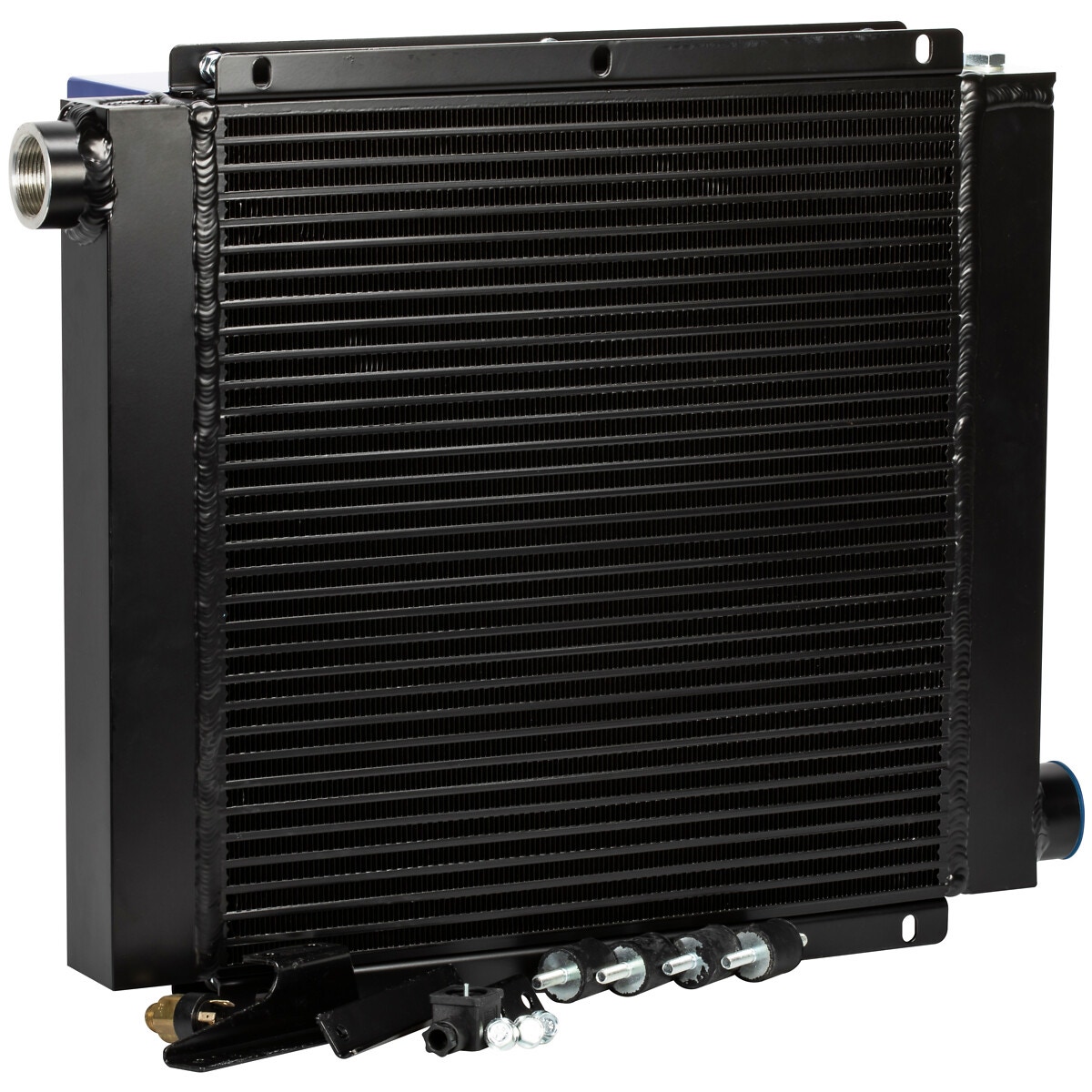

EĻĻAS KOLEKTORS 20-160 12V

Description

high-quality aluminium-framed oil cooler with a 12 V fan, made in Europe | easy and simple to install | very efficient oil cooler for its size | suitable for a wide range of applications where efficient cooling for hydraulic oil is required | thanks to its good protection, it is also well suited for different types of hydraulic machines and demanding conditions | voltage 12 V | output current 18.6 A | fan air flow 3260 m³ / h | oil flow 20-160 l/min | max. operating pressure 24 bar | fan starts at +60 °C and stops at +48 °C | capacity 12000 Kcal/h | connections G 1 1/4" | volume 3.7 l | protection class IP68 | weight 19 kg

Attributes

Thread: G 1 1/4" -11 | Package length (cm): 50.5 | Package width (cm): 61.7 | Package height (cm): 24 | Gross weight (kg): 21.150000 | EAN: 6418914190115
