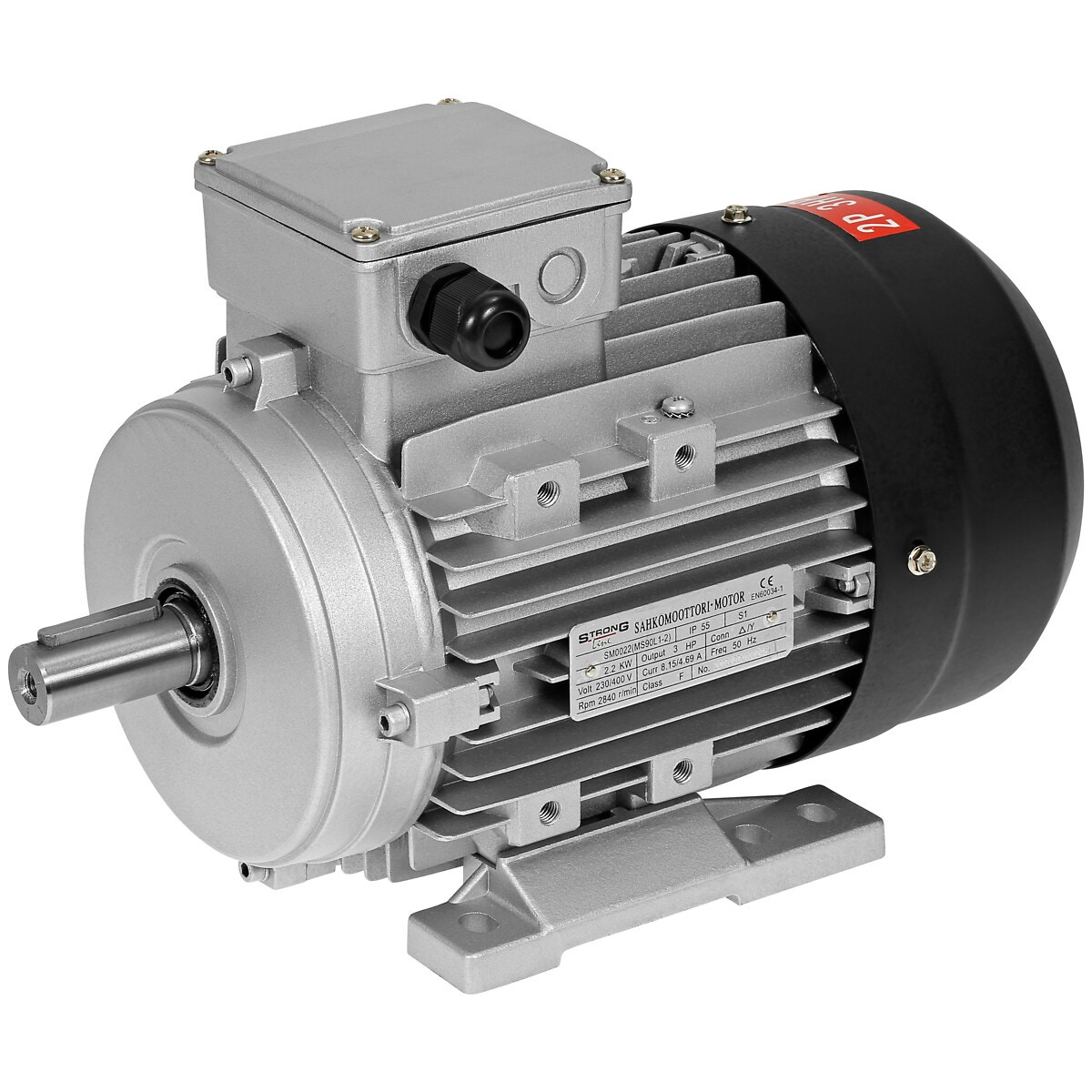

Elektromotors 230/400v 2,2kw 24x50mm b3

Description

power 2,2 kW / 3 hv | voltage 230/400 V (not suitable for star-delta starting) | speed 2840 rpm | nominal current 4,69 A | protection class IP55 | insulation class F | shaft Ø 24 x L 50 mm | mount type B3 (distance between fastening holes 140 x 100/125 mm, hole Ø 10 mm) | A 140 | B 125 | C 56 | D 24 | E 50 | F 8 | G 20 | H 90 | K 10 | AB 180 | AC 185 | AD 145 | HD 235 | L 360

Attributes

Package length (cm): 38 | Package width (cm): 21.5 | Package height (cm): 29 | Gross weight (kg): 15.550000 | EAN: 6418914859999
