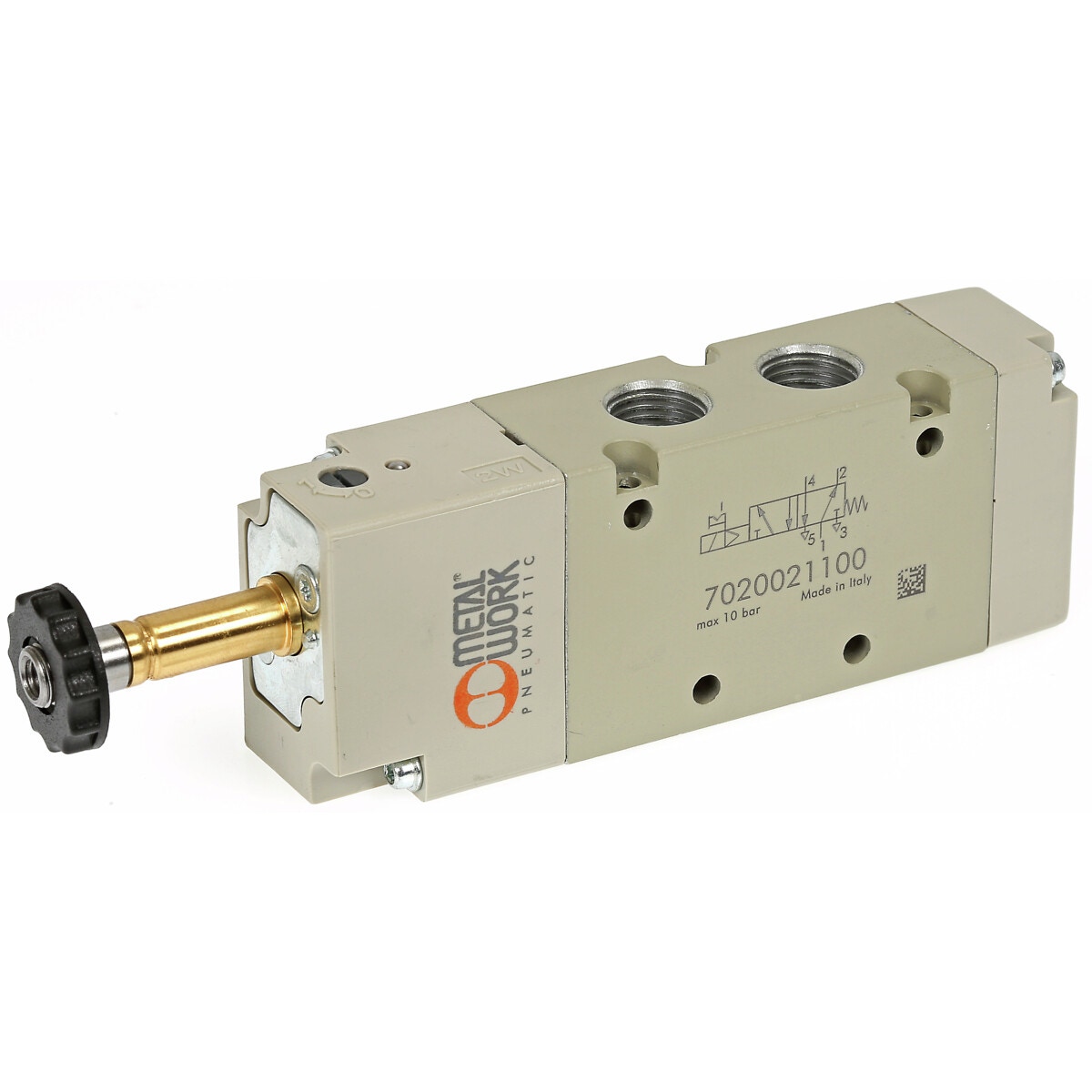

ELEKTROMAGNĒTISKAIS VĀRSTS 5/2 1/4 SOL/SPRING SOV35SOSNC

Description

70 SOV series | power 2 W (DC) 3,5 VA (AC) | voltage tolerance -10 to +15 % | insulation class F 155 | type bistable guarded | thread G 1/4" | operating pressure 2,5 – 10 bar (monostable) / 1 – 10 bar (bistable) | min. pilot pressure 2,5 bar | flow rate at 6 bar (pressure drop 0,5 bar) 750 Nl/min | flow rate at 6 bar (pressure drop 1,0 bar) 1100 Nl/min | operating temperature -10…+60 °C | fluid: lubricated or unlubricated filtered air | family SOV: solenoid/pneumatic | size 3: 1/4" | function 5: 5/2 | operators 14 SO: solenoid | resetting 12 S: mechanical springs | further details OO: 5/2

Attributes

Thread: G 1/8" -28, G 1/4" -19 | Package length (cm): 6.3 | Package width (cm): 16 | Package height (cm): 20.7 | Gross weight (kg): 0.285000 | EAN: 8024986170955
