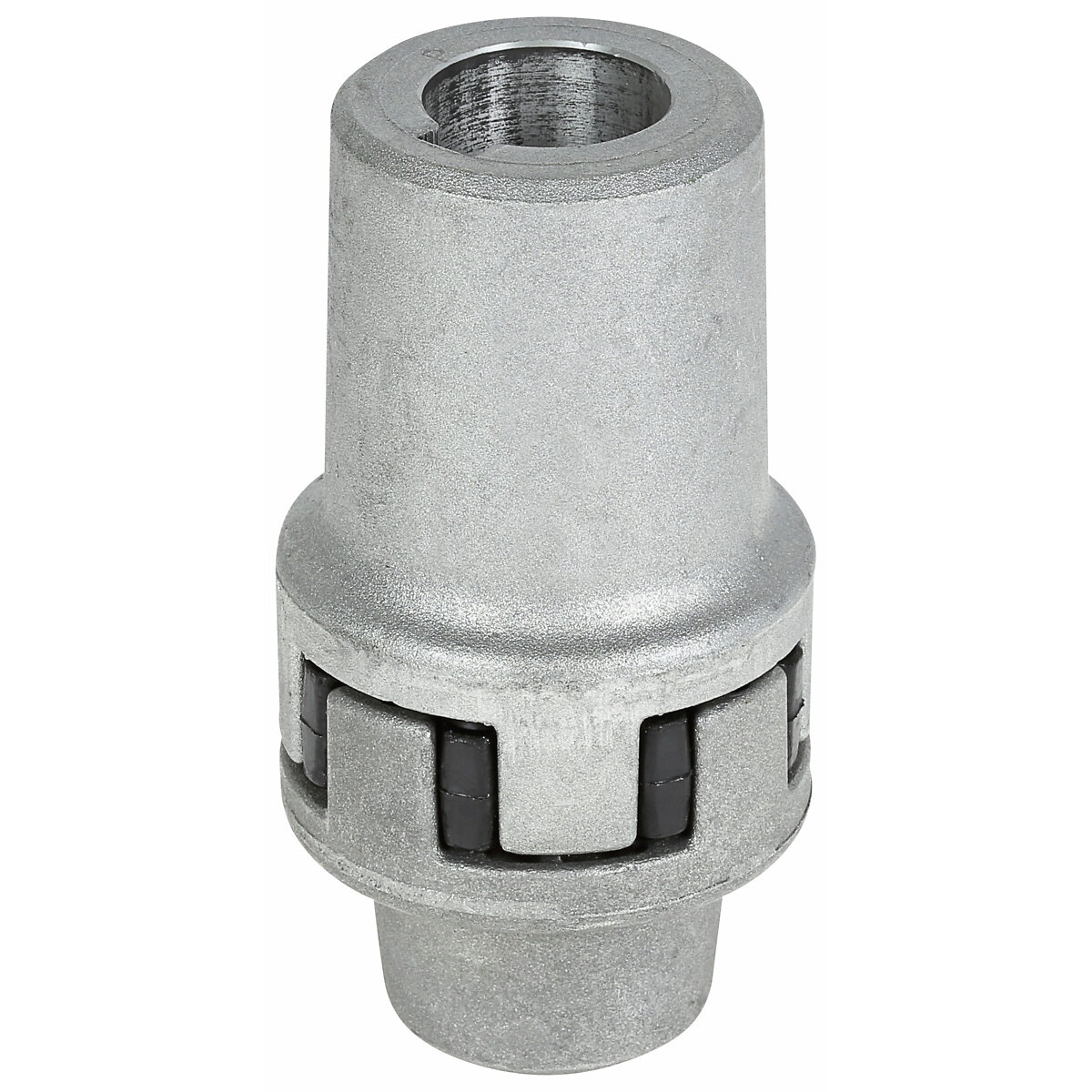

ELASTĪGO SAKABJU KOMPLEKTS 3 SĒRIJAS 63 MM HE48 P+M+GUMIJA

Description

type HE48 | pump 3 series, tapered shaft 1:8 (Euro model) | electric motor IEC 100 – 122 (1500 rpm / 2,2 – 4 kW), shaft Ø 28 mm | diameter Ø 63 mm | length 119.5 mm | includes both pump and motor sides and flexible insert | D1 63 | L1 119,5 | D2 51 | D3 28 | L2 64,5 | C1 8 | C2 31,2 | L3 19 | D4 44 | D5 18,36 (1:8) | L4 28 | L5 36 | C3 4 | C4 12,5

Attributes

Package length (cm): 11.9 | Package width (cm): 6.3 | Package height (cm): 6.3 | Gross weight (kg): 0.443000 | EAN: 6418914965317
