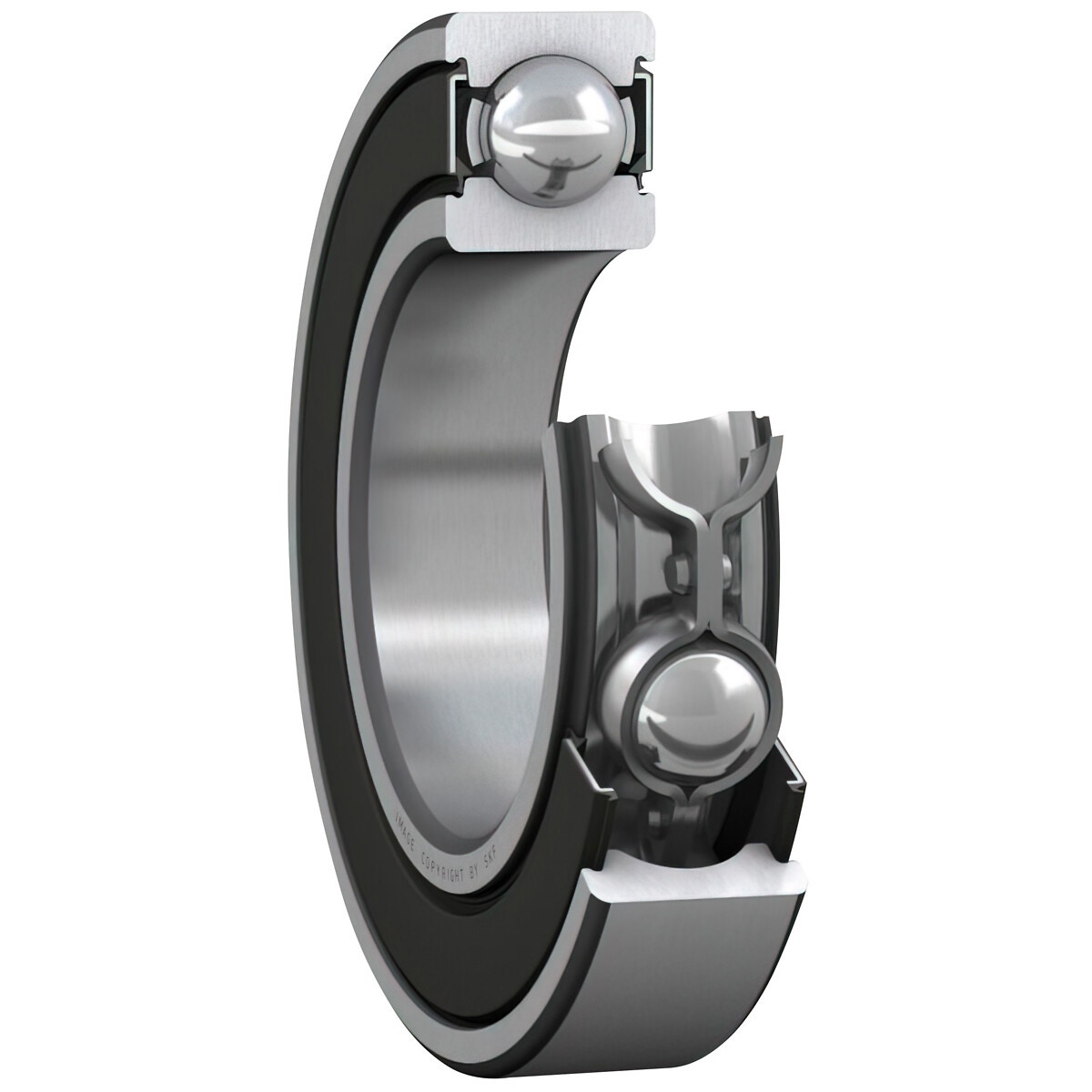

Dziļfrēžu lodīšu gultnis 9x26x8 skf

Description

bore diameter (d) 9 mm | outer diameter (D) 26 mm | width (B) 8 mm | inner ring recess diameter (d2) 12.55 mm | outer ring abutment recess diameter (D2) 22.6 mm | chamfer dimension (r1,2) min. 0.3 mm | abutment shaft diameter (da) min. 11.4 mm | abutment shaft diameter (da) max. 12.5 mm | abutment housing diameter (Da) max. 23.6 mm | fillet radius (ra) max. 0.3 mm | basic dynamic load rating (C) 4.75 kN | basic static load rating (C0) 1.96 kN | fatigue load limit (Pu) 0,083 kN | limiting speed 19000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 12

Attributes

Inner diameter Ø (mm): 9 | Inner diameter Ø (mm): 9.00 | Outer diameter Ø (mm): 26 | Outer diameter Ø (mm): 26.00 | Package length (cm): 2.7 | Package width (cm): 2.7 | Package height (cm): 1 | Gross weight (kg): 0.026000 | EAN: 7316571840017
