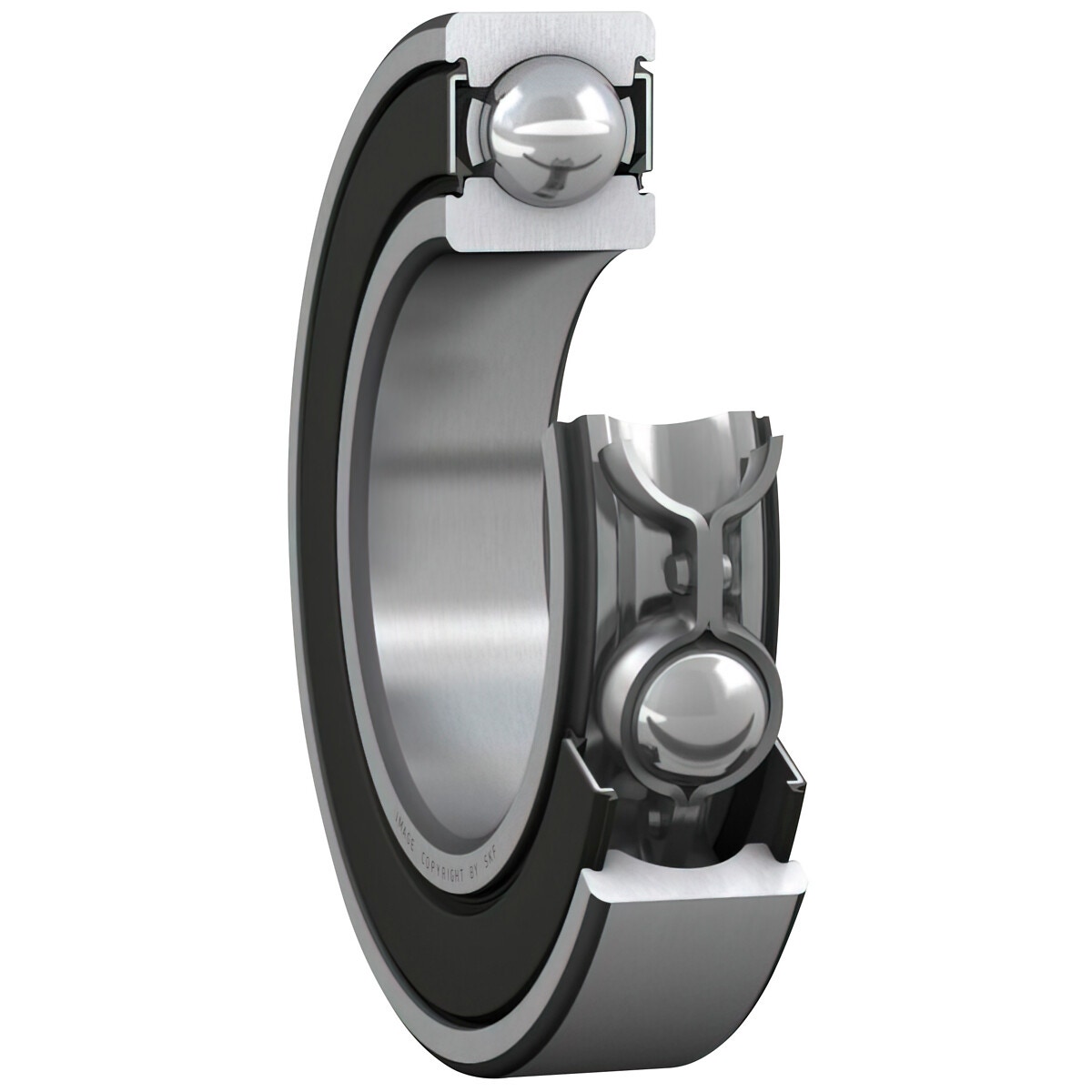

Dziļfrēžu lodīšu gultnis 9x24x7 skf

Description

bore diameter (d) 9 mm | outer diameter (D) 24 mm | width (B) 7 mm | inner ring abutment recess diameter (d2) 12.85 mm | outer ring abutment recess diameter (D2) 21.2 mm | chamfer dimension (r1,2) min. 0.3 mm | abutment shaft diameter (da) min. 11 mm | abutment shaft diameter (da) max. 12.5 mm | abutment housing diameter (Da) max. 22 mm | fillet radius (ra) max. 0.3 mm | basic dynamic load rating (C) 3.9 kN | basic static load rating (C0) 1.66 kN | fatigue load limit (Pu) 0,071 kN | limiting speed 19000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 13

Attributes

Inner diameter Ø (mm): 9 | Inner diameter Ø (mm): 9.00 | Outer diameter Ø (mm): 24 | Outer diameter Ø (mm): 24.00 | Package length (cm): 2 | Package width (cm): 2 | Package height (cm): 1 | Gross weight (kg): 0.015000 | EAN: 7316571853161
