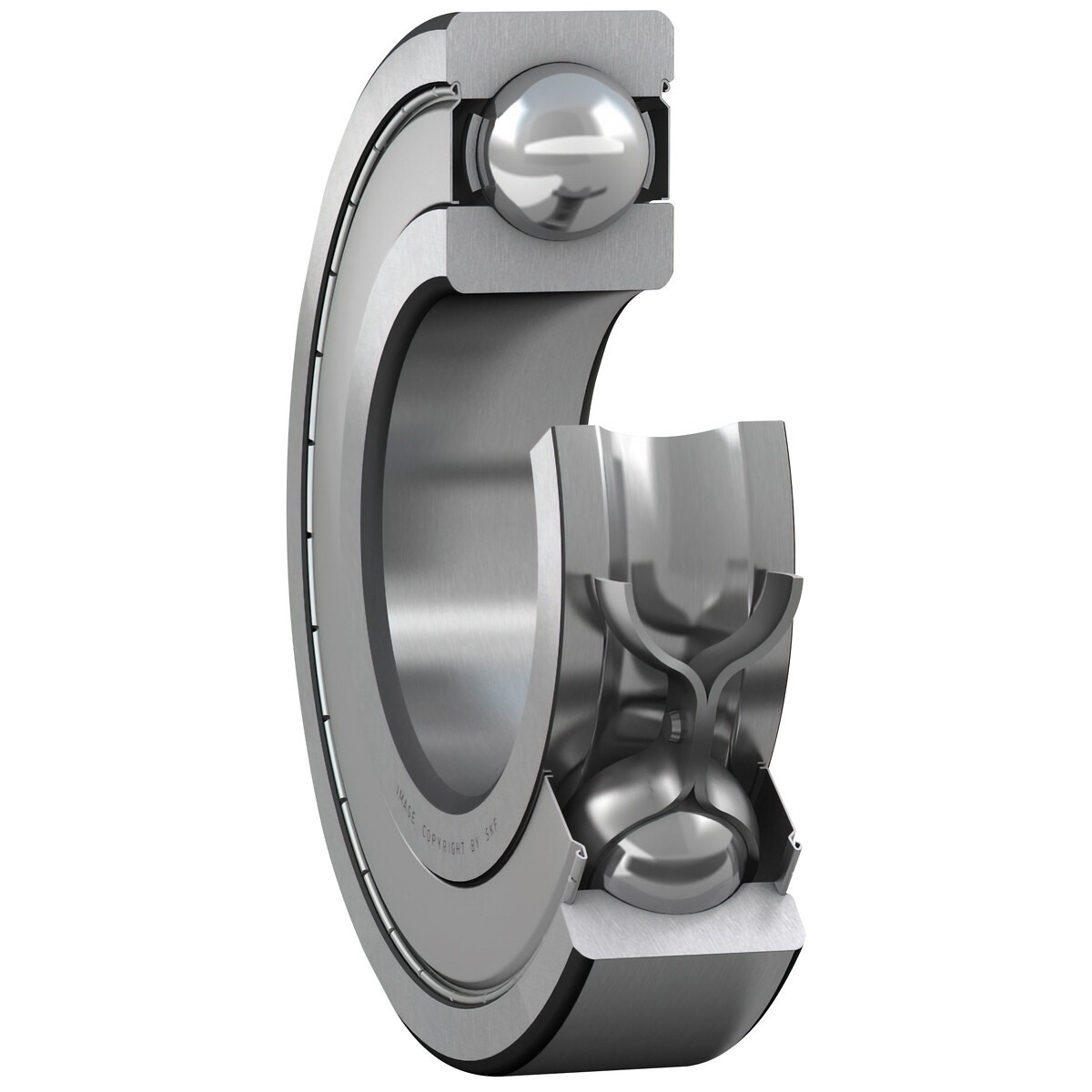

Dziļfrēžu lodīšu gultnis 9x20x6 skf
44 €
✓ Pieejams
Description
bore diameter (d) 9 mm | outer diameter (D) 20 mm | width (B) 6 mm | inner ring shoulder diameter (d1) 11.61 mm | inner ring abutment recess diameter (d2) 11.61 mm | outer ring abutment recess diameter (D2) 17.44 mm | chamfer dimension (r1,2) min. 0.3 mm | abutment shaft diameter (da) min. 11 mm | abutment shaft diameter (da) max. 11.1 mm | abutment housing diameter (Da) max. 18 mm | fillet radius (ra) max. 0.3 mm | basic dynamic load rating (C) 1.95 kN | basic static load rating (C0) 0.93 kN | fatigue load limit (Pu) 0,045 kN | reference speed 80000 r/min | limiting speed 40000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 11.6
Attributes
Inner diameter Ø (mm): 9 | Inner diameter Ø (mm): 9.00 | Outer diameter Ø (mm): 20 | Outer diameter Ø (mm): 20.00 | Package length (cm): 2 | Package width (cm): 2 | Package height (cm): 1 | Gross weight (kg): 0.008000 | EAN: 7316570466218
