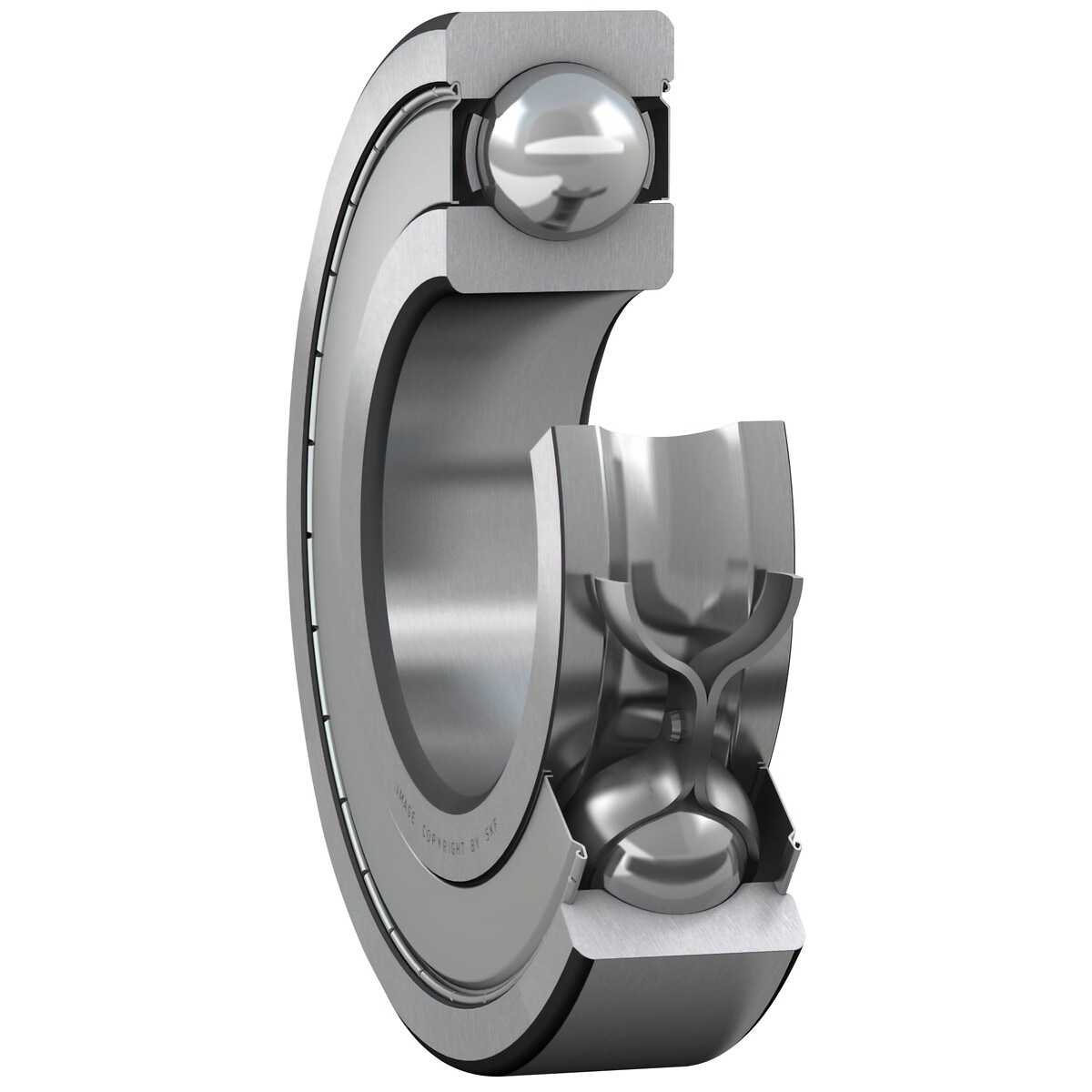

Dziļfrēžu lodīšu gultnis 8x19x6 skf
24 €
✓ Pieejams
Description
bore diameter (d) 8 mm | outer diameter (D) 19 mm | width (B) 6 mm | inner ring shoulder diameter (d1) 10.5 mm | outer ring abutment recess diameter (D2) 16.66 mm | chamfer dimension (r1,2) min. 0.3 mm | abutment shaft diameter (da) min. 9.5 mm | abutment shaft diameter (da) max. 9.8 mm | abutment housing diameter (Da) max. 17 mm | fillet radius (ra) max. 0.3 mm | basic dynamic load rating (C) 1.46 kN | basic static load rating (C0) 0.465 kN | fatigue load limit (Pu) 0,02 kN | reference speed 85000 r/min | limiting speed 43000 r/min | calculation factor (kr) 0.02 | calculation factor (f0) 6.6
Attributes
Inner diameter Ø (mm): 8 | Inner diameter Ø (mm): 8.00 | Outer diameter Ø (mm): 19 | Outer diameter Ø (mm): 19.00 | Package length (cm): 2 | Package width (cm): 2 | Package height (cm): 1 | Gross weight (kg): 0.008000 | EAN: 7316577121868
