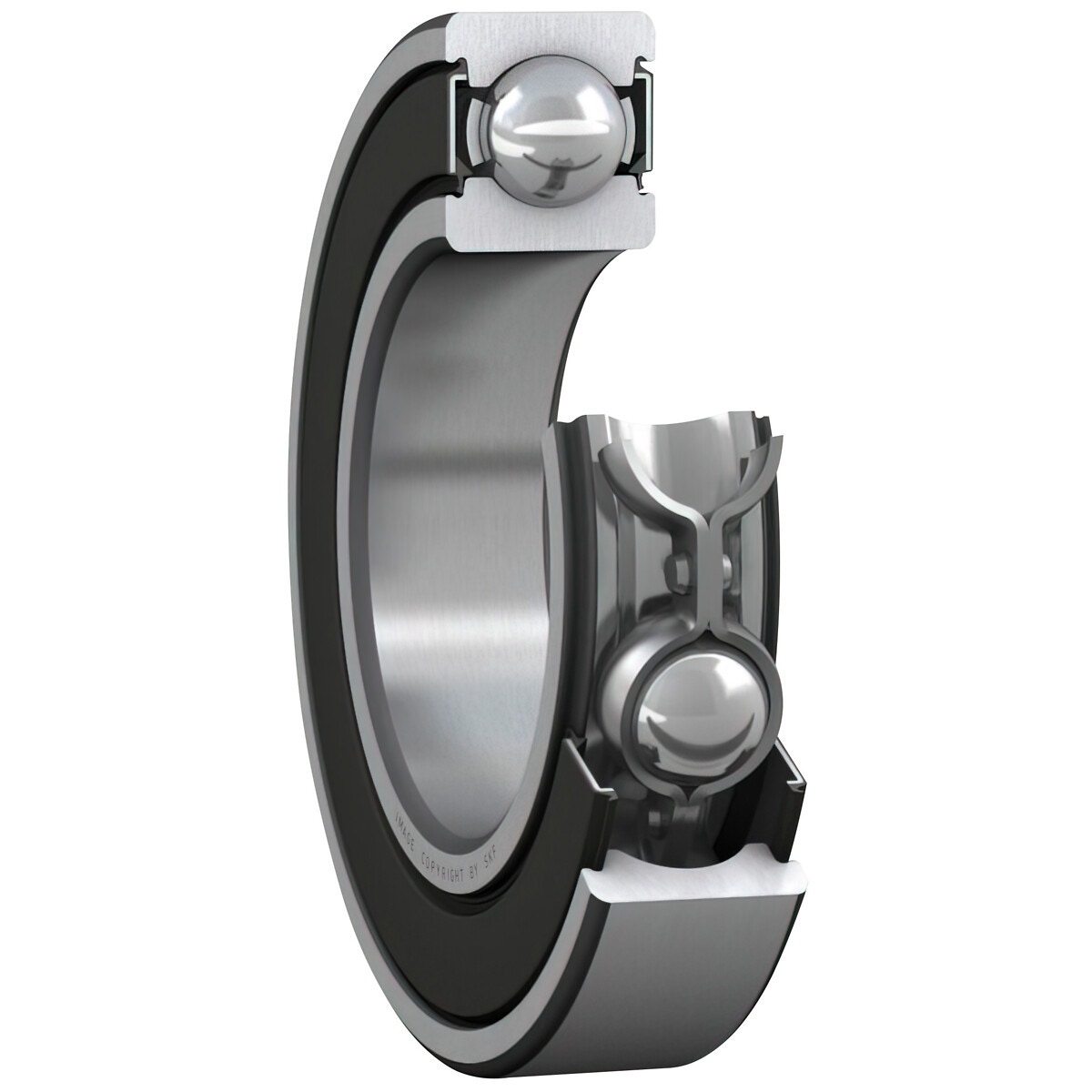

Dziļfrēžu lodīšu gultnis 7x19x6 skf

Description

bore diameter (d) 7 mm | outer diameter (D) 19 mm | width (B) 6 mm | inner ring abutment recess diameter (d2) 9.5 mm | outer ring abutment recess diameter (D2) 16.5 mm | chamfer dimension (r1,2) min. 0.3 mm | abutment shaft diameter (da) min. 9 mm | abutment shaft diameter (da) max. 9.4 mm | abutment housing diameter (Da) max. 17 mm | fillet radius (ra) max. 0.3 mm | basic dynamic load rating (C) 2.34 kN | basic static load rating (C0) 0.95 kN | fatigue load limit (Pu) 0,04 kN | limiting speed 24000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 13

Attributes

Inner diameter Ø (mm): 7 | Inner diameter Ø (mm): 7.00 | Outer diameter Ø (mm): 19 | Outer diameter Ø (mm): 19.00 | Package length (cm): 2.5 | Package width (cm): 2.5 | Package height (cm): 1 | Gross weight (kg): 0.008000 | EAN: 7316571839233
