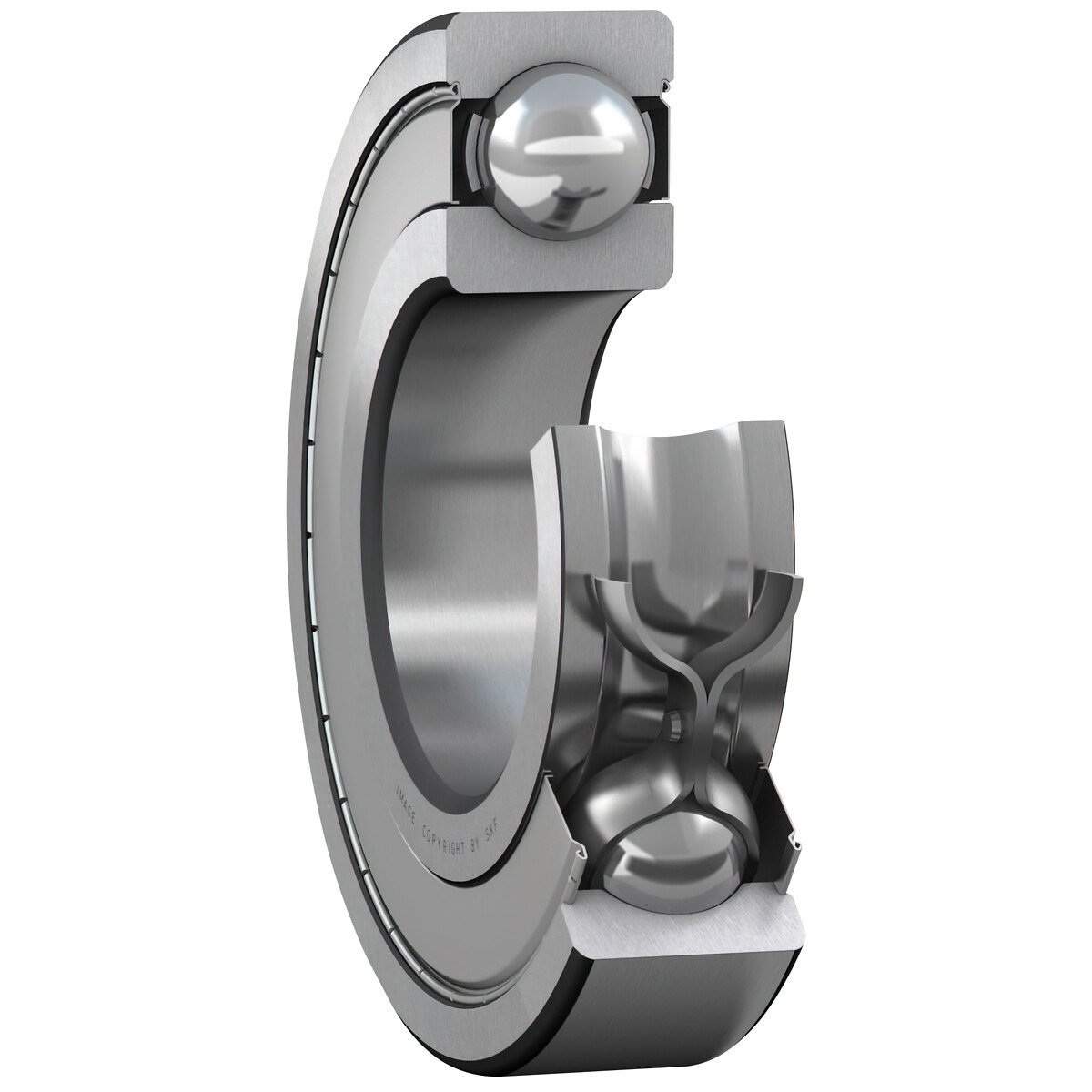

Dziļfrēžu lodīšu gultnis 6x15x5 skf
22 €
✓ Pieejams
Description
bore diameter (d) 6 mm | outer diameter (D) 15 mm | width (B) 5 mm | inner ring shoulder diameter (d1) 8.2 mm | outer ring abutment recess diameter (D2) 13 mm | chamfer dimension (r1,2) min. 0.2 mm | abutment shaft diameter (da) min. 7.4 mm | abutment shaft diameter (da) max. 8 mm | abutment housing diameter (Da) max. 13.6 mm | fillet radius (ra) max. 0.2 mm | basic dynamic load rating (C) 0.884 kN | basic static load rating (C0) 0.27 kN | fatigue load limit (Pu) 0,011 kN | reference speed 100000 r/min | limiting speed 50000 r/min | calculation factor (kr) 0.02 | calculation factor (f0) 6.8
Attributes
Inner diameter Ø (mm): 6 | Inner diameter Ø (mm): 6.00 | Outer diameter Ø (mm): 15 | Outer diameter Ø (mm): 15.00 | Package length (cm): 1.5 | Package width (cm): 1.5 | Package height (cm): 1 | Gross weight (kg): 0.004000 | EAN: 7316577101532
