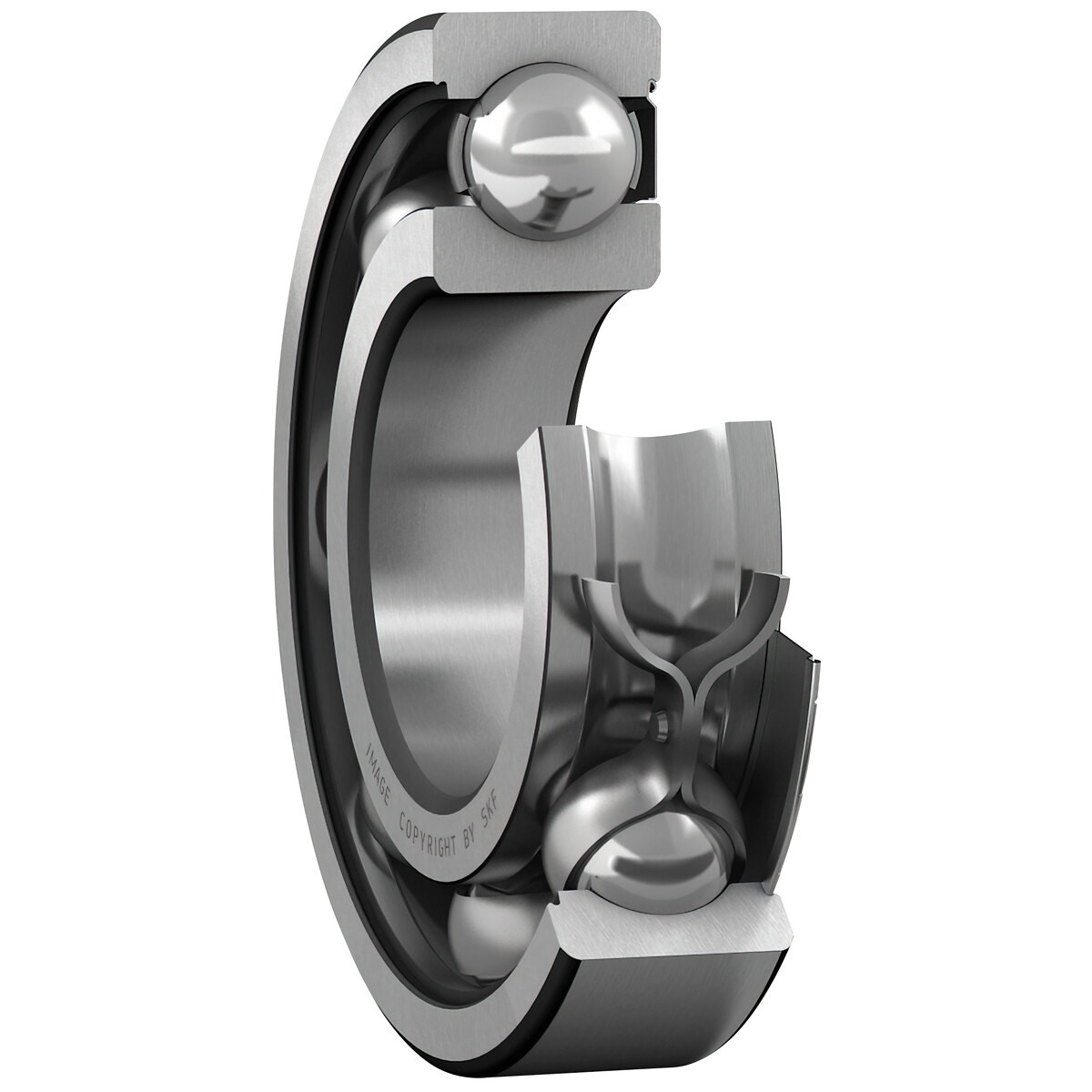

Dziļfrēžu lodīšu gultnis 5x16x5 skf

Description

bore diameter (d) 5 mm | outer diameter (D) 16 mm | width (B) 5 mm | inner ring shoulder diameter (d1) 8.4 mm | outer ring abutment recess diameter (D2) 13.22 mm | chamfer dimension (r1,2) min. 0.3 mm | abutment shaft diameter (da) min. 7.4 mm | abutment shaft diameter (da) max. 8.3 mm | abutment housing diameter (Da) max. 13.6 mm | fillet radius (ra) max. 0.3 mm | basic dynamic load rating (C) 1.14 kN | basic static load rating (C0) 0.38 kN | fatigue load limit (Pu) 0,016 kN | reference speed 95000 r/min | limiting speed 48000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 8.4

Attributes

Inner diameter Ø (mm): 5 | Inner diameter Ø (mm): 5.00 | Outer diameter Ø (mm): 16 | Outer diameter Ø (mm): 16.00 | Package length (cm): 2.5 | Package width (cm): 2.5 | Package height (cm): 1 | Gross weight (kg): 0.006000 | EAN: 7316570253764
