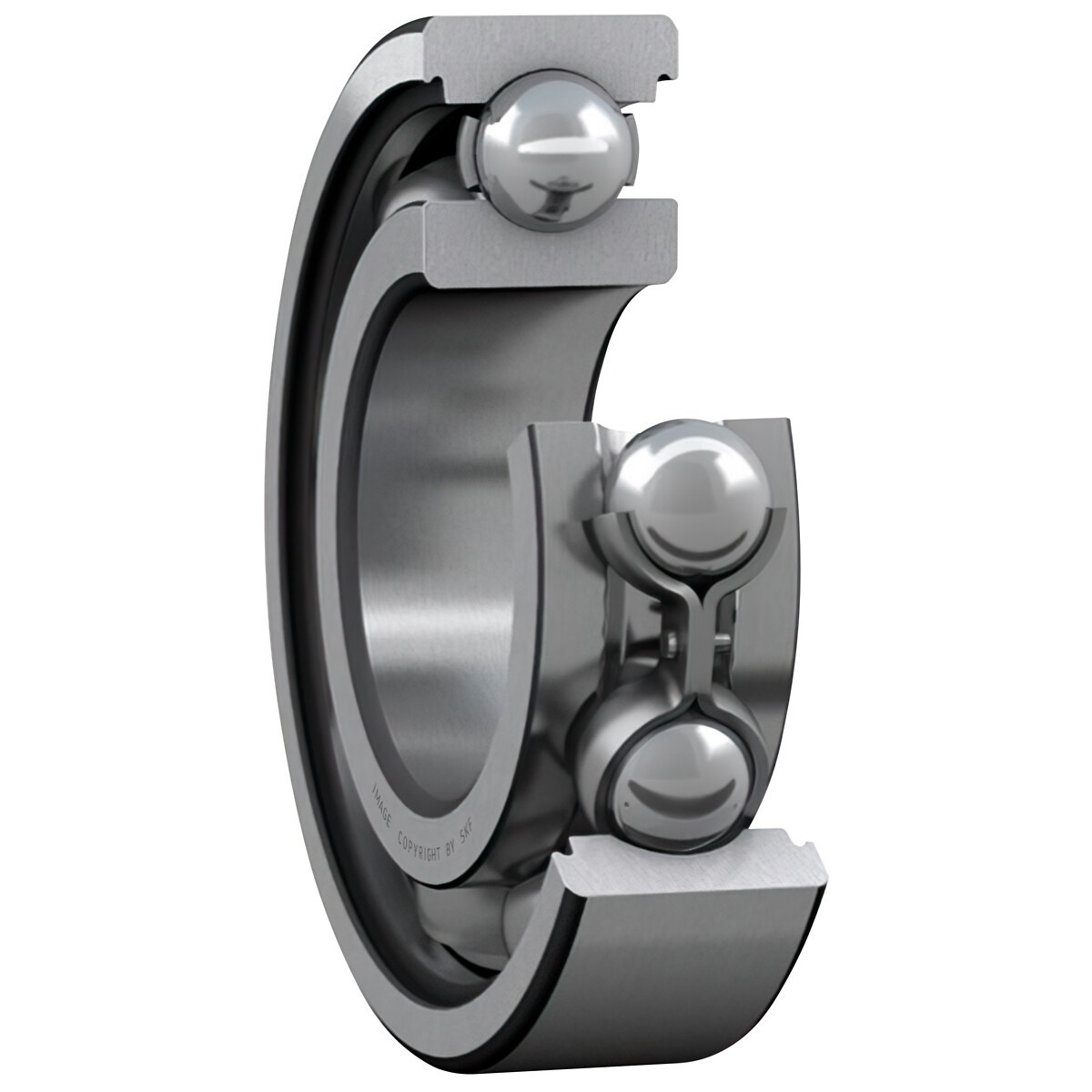

Dziļfrēžu lodīšu gultnis 45x75x10 skf
39 €
✓ Pieejams
Description
bore diameter (d) 45 mm | outer diameter (D) 75 mm | width (B) 10 mm | inner ring shoulder diameter (d1) 55 mm | outer ring shoulder diameter (D1) 65 mm | chamfer dimension (r1,2) min. 0.6 mm | abutment shaft diameter (da) min. 48.2 mm | abutment housing diameter (Da) max. 71.8 mm | fillet radius (ra) max. 0.6 mm | basic dynamic load rating (C) 16.5 kN | basic static load rating (C0) 10.8 kN | fatigue load limit (Pu) 0,52 kN | reference speed 20000 r/min | limiting speed 12000 r/min | calculation factor (kr) 0.02 | calculation factor (f0) 14.2
Attributes
Inner diameter Ø (mm): 45 | Inner diameter Ø (mm): 45.00 | Outer diameter Ø (mm): 75 | Outer diameter Ø (mm): 75.00 | Package length (cm): 8.2 | Package width (cm): 8.5 | Package height (cm): 2.5 | Gross weight (kg): 0.174000 | EAN: 7316577015853
