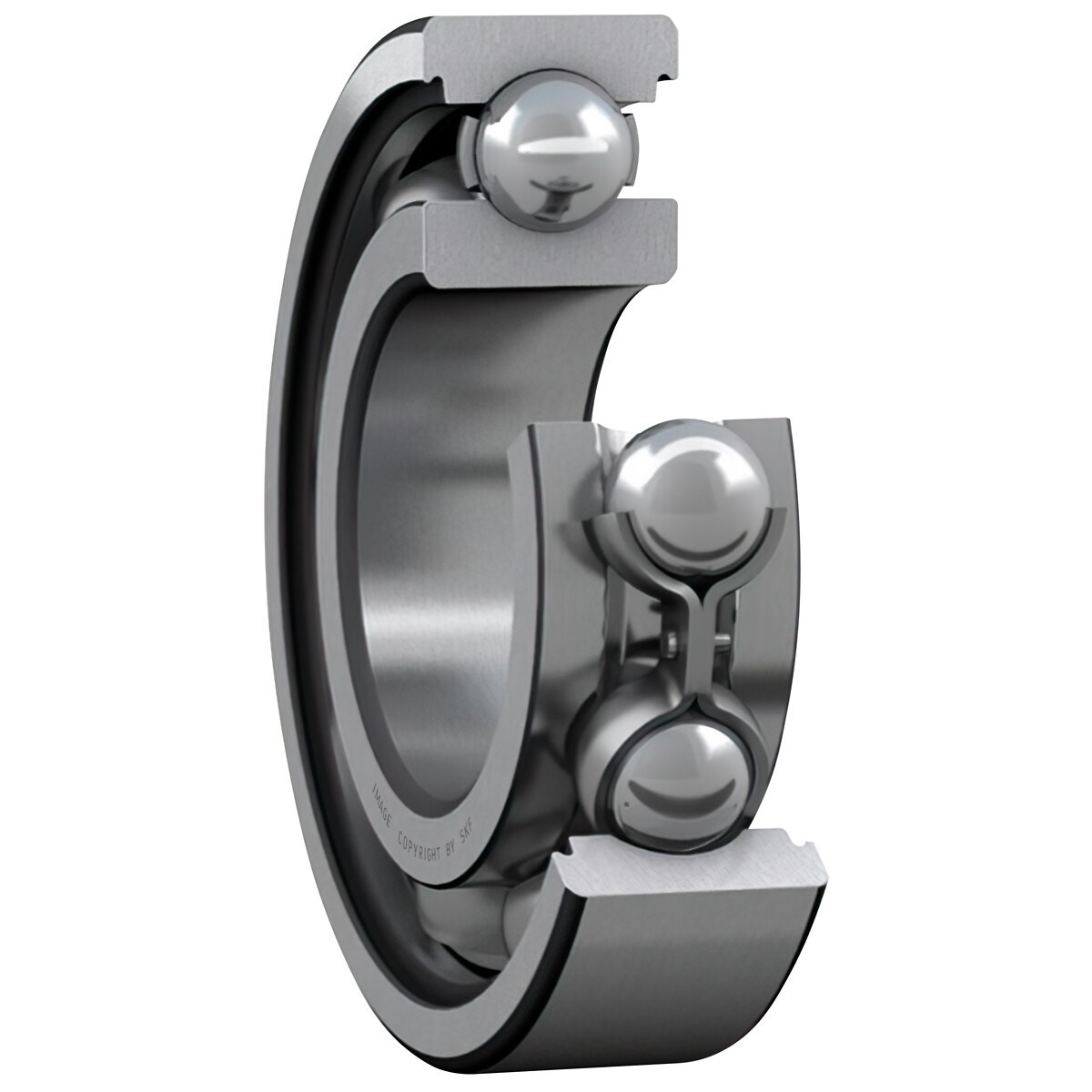

Dziļfrēžu lodīšu gultnis 35x72x17 skf
18 €
✓ Pieejams
Description
bore diameter (d) 35 mm | outer diameter (D) 72 mm | width (B) 17 mm | inner ring shoulder diameter (d1) 46.94 mm | outer ring abutment recess diameter (D2) 62.69 mm | chamfer dimension (r1,2) min. 1.1 mm | abutment shaft diameter (da) min. 42 mm | abutment housing diameter (Da) max. 65 mm | fillet radius (ra) max. 1 mm | basic dynamic load rating (C) 27 kN | basic static load rating (C0) 15.3 kN | fatigue load limit (Pu) 0.655 kN | reference speed 20000 r/min | limiting speed 13000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 13.8
Attributes
Inner diameter Ø (mm): 35 | Inner diameter Ø (mm): 35.00 | Outer diameter Ø (mm): 72 | Outer diameter Ø (mm): 72.00 | Package length (cm): 7.5 | Package width (cm): 7.8 | Package height (cm): 2.2 | Gross weight (kg): 0.295000 | EAN: 7316577067449
