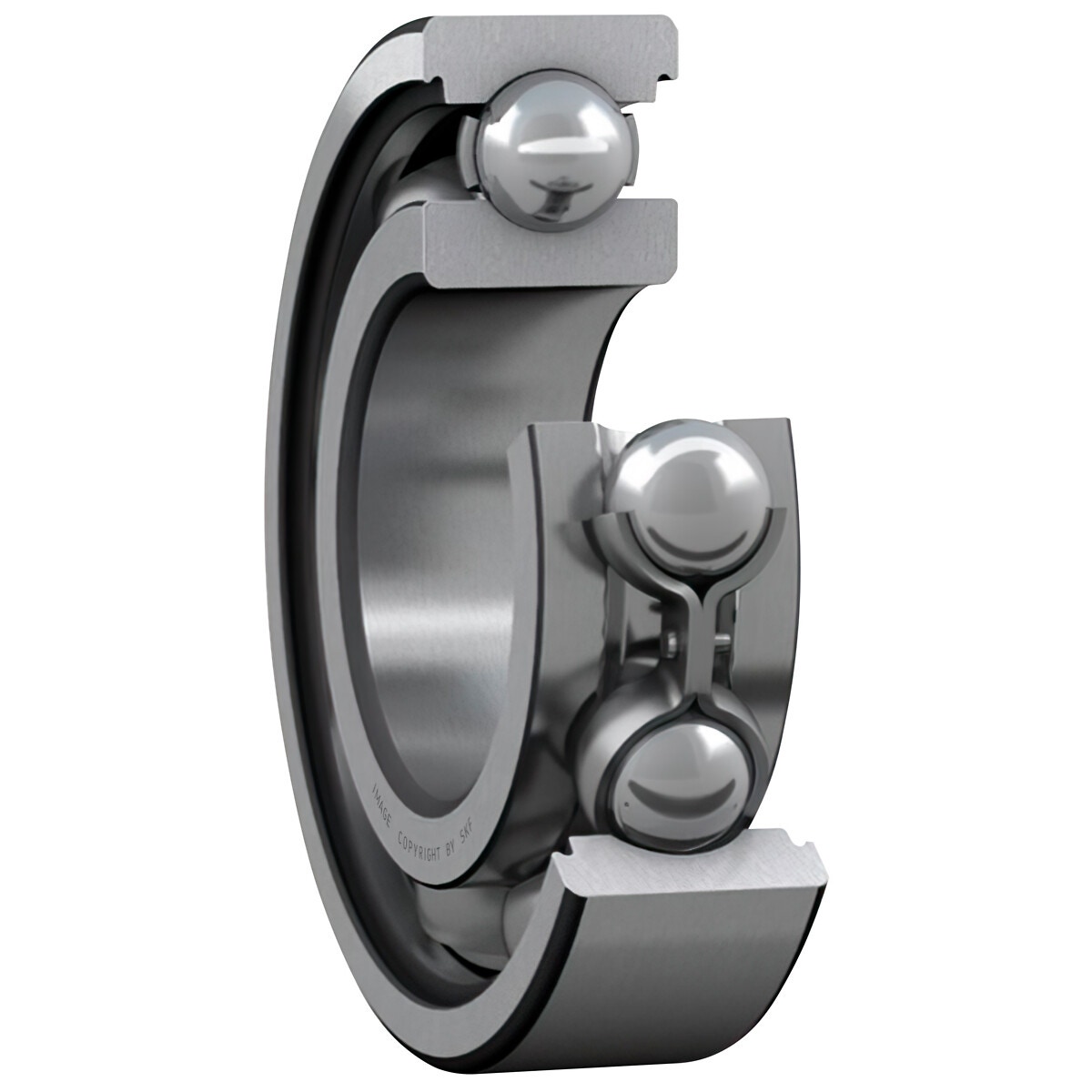

Dziļfrēžu lodīšu gultnis 30x55x9 skf

Description

bore diameter (d) 30 mm | outer diameter (D) 55 mm | width (B) 9 mm | inner ring shoulder diameter (d1) 37.7 mm | outer ring shoulder diameter (D1) 47.3 mm | chamfer dimension (r1,2) min. 0.3 mm | abutment shaft diameter (da) min. 32 mm | abutment housing diameter (Da) max. 53 mm | fillet radius (ra) max. 0.3 mm | basic dynamic load rating (C) 11.9 kN | basic static load rating (C0) 7.35 kN | fatigue load limit (Pu) 0,31 kN | reference speed 28000 r/min | limiting speed 17000 r/min | calculation factor (kr) 0.02 | calculation factor (f0) 15

Attributes

Inner diameter Ø (mm): 30 | Inner diameter Ø (mm): 30.00 | Outer diameter Ø (mm): 55 | Outer diameter Ø (mm): 55.00 | Package length (cm): 6.3 | Package width (cm): 6.5 | Package height (cm): 2.2 | Gross weight (kg): 0.094000 | EAN: 7316576676635
