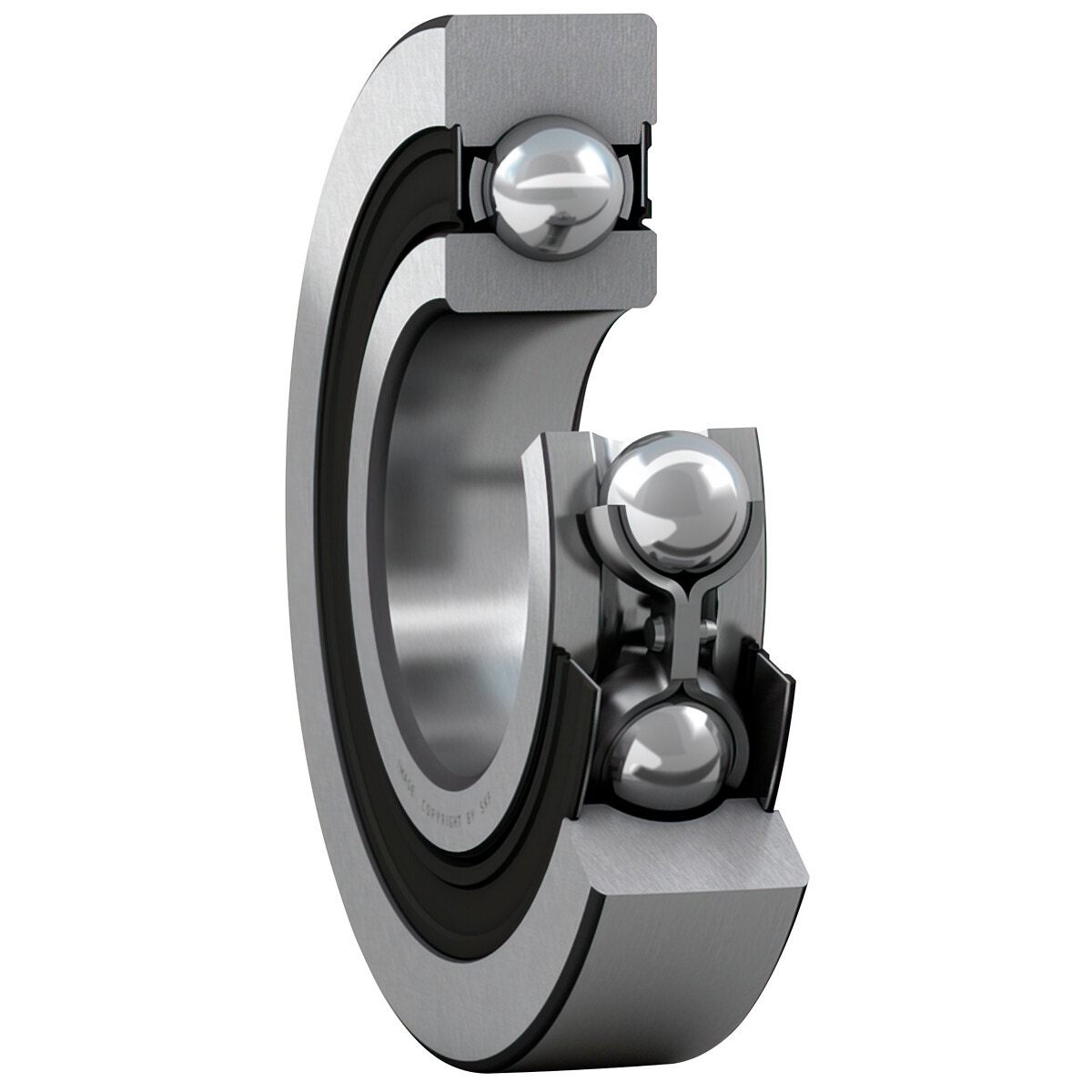

Dziļfrēžu lodīšu gultnis 25x62x15 skf
61 €
✓ Pieejams
Description
outer diameter (D) 62 mm | bore diameter (d) 25 mm | width (B) 15 mm | shoulder/recess diameter inner ring (d1) 34.3 mm | recess diameter outer ring (D1) 46.3 mm | profile running surface (crown) outer ring (R) 400 mm | chamfer dimension (r1,2) min. 1 mm | basic dynamic load rating (C) 13 kN | basic static load rating (C0) 6.8 kN | fatigue load limit (Pu) 0,29 kN | maximum dynamic radial load (Fr) max. 12.9 kN | maximum static radial load (F0r) max. 18.6 kN | limiting speed 6300 r/min | calculation factor (f0) 13.9
Attributes
Inner diameter Ø (mm): 25 | Inner diameter Ø (mm): 25.00 | Outer diameter Ø (mm): 62 | Outer diameter Ø (mm): 62.00 | Package length (cm): 6.4 | Package width (cm): 6.7 | Package height (cm): 2.1 | Gross weight (kg): 0.240000 | EAN: 7316577062185
