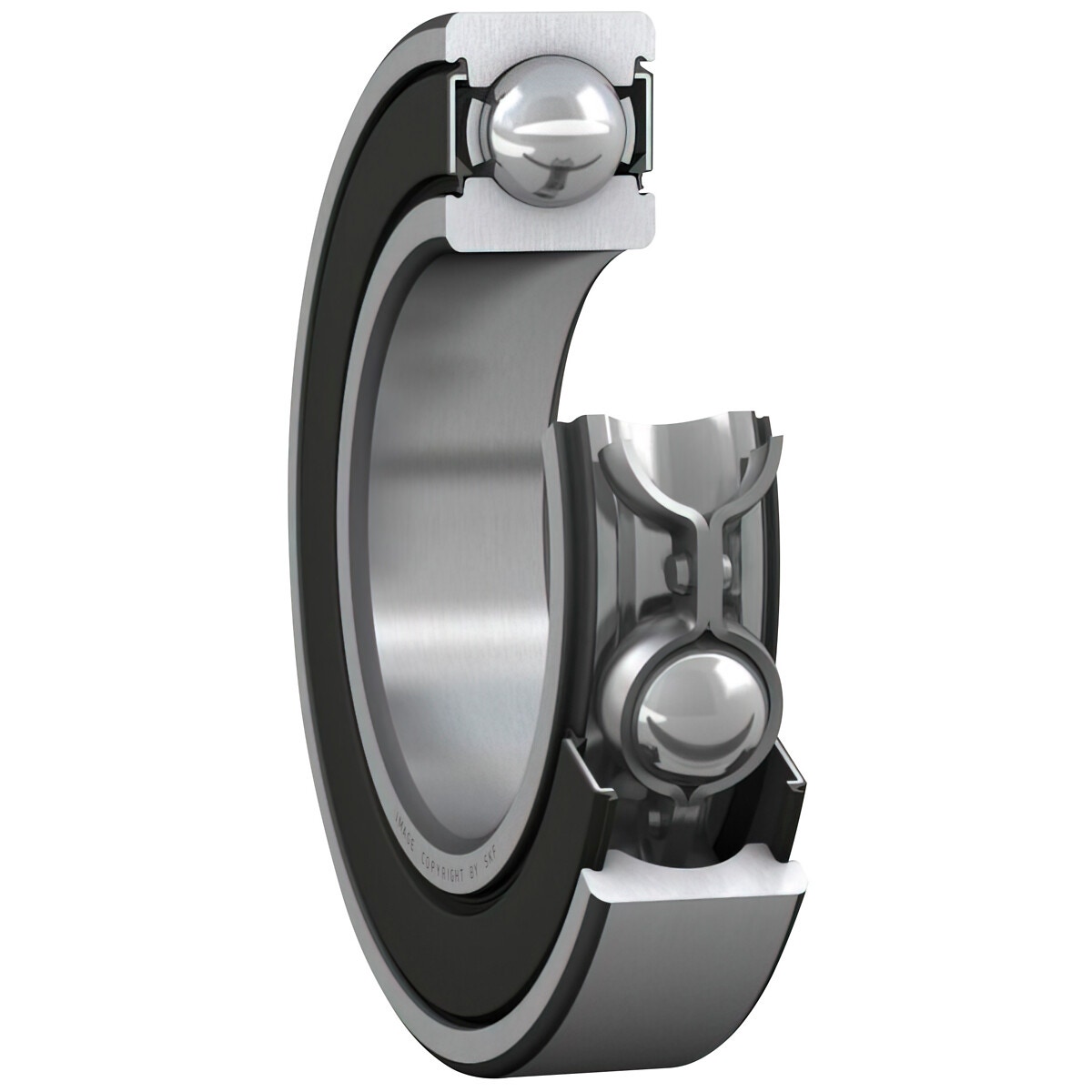

Dziļfrēžu lodīšu gultnis 25x47x12 skf

Description

bore diameter (d) 25 mm | outer diameter (D) 47 mm | width (B) 12 mm | inner ring recess diameter (d2) 29.45 mm | outer ring abutment recess diameter (D2) 42.2 mm | chamfer dimension (r1,2) min. 0.6 mm | abutment shaft diameter (da) min. 28.2 mm | abutment shaft diameter (da) max. 29.5 mm | abutment housing diameter (Da) max. 43.8 mm | fillet radius (ra) max. 0.6 mm | basic dynamic load rating (C) 11.9 kN | basic static load rating (C0) 6.55 kN | fatigue load limit (Pu) 0,275 kN | limiting speed 9500 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 14.3

Attributes

Inner diameter Ø (mm): 25 | Inner diameter Ø (mm): 25.00 | Outer diameter Ø (mm): 47 | Outer diameter Ø (mm): 47.00 | Package length (cm): 5.5 | Package width (cm): 5.7 | Package height (cm): 1.9 | Gross weight (kg): 0.084000 | EAN: 7316571822099
