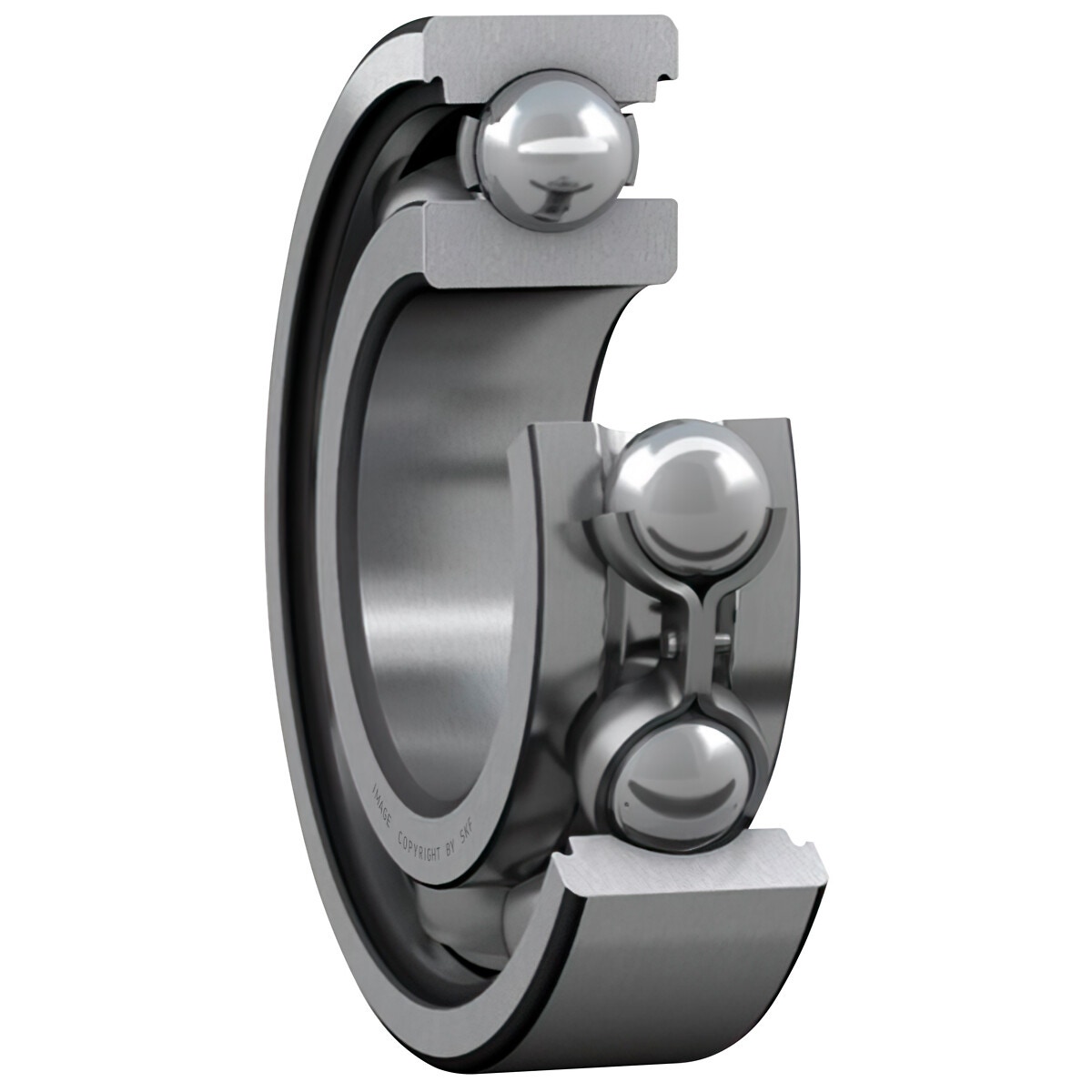

Dziļfrēžu lodīšu gultnis 20x52x15 skf

Description

bore diameter (d) 20 mm | outer diameter (D) 52 mm | width (B) 15 mm | inner ring shoulder diameter (d1) 30.35 mm | recess diameter outer ring (D2) 44.71 mm | chamfer dimension (r1,2) min. 1.1 mm | diameter of shaft abutment (da) min. 27 mm | diameter of housing abutment (da) max. 45 mm | radius of shaft or housing fillet (ra) max. 1 mm | basic dynamic load rating (C) 16.8 kN | basic static static load rating (C0) 7.8 kN | fatigue load limit (Pu) 0.335 kN | reference speed 30000 r/min | limiting speed 19000 r/min | calculation factor (kr) 0.03 | calculation factor (f0) 12

Attributes

Inner diameter Ø (mm): 20 | Inner diameter Ø (mm): 20.00 | Outer diameter Ø (mm): 52 | Outer diameter Ø (mm): 52.00 | Package length (cm): 5.5 | Package width (cm): 5.7 | Package height (cm): 1.8 | Gross weight (kg): 0.145000 | EAN: 7316571124742
