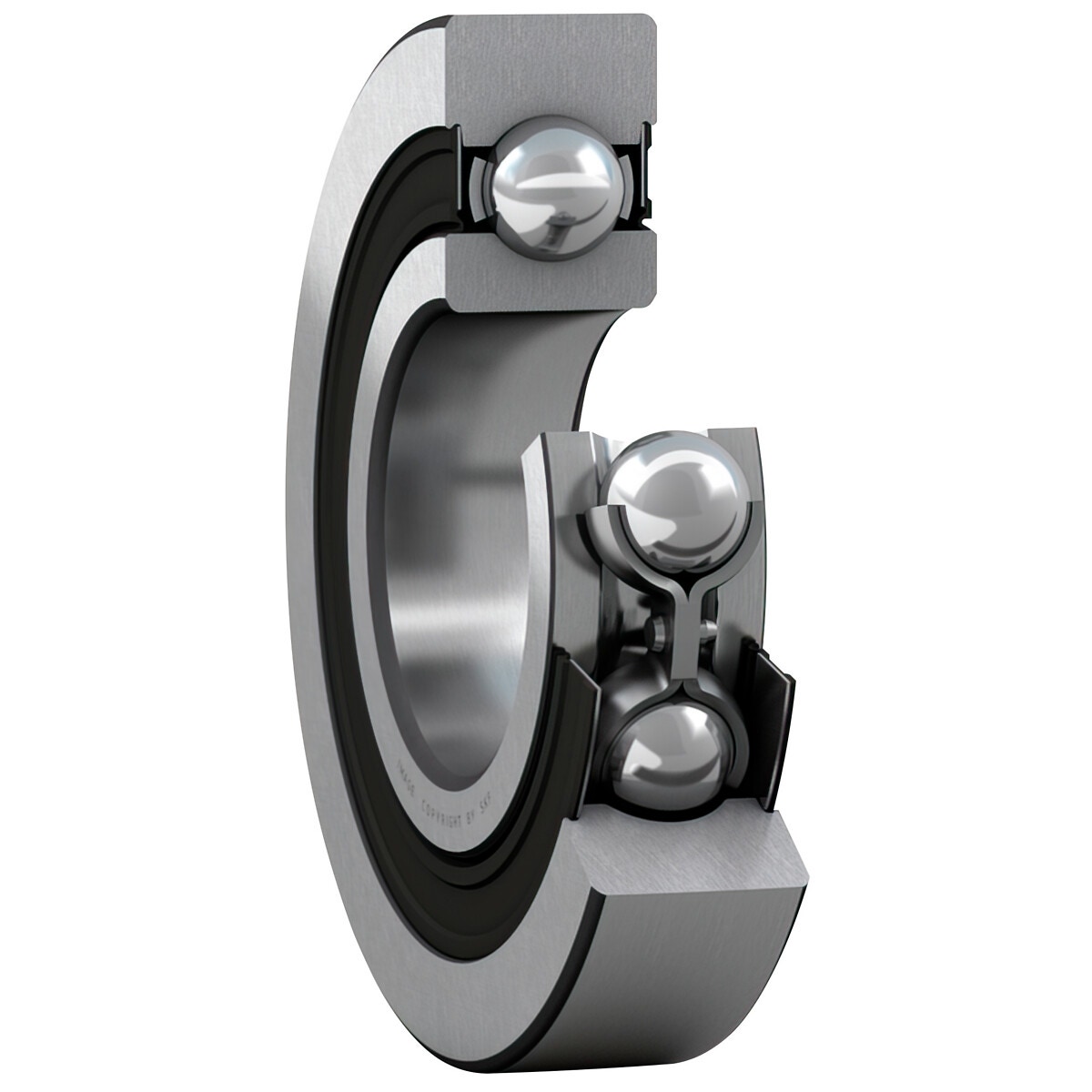

Dziļfrēžu lodīšu gultnis 20x52x14 skf
40 €
✓ Pieejams
Description
outer diameter (D) 52 mm | bore diameter (d) 20 mm | width (B) 14 mm | shoulder/recess diameter inner ring (d1) 28.8 mm | recess diameter outer ring (D1) 40.6 mm | profile running surface (crown) outer ring (R) 400 mm | chamfer dimension (r1,2) min. 1 mm | basic dynamic load rating (C) 11.4 kN | basic static load rating (C0) 5.5 kN | fatigue load limit (Pu) 0,232 kN | maximum dynamic radial load (Fr) max. 7.5 kN | maximum static radial load (F0r) max. 10.6 kN | limiting speed 7000 r/min | calculation factor (f0) 13.1
Attributes
Inner diameter Ø (mm): 20 | Inner diameter Ø (mm): 20.00 | Outer diameter Ø (mm): 52 | Outer diameter Ø (mm): 52.00 | Package length (cm): 5.3 | Package width (cm): 5.7 | Package height (cm): 1.8 | Gross weight (kg): 0.154000 | EAN: 7316577650214
