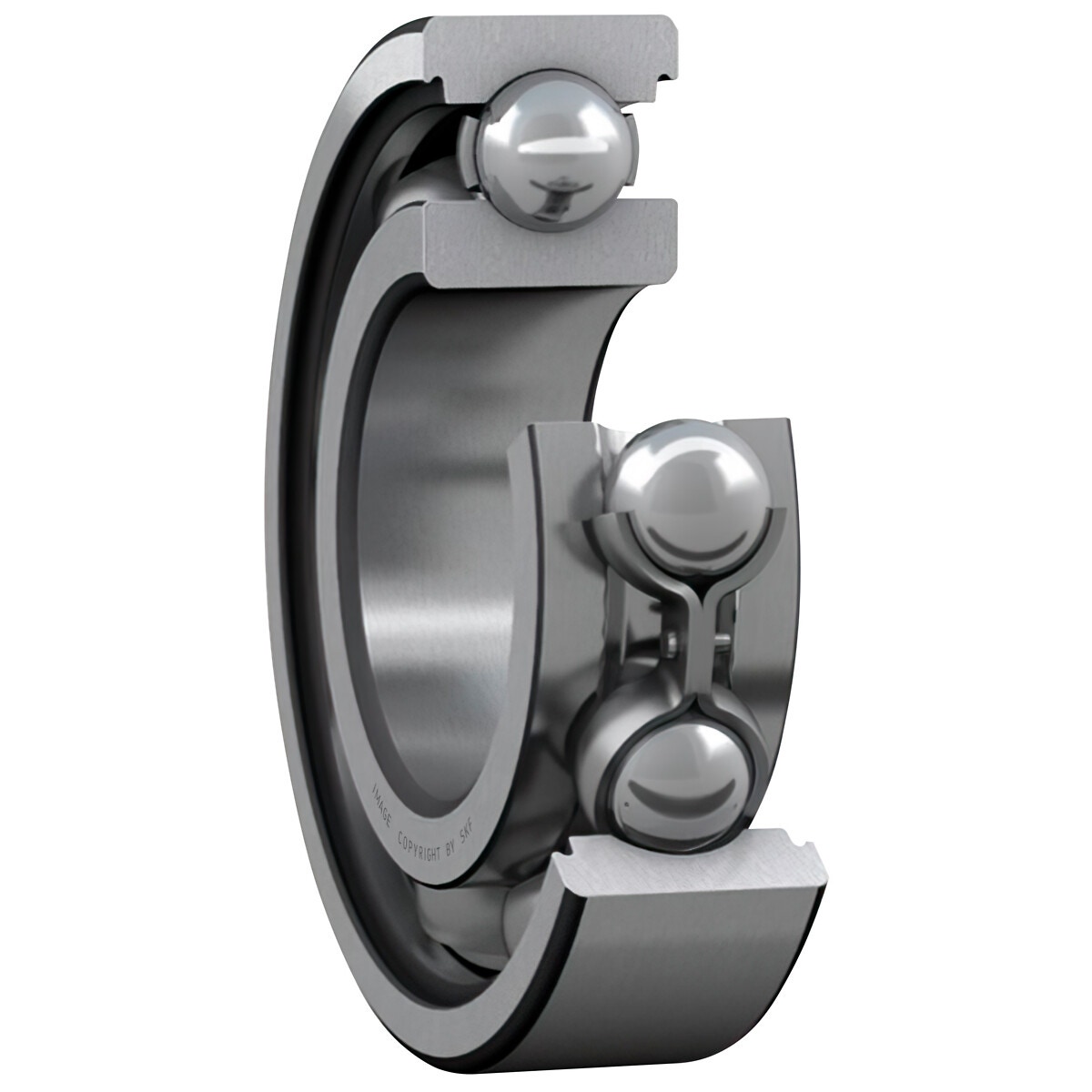

Dziļfrēžu lodīšu gultnis 20x42x12 skf
8,30 €
✓ Pieejams
Description
bore diameter (d) 20 mm | outer diameter (D) 42 mm | width (B) 12 mm | inner ring shoulder diameter (d1) 27.2 mm | outer ring abutment recess diameter (D2) 37.19 mm | chamfer dimension (r1,2) min. 0.6 mm | abutment shaft diameter (da) min. 23.2 mm | abutment housing diameter (Da) max. 38.8 mm | fillet radius (ra) max. 0.6 mm | basic dynamic load rating (C) 9.95 kN | basic static load rating (C0) 5 kN | fatigue load limit (Pu) 0.212 kN | reference speed 38000 r/min | limiting speed 24000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 14
Attributes
Inner diameter Ø (mm): 20 | Inner diameter Ø (mm): 20.00 | Outer diameter Ø (mm): 42 | Outer diameter Ø (mm): 42.00 | Package length (cm): 5.5 | Package width (cm): 5.5 | Package height (cm): 1.9 | Gross weight (kg): 0.070000 | EAN: 7316577740106
