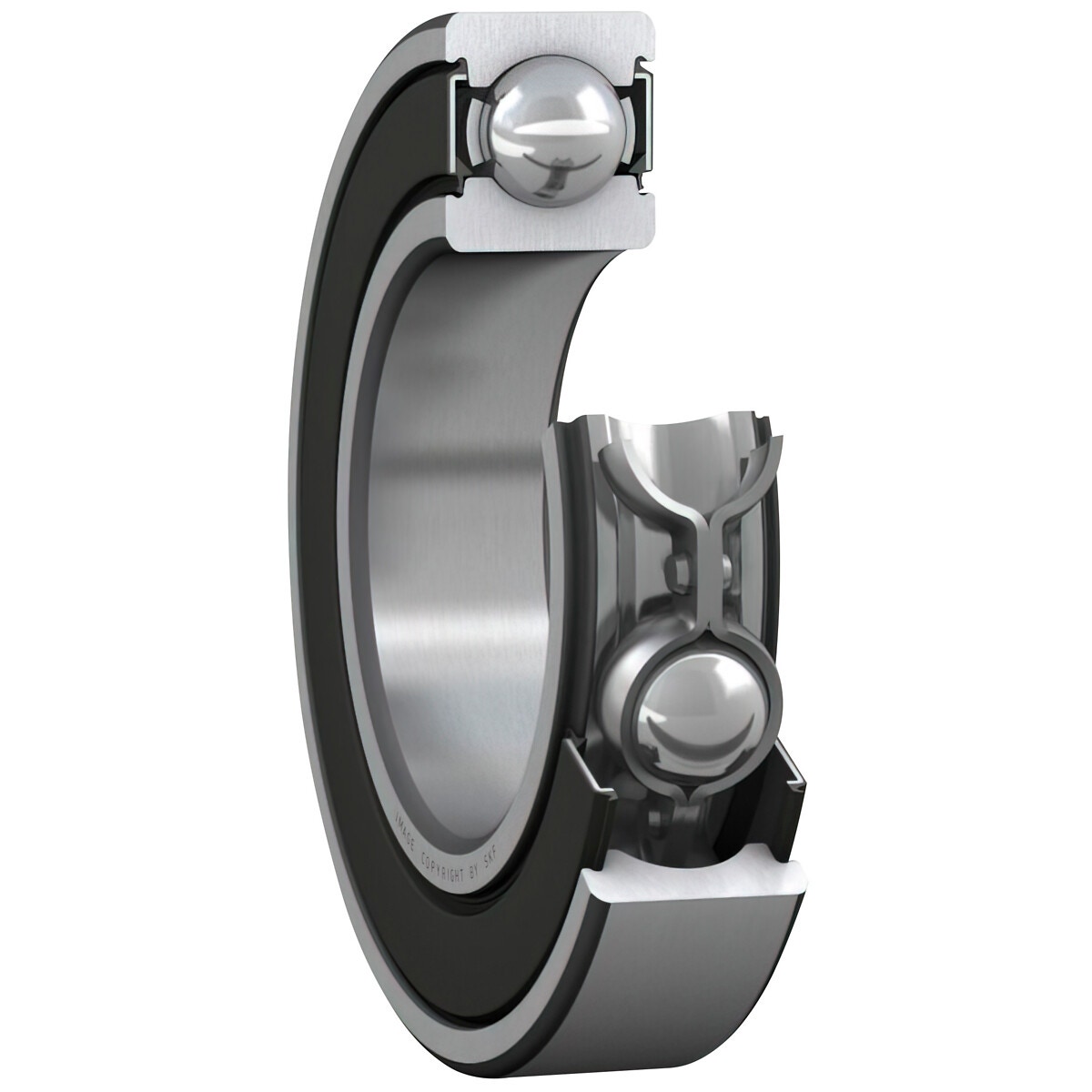

Dziļfrēžu lodīšu gultnis 17x40x12 skf

Description

bore diameter (d) 17 mm | outer diameter (D) 40 mm | width (B) 12 mm | inner ring recess diameter (d2) 21.75 mm | outer ring abutment recess diameter (D2) 34.98 mm | chamfer dimension (r1,2) min. 0.6 mm | abutment shaft diameter (da) min. 21.2 mm | abutment shaft diameter (da) max. 22 mm | abutment housing diameter (Da) max. 35.8 mm | fillet radius (ra) max. 0.6 mm | basic dynamic load rating (C) 9.95 kN | basic static load rating (C0) 4.75 kN | fatigue load limit (Pu) 0,2 kN | limiting speed 12000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 13.1

Attributes

Inner diameter Ø (mm): 17 | Inner diameter Ø (mm): 17.00 | Outer diameter Ø (mm): 40 | Outer diameter Ø (mm): 40.00 | Package length (cm): 4.4 | Package width (cm): 4.6 | Package height (cm): 1.6 | Gross weight (kg): 0.069000 | EAN: 7316571855899
