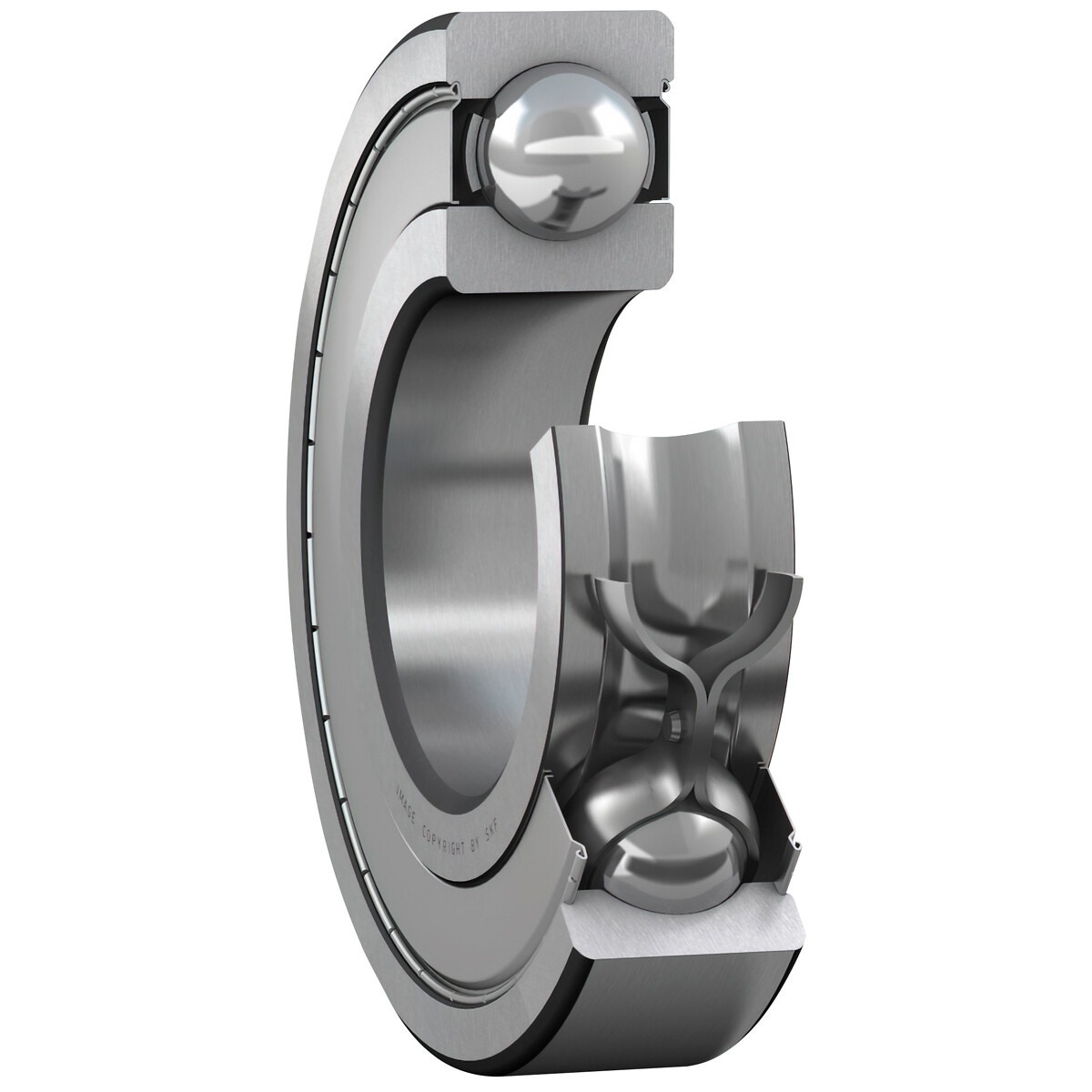

Dziļfrēžu lodīšu gultnis 17x35x8 skf
20 €
✓ Pieejams
Description
bore diameter (d) 17 mm | outer diameter (D) 35 mm | width (B) 8 mm | inner ring shoulder diameter (d1) 23 mm | outer ring abutment recess diameter (D2) 31.2 mm | chamfer dimension (r1,2) min. 0.3 mm | abutment shaft diameter (da) min. 19 mm | abutment shaft diameter (da) max. 22.6 mm | abutment housing diameter (Da) max. 33 mm | fillet radius (ra) max. 0.3 mm | basic dynamic load rating (C) 6.37 kN | basic static load rating (C0) 3.25 kN | fatigue load limit (Pu) 0.137 kN | reference speed 45000 r/min | limiting speed 22000 r/min | calculation factor (kr) 0.02 | calculation factor (f0) 14
Attributes
Inner diameter Ø (mm): 17 | Inner diameter Ø (mm): 17.00 | Outer diameter Ø (mm): 35 | Outer diameter Ø (mm): 35.00 | Package length (cm): 4.4 | Package width (cm): 4.6 | Package height (cm): 1.6 | Gross weight (kg): 0.037000 | EAN: 7316570104837
