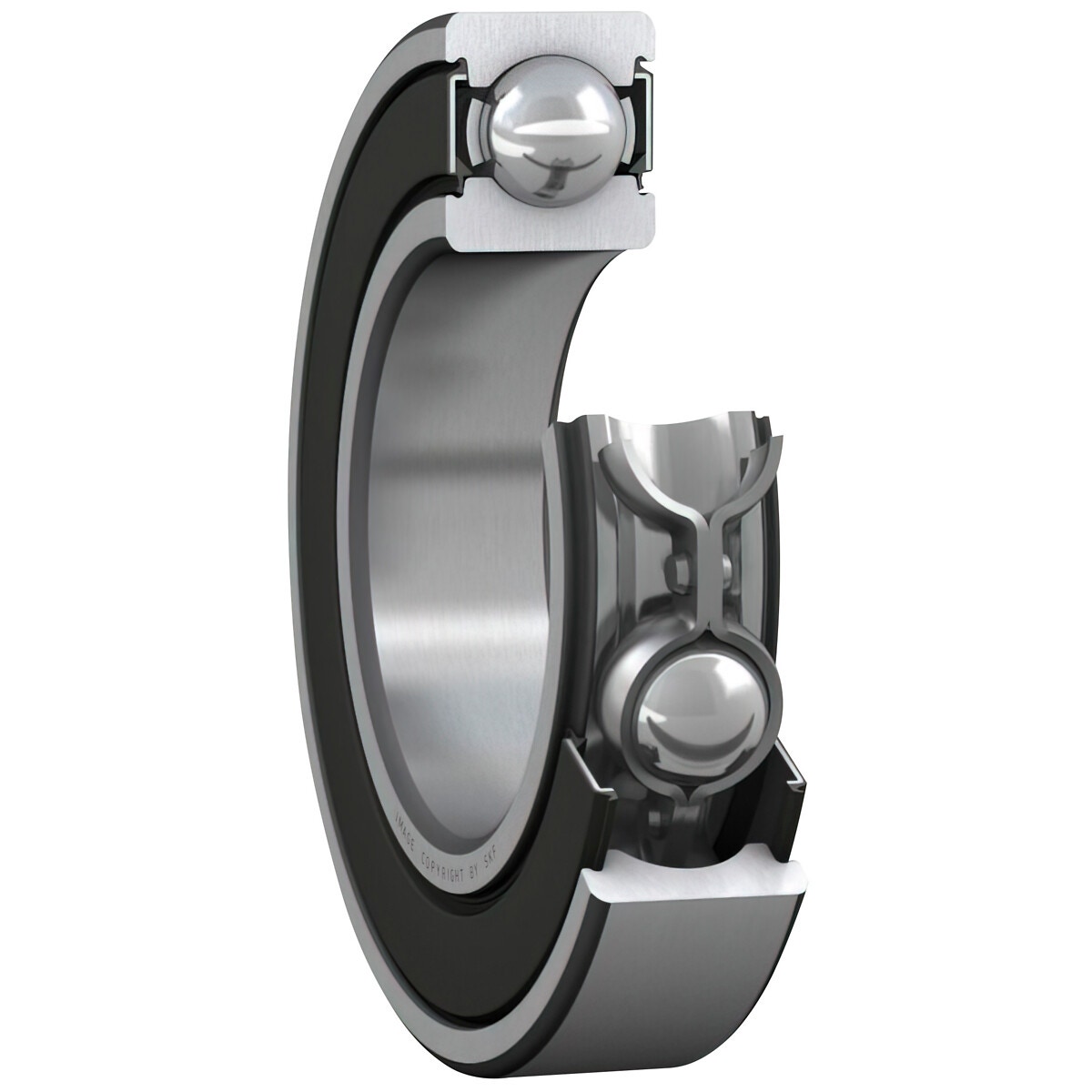

Dziļfrēžu lodīšu gultnis 15x42x13 skf

Description

bore diameter (d) 15 mm | outer diameter (D) 42 mm | width (B) 13 mm | inner ring recess diameter (d2) 20.65 mm | outer ring abutment recess diameter (D2) 36.23 mm | chamfer dimension (r1,2) min. 1 mm | abutment shaft diameter (da) min. 20.6 mm | abutment shaft diameter (da) max. 21 mm | abutment housing diameter (Da) max. 36.4 mm | fillet radius (ra) max. 1 mm | basic dynamic load rating (C) 11.9 kN | basic static load rating (C0) 5.4 kN | fatigue load limit (Pu) 0,228 kN | limiting speed 12000 r/min | calculation factor (kr) 0.03 | calculation factor (f0) 12

Attributes

Inner diameter Ø (mm): 15 | Inner diameter Ø (mm): 15.00 | Outer diameter Ø (mm): 42 | Outer diameter Ø (mm): 42.00 | Package length (cm): 5.4 | Package width (cm): 5.6 | Package height (cm): 1.8 | Gross weight (kg): 0.088000 | EAN: 7316572026342
