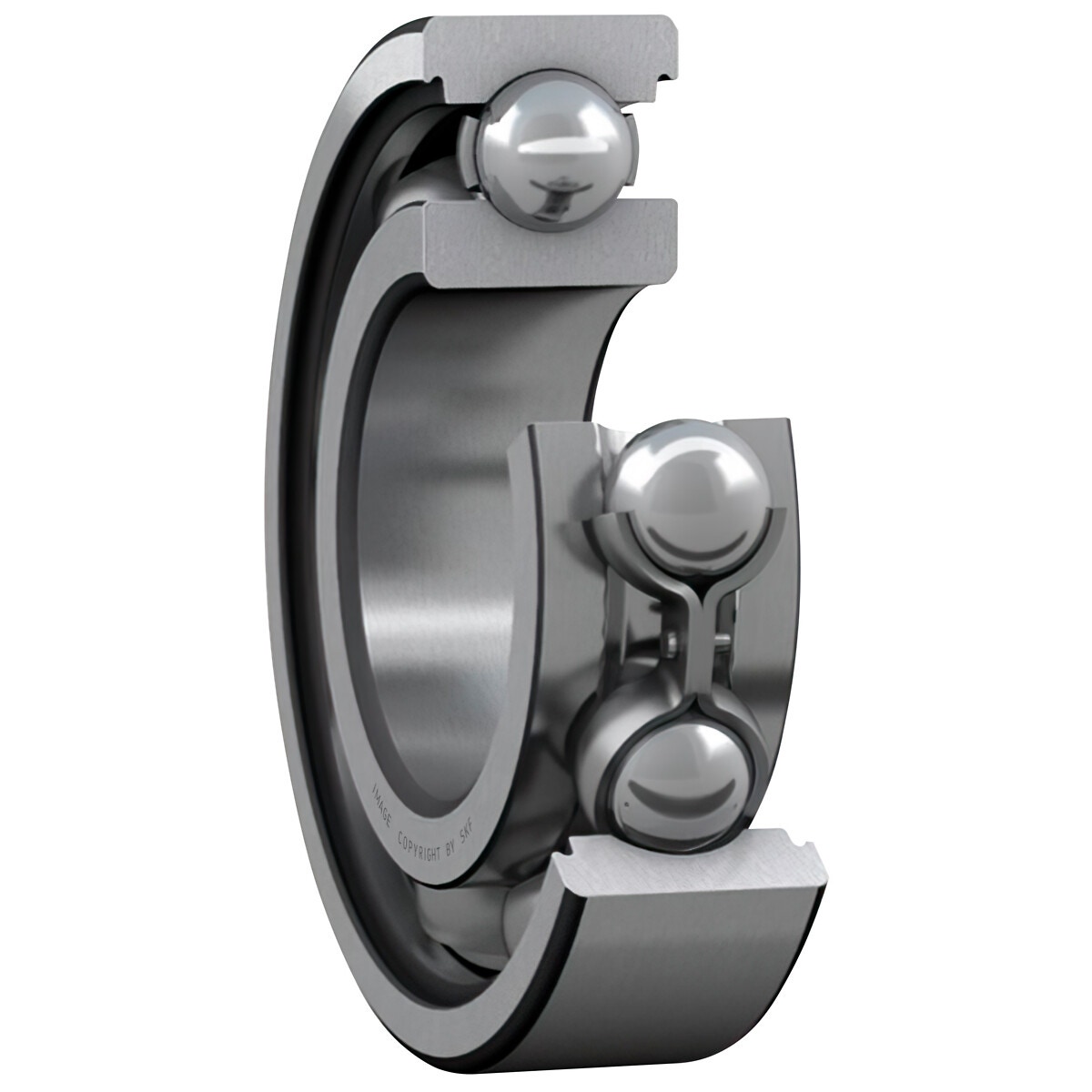

Dziļfrēžu lodīšu gultnis 15x35x11 skf

Description

bore diameter (d) 15 mm | outer diameter (D) 35 mm | width (B) 11 mm | inner ring shoulder diameter (d1) 21.7 mm | recess diameter outer ring (D2) 30.5 mm | chamfer dimension (r1,2) min. 0.6 mm | diameter of shaft abutment (da) min. 19.2 mm | diameter of housing abutment (da) max. 30.8 mm | radius of shaft or housing fillet (ra) max. 0.6 mm | basic dynamic load rating (C) 8.06 kN | basic static static load rating (C0) 3.75 kN | fatigue load limit (Pu) 0.16 kN | reference speed 43000 r/min | limiting speed 28000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 13

Attributes

Inner diameter Ø (mm): 15 | Inner diameter Ø (mm): 15.00 | Outer diameter Ø (mm): 35 | Outer diameter Ø (mm): 35.00 | Package length (cm): 4.3 | Package width (cm): 4.6 | Package height (cm): 1.7 | Gross weight (kg): 0.048000 | EAN: 7316577090010
