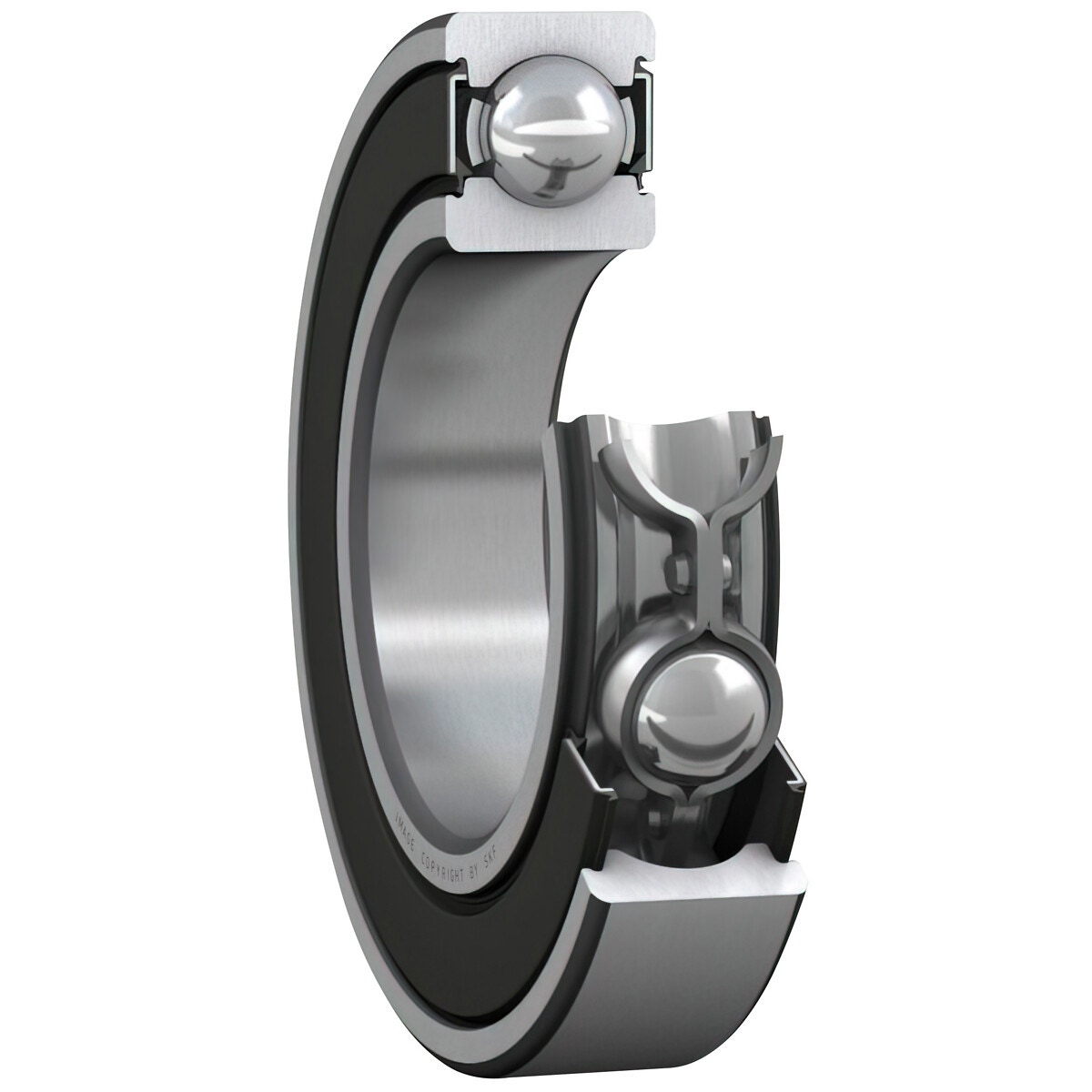

Dziļfrēžu lodīšu gultnis 15x32x9 skf

Description

bore diameter (d) 15 mm | outer diameter (D) 32 mm | width (B) 9 mm | inner ring recess diameter (d2) 18.3 mm | outer ring abutment recess diameter (D2) 28.2 mm | chamfer dimension (r1,2) min. 0.3 mm | abutment shaft diameter (da) min. 17 mm | abutment shaft diameter (da) max. 18.5 mm | abutment housing diameter (Da) max. 30 mm | fillet radius (ra) max. 0.3 mm | basic dynamic load rating (C) 5.85 kN | basic static load rating (C0) 2.85 kN | fatigue load limit (Pu) 0,12 kN | limiting speed 14000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 14

Attributes

Inner diameter Ø (mm): 15 | Inner diameter Ø (mm): 15.00 | Outer diameter Ø (mm): 32 | Outer diameter Ø (mm): 32.00 | Package length (cm): 4.3 | Package width (cm): 4.6 | Package height (cm): 1.6 | Gross weight (kg): 0.034000 | EAN: 7316571814643
