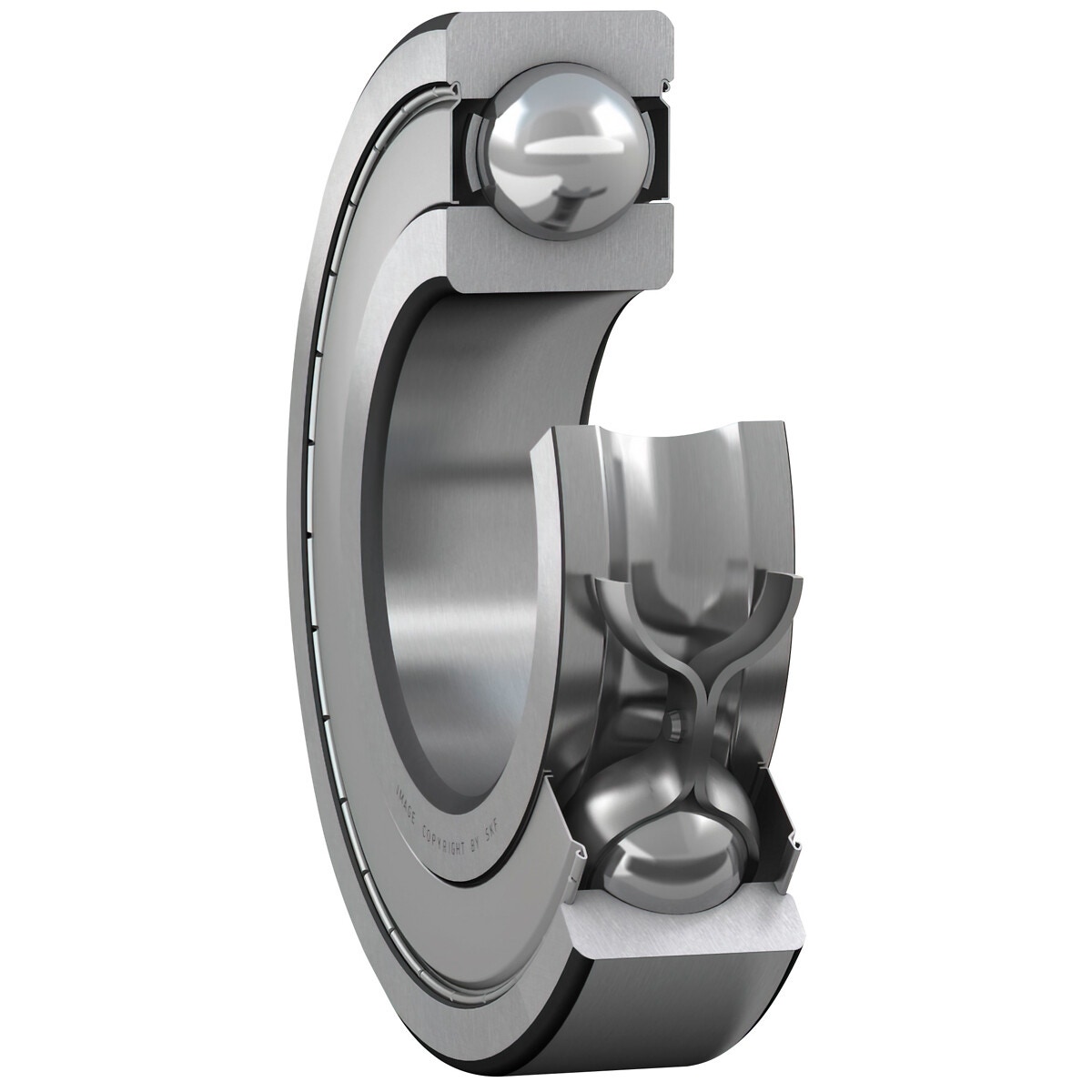

Dziļfrēžu lodīšu gultnis 15x32x8 skf
19 €
✓ Pieejams
Description
bore diameter (d) 15 mm | outer diameter (D) 32 mm | width (B) 8 mm | inner ring shoulder diameter (d1) 20.5 mm | outer ring abutment recess diameter (D2) 28.2 mm | chamfer dimension (r1,2) min. 0.3 mm | abutment shaft diameter (da) min. 17 mm | abutment shaft diameter (da) max. 20.1 mm | abutment housing diameter (Da) max. 30 mm | fillet radius (ra) max. 0.3 mm | basic dynamic load rating (C) 5.85 kN | basic static load rating (C0) 2.85 kN | fatigue load limit (Pu) 0,12 kN | reference speed 50000 r/min | limiting speed 26000 r/min | calculation factor (kr) 0.02 | calculation factor (f0) 14
Attributes
Inner diameter Ø (mm): 15 | Inner diameter Ø (mm): 15.00 | Outer diameter Ø (mm): 32 | Outer diameter Ø (mm): 32.00 | Package length (cm): 4.4 | Package width (cm): 4.6 | Package height (cm): 1.7 | Gross weight (kg): 0.032000 | EAN: 7316577015822
