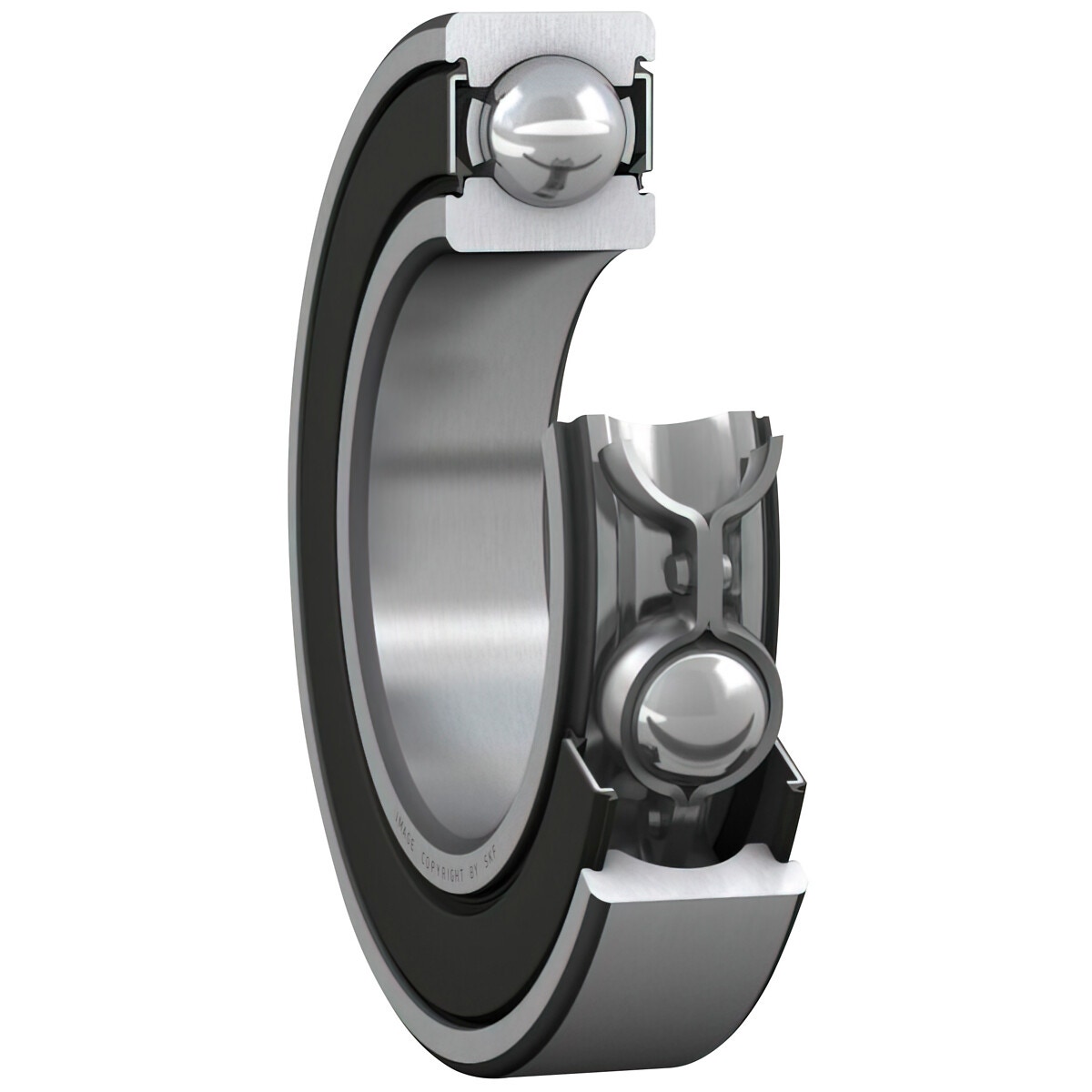

Dziļfrēžu lodīšu gultnis 12x37x12 skf

Description

bore diameter (d) 12 mm | outer diameter (D) 37 mm | width (B) 12 mm | inner ring recess diameter (d2) 17.5 mm | outer ring abutment recess diameter (D2) 31.48 mm | chamfer dimension (r1,2) min. 1 mm | abutment shaft diameter (da) min. 17.6 mm | abutment shaft diameter (da) max. 17.8 mm | abutment housing diameter (Da) max. 31.4 mm | fillet radius (ra) max. 1 mm | basic dynamic load rating (C) 10.1 kN | basic static load rating (C0) 4.15 kN | fatigue load limit (Pu) 0,176 kN | limiting speed 14000 r/min | calculation factor (kr) 0.03 | calculation factor (f0) 11

Attributes

Inner diameter Ø (mm): 12 | Inner diameter Ø (mm): 12.00 | Outer diameter Ø (mm): 37 | Outer diameter Ø (mm): 37.00 | Package length (cm): 4.4 | Package width (cm): 4.6 | Package height (cm): 1.6 | Gross weight (kg): 0.064000 | EAN: 7316571821450
