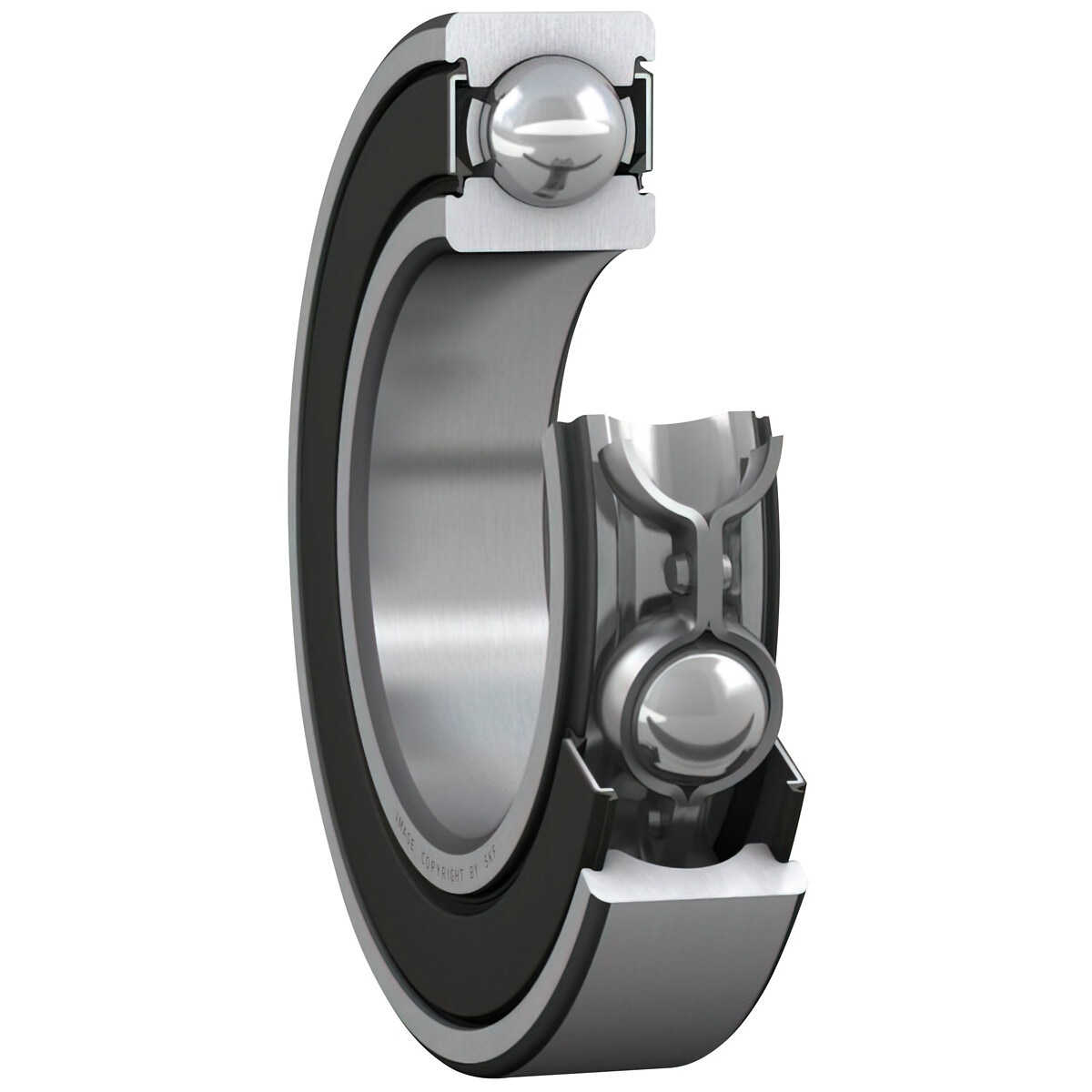

Dziļfrēžu lodīšu gultnis 12x32x10 skf

Description

bore diameter (d) 12 mm | outer diameter (D) 32 mm | width (B) 10 mm | inner ring recess diameter (d2) 16.2 mm | outer ring abutment recess diameter (D2) 27.34 mm | chamfer dimension (r1,2) min. 0.6 mm | abutment shaft diameter (da) min. 16.2 mm | abutment shaft diameter (da) max. 16.5 mm | abutment housing diameter (Da) max. 27.8 mm | fillet radius (ra) max. 0.6 mm | basic dynamic load rating (C) 7.28 kN | basic static load rating (C0) 3.1 kN | fatigue load limit (Pu) 0,132 kN | limiting speed 15000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 12

Attributes

Inner diameter Ø (mm): 12 | Inner diameter Ø (mm): 12.00 | Outer diameter Ø (mm): 32 | Outer diameter Ø (mm): 32.00 | Package length (cm): 4.4 | Package width (cm): 4.7 | Package height (cm): 1.6 | Gross weight (kg): 0.040000 | EAN: 7316571844749
