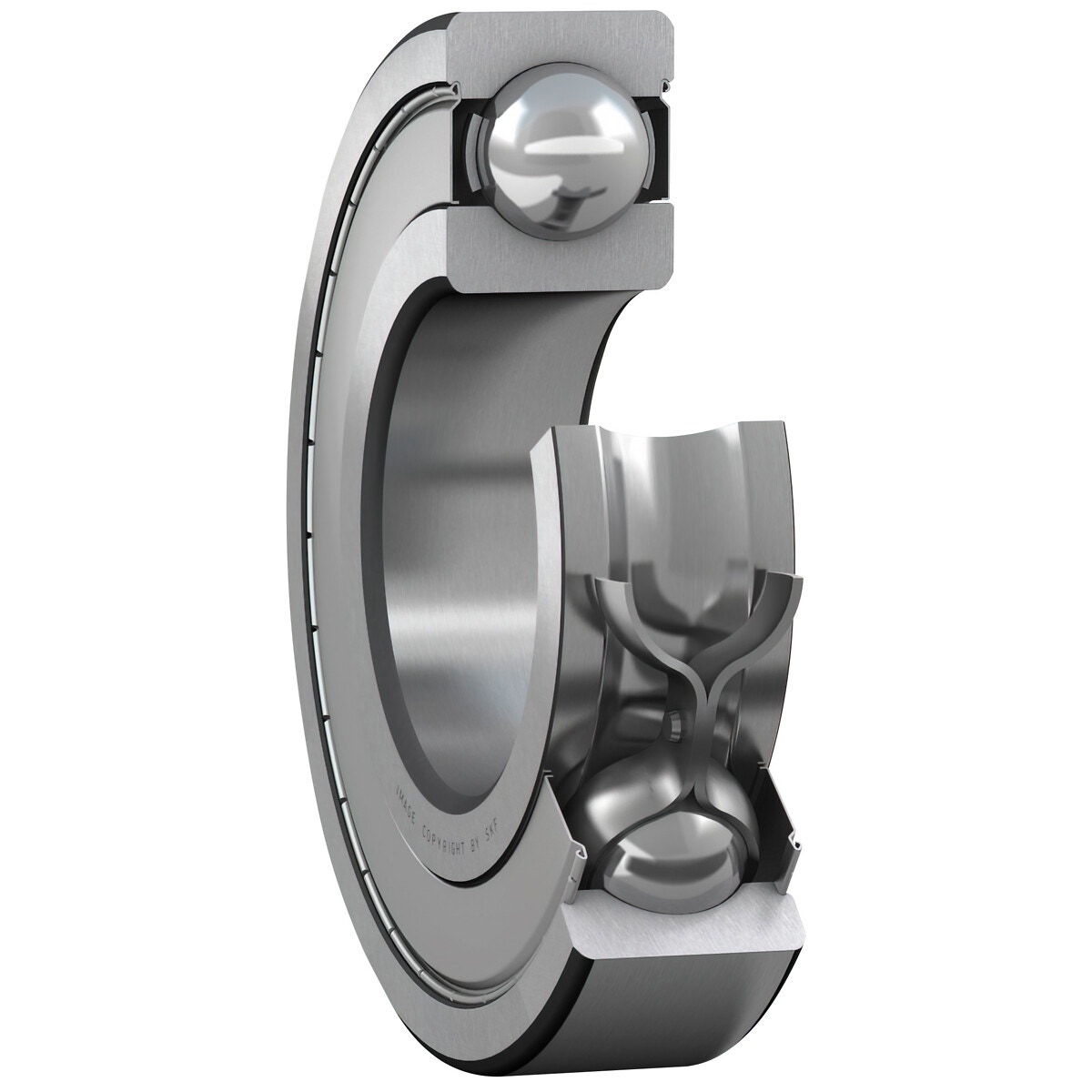

Dziļfrēžu lodīšu gultnis 12x30x8 skf
23,50 €
✓ Pieejams
Description
bore diameter (d) 12 mm | outer diameter (D) 30 mm | width (B) 8 mm | inner ring shoulder diameter (d1) 17 mm | outer ring abutment recess diameter (D2) 24.72 mm | chamfer dimension (r1,2) min. 0.3 mm | abutment shaft diameter (da) min. 14.4 mm | abutment shaft diameter (da) max. 16.6 mm | abutment housing diameter (Da) max. 27.6 mm | fillet radius (ra) max. 0.3 mm | basic dynamic load rating (C) 5.07 kN | basic static load rating (C0) 2.36 kN | fatigue load limit (Pu) 0.1 kN | reference speed 56000 r/min | limiting speed 28000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 13
Attributes
Inner diameter Ø (mm): 12 | Inner diameter Ø (mm): 12.00 | Outer diameter Ø (mm): 30 | Outer diameter Ø (mm): 30.00 | Package length (cm): 3 | Package width (cm): 3 | Package height (cm): 1 | Gross weight (kg): 0.029000 | EAN: 7316577016058
