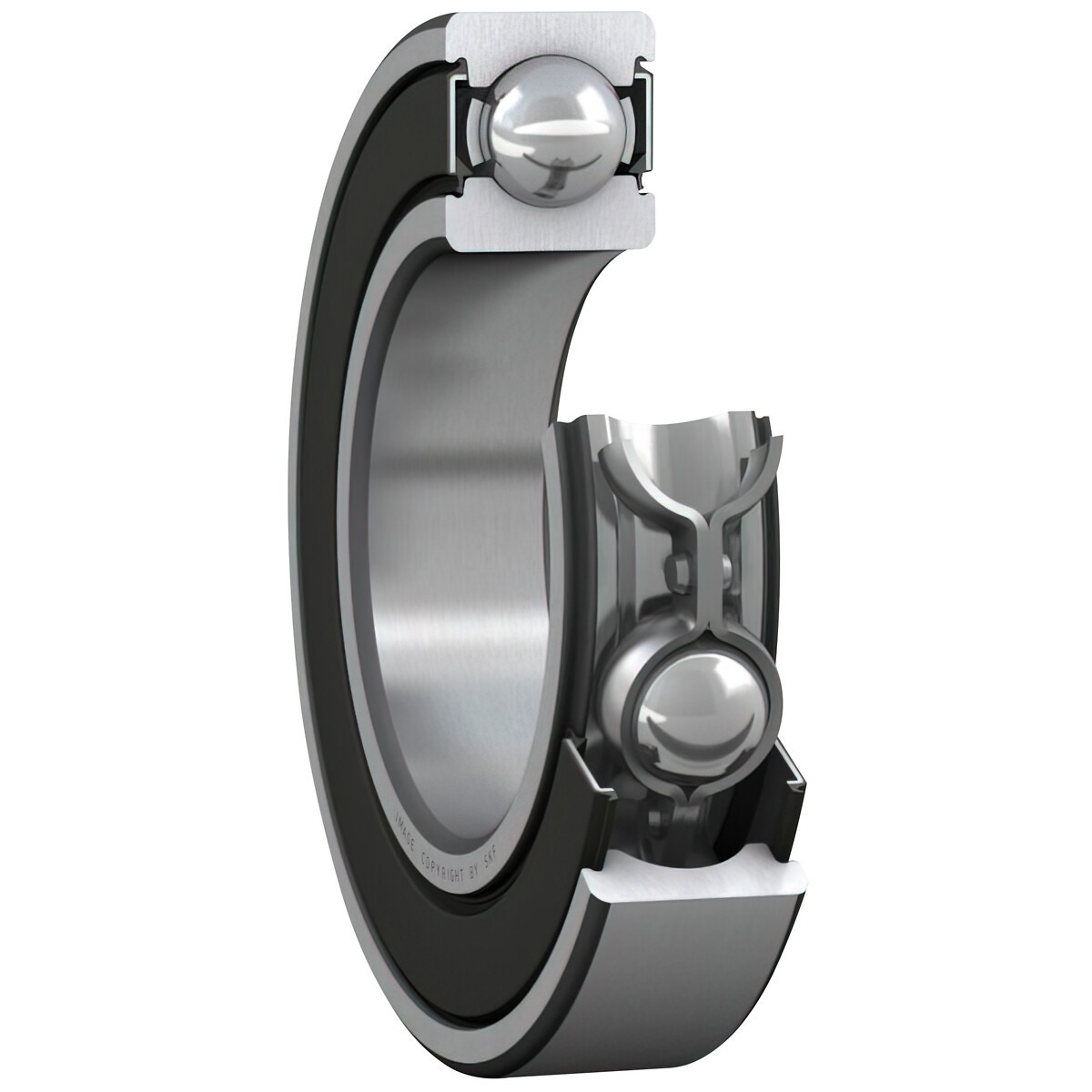

Dziļfrēžu lodīšu gultnis 10x30x9 skf

Description

bore diameter (d) 10 mm | outer diameter (D) 30 mm | width (B) 9 mm | inner ring recess diameter (d2) 15.07 mm | outer ring abutment recess diameter (D2) 24.72 mm | chamfer dimension (r1,2) min. 0.6 mm | abutment shaft diameter (da) min. 14.2 mm | abutment shaft diameter (da) max. 15 mm | abutment housing diameter (Da) max. 25.8 mm | fillet radius (ra) max. 0.6 mm | basic dynamic load rating (C) 5.4 kN | basic static load rating (C0) 2.36 kN | fatigue load limit (Pu) 0.1 kN | limiting speed 17000 r/min | calculation factor (kr) 0.025 | calculation factor (f0) 13

Attributes

Inner diameter Ø (mm): 10 | Inner diameter Ø (mm): 10.00 | Outer diameter Ø (mm): 30 | Outer diameter Ø (mm): 30.00 | Package length (cm): 3 | Package width (cm): 3 | Package height (cm): 1 | Gross weight (kg): 0.033000 | EAN: 7316571818672
