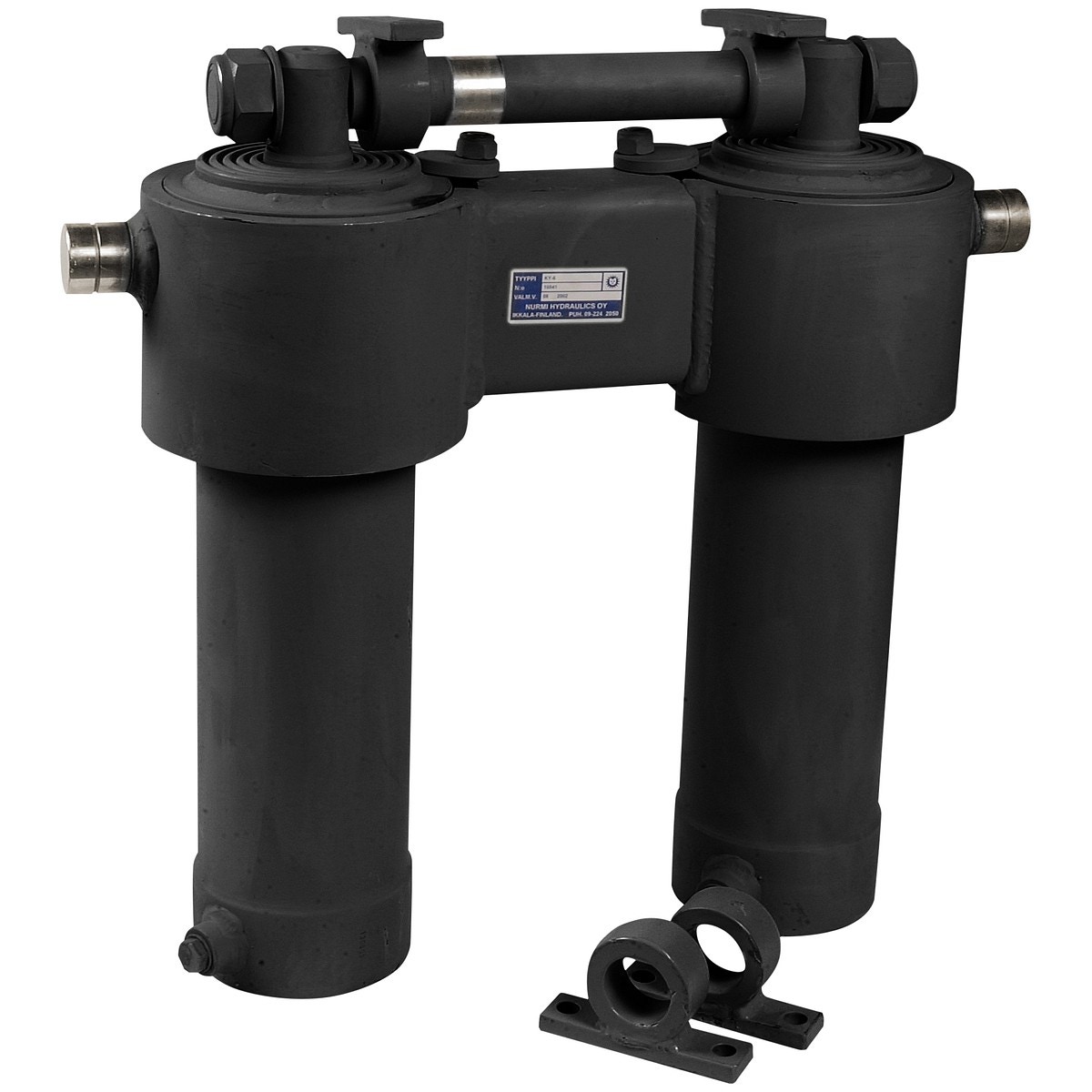

DUBULTĀ PAŠIZGĀZĒJA 2X11TN 2310/142

Description

high quality Finnish product made by the biggest manufacturer in Nordic countries | cylinder tubes: cold-rolled high-quality polished tube (note! the tube is not coated, so it is not recommended for use in e.g. trucks and it is not recommended to leave the tipper upright position for a long period) | gaskets: high-quality PUR gaskets and wipers, wide guide rings support the structure and prevent seizing | all cylinders have the same installation length, which means all cylinders can be exchanged | includes fixing accessory | connection thread R 1/2" | pin size 40 mm, length 35 mm, total width 580 mm | casing Ø 142 mm | stages Ø 125, 110, 95, 80, 65, 50 mm | stroke 2310 mm | oil volume 30.3 l | max. bed length 6.0 m | max. operating pressure 210 bar | force pressure 160 bar 2 x 11 ton | measure L1 2400 mm

Attributes

Package length (cm): 50 | Package width (cm): 19 | Package height (cm): 54.5 | Gross weight (kg): 113.000000 | EAN: 6418914009387
