DIVVIETĪGS PAŠIZGĀZĒJS 2X12TN 2695/165

Description

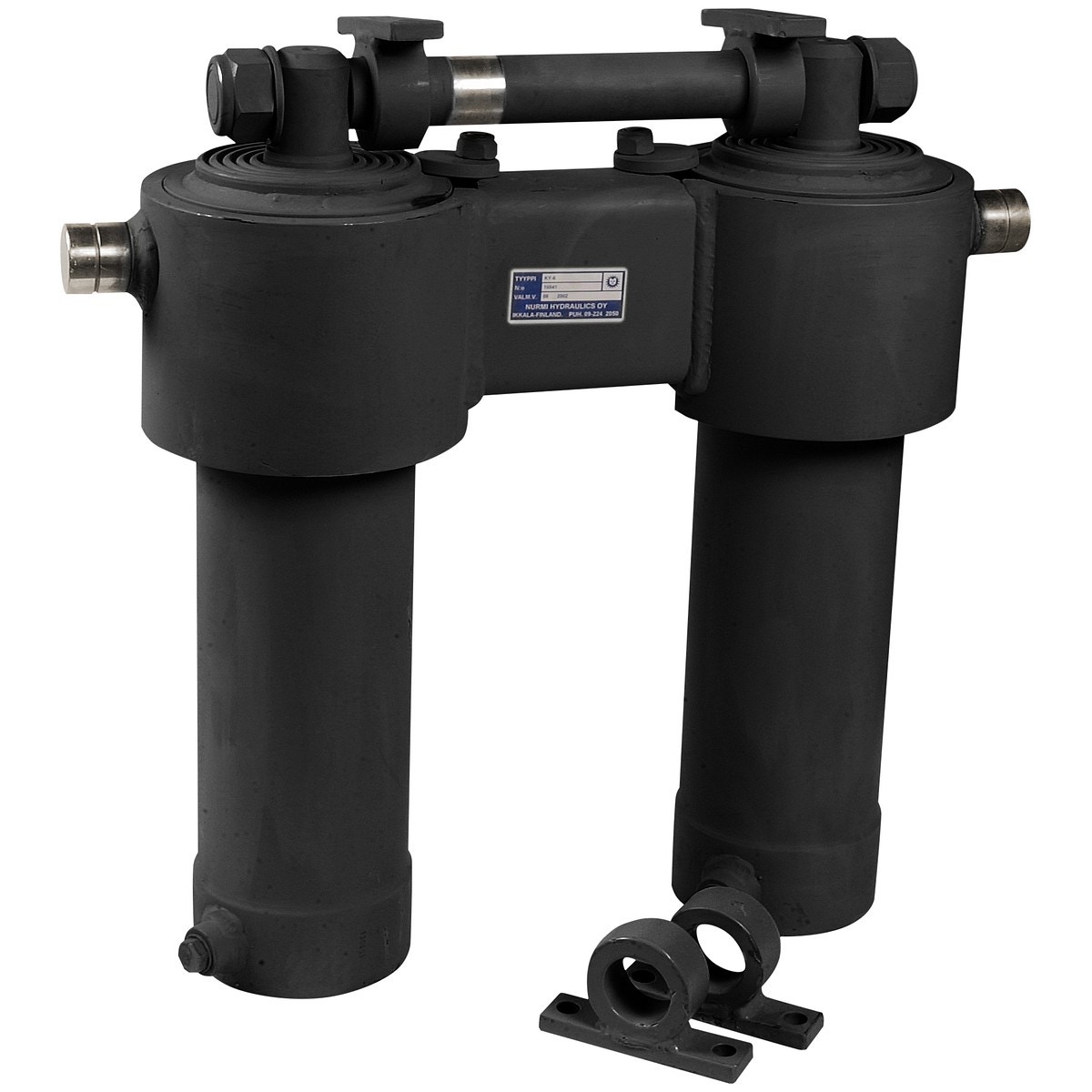

high quality Finnish product made by the biggest manufacturer in Nordic countries | cylinder tubes: cold-rolled high-quality polished tube (note! the tube is not coated, so it is not recommended for use in e.g. trucks and it is not recommended to leave the tipper upright position for a long period) | gaskets: high-quality PUR gaskets and wipers, wide guide rings support the structure and prevent seizing | all cylinders have the same installation length, which means all cylinders can be exchanged | includes fixing accessory | connection thread R 1/2" | pin size 50 mm, length 35 mm, total width 620 mm | casing Ø 165 mm | stages Ø 142, 125, 110, 95, 80, 65, 50 mm | stroke 2695 mm | oil volume 42.6 l | max. bed length 7.0 m | max. operating pressure 210 bar | force pressure 160 bar 2 x 12 ton | measure L1 2800 mm

Attributes

Package length (cm): 54 | Package width (cm): 23 | Package height (cm): 54 | Gross weight (kg): 149.000000 | EAN: 6418914700338
