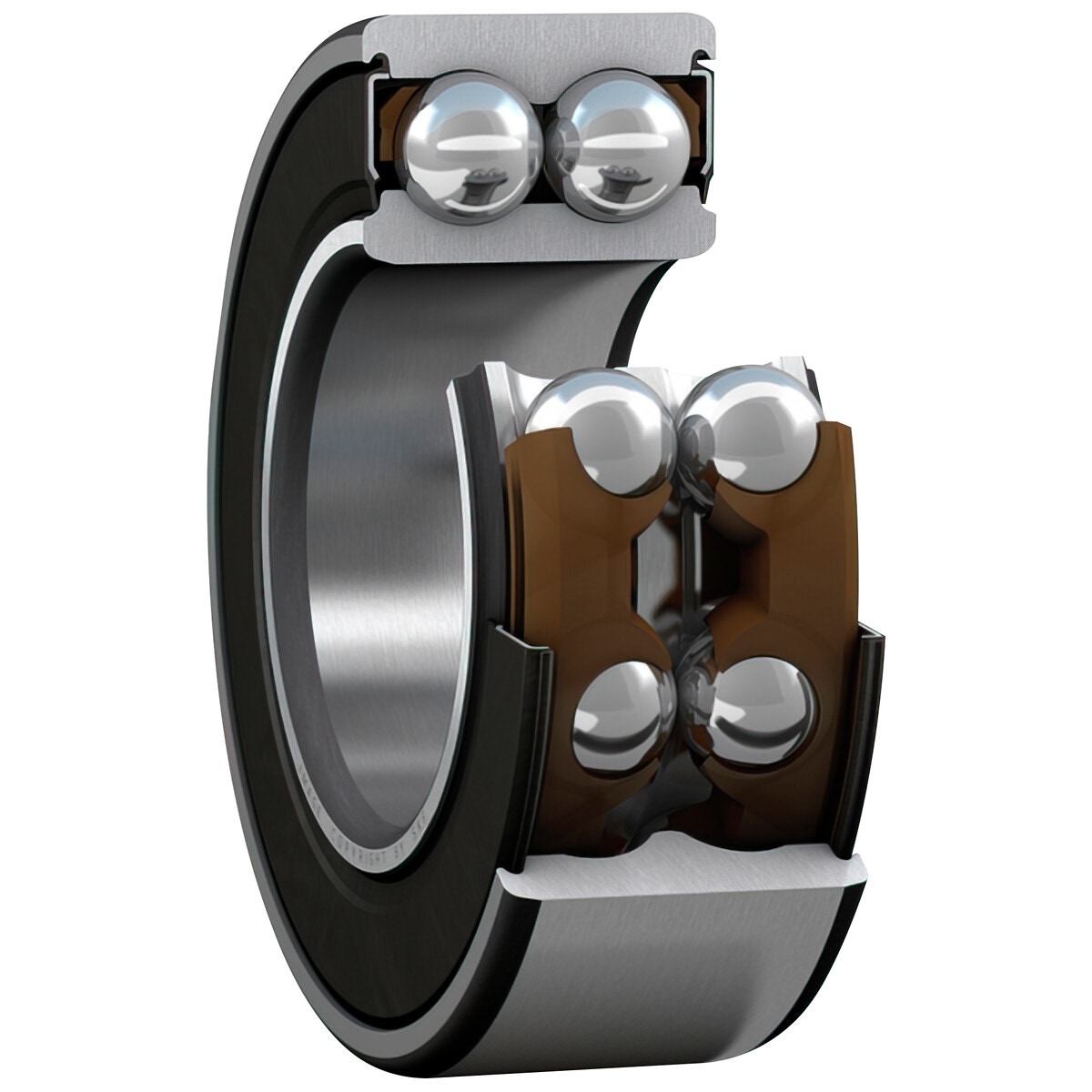

Divrindu divrindu leņķiskā kontakta lodīšu gultnis 30x62x23,

Description

bore diameter (d) 30 mm | outer diameter (D) 62 mm | width (B) 23.8 mm | inner ring abutment recess diameter (d2) 38.7 mm | outer ring abutment recess diameter (D2) 55.15 mm | chamfer dimension of inner ring (r1,2) min. 1 mm | pressure point(s) distance (a) 36 mm | abutment shaft diameter (da) min. 35.6 mm | abutment shaft diameter (da) max. 38.5 mm | abutment housing diameter (Da) max. 56.4 mm | fillet radius (ra) max. 1 mm | basic dynamic load rating (C) 30.5 kN | basic static load rating (C0) 22 kN | fatigue load limit (Pu) 0,93 kN | limiting speed 7500 r/min | calculation factor (kr) 0.06 | calculation factor (e) 0.8 | calculation factor (X) 0.63 | calculation factor (Y0) 0.66 | calculation factor (Y1) 0.78 | calculation factor (Y2) 1.24

Attributes

Inner diameter Ø (mm): 30 | Inner diameter Ø (mm): 30.00 | Outer diameter Ø (mm): 62 | Outer diameter Ø (mm): 62.00 | Package length (cm): 6.3 | Package width (cm): 6.5 | Package height (cm): 2.9 | Gross weight (kg): 0.296000 | EAN: 7316570390452
