Divkāršais pārcentrēšanas vārsts 1/2 vbcdde

Description

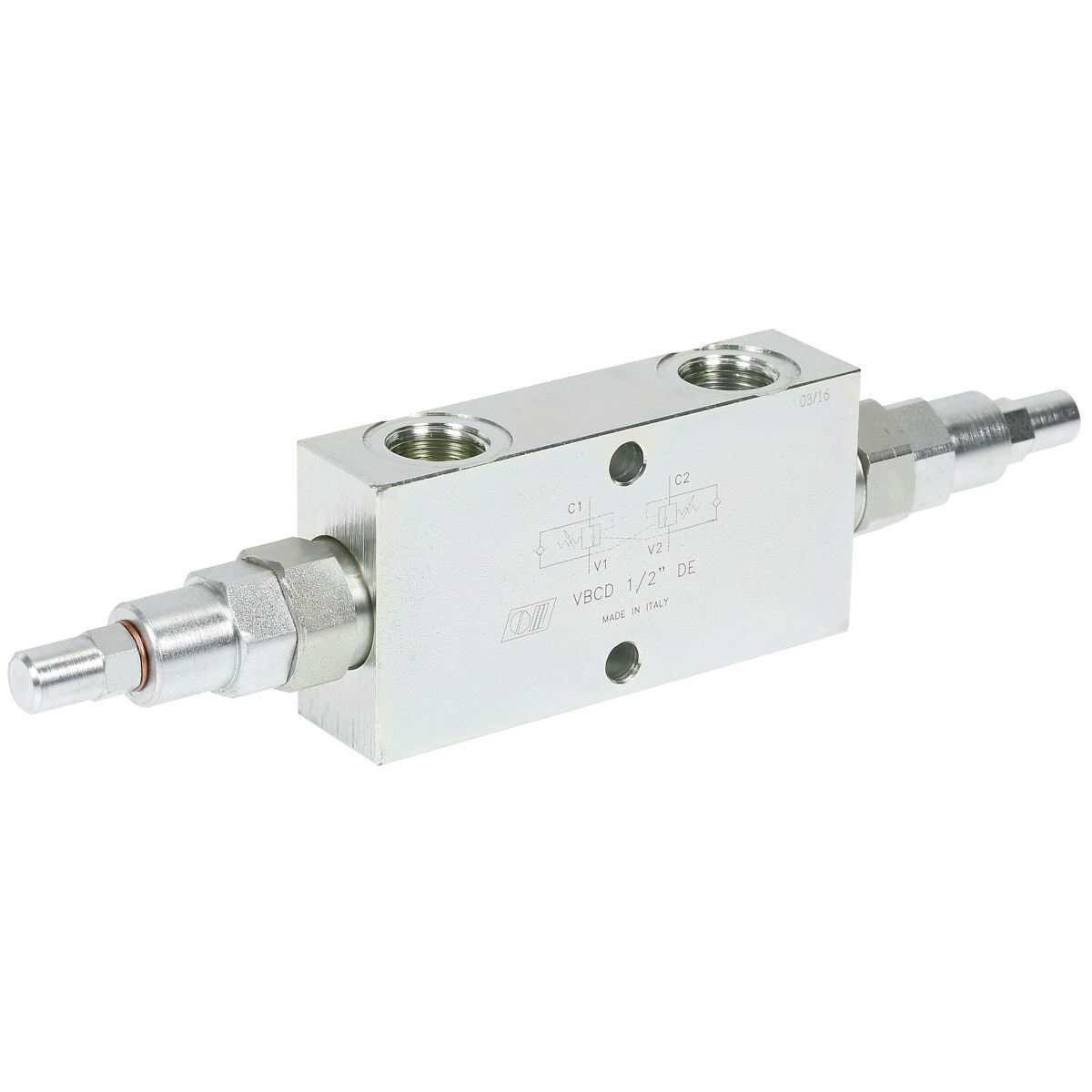

type VBCD DE | double overcentre valve is used to control actuator's movements and block in both direction in order to have a under control descent of a load; load's weight doesn't carry it away, as the valve prevents any cavitations of the actuator | the type A is different in the connections in the connections position and the pilot ratio | material zinc plated steel | BunaN sealing | coupling V C: G 1/2" | pilot ratio 1:3,1 | max. flow 50 l/min | max. pressure 350 bar (standard setting 320 bar)

Attributes

Thread: G 1/2" -14 | Package length (cm): 26.5 | Package width (cm): 3 | Package height (cm): 6 | Gross weight (kg): 1.698000 | EAN: 6418914960640
