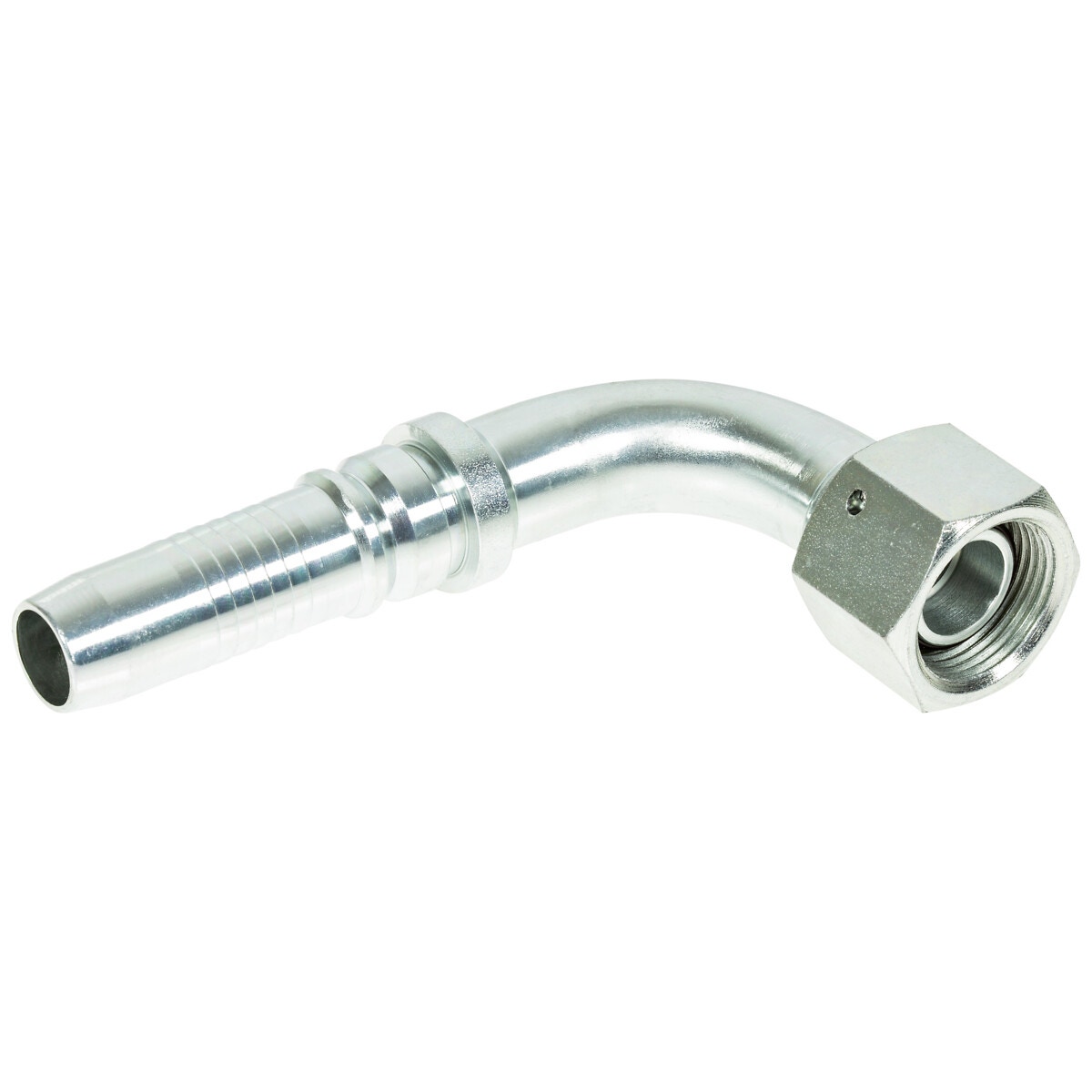

Bloķēšanas veidgabals bsp 1-1 90 iekšējais.

Description

DKR 90° / BSPP female thread / sealing cone 60° | ISO 12151 / SAE J516 | operating pressure 420 bar | thread BSPP 1"-11 | hose size -16 | hose DN 25 | hose inner Ø 1" | hose inner Ø 25,4 mm | H 38 mm | B 72 mm | A 70,5 mm | the hose is skived both internally and externally in order to create two zones: one locking and one sealing | the locking is created in the front of the fitting, where nipple and ferrule are swaged together with the reinforcement of the hose | the back of the fitting is the sealing part, the sealing part is created between nipple and inner tube | the Interlock fitting is recommended for hydraulic systems with very high pulsating pressure and requirements of safety

Attributes

Hose inner Ø (mm): 25 | Hose inner Ø (inch): 1" | Thread: G 1" -11 | Package length (cm): 21 | Package width (cm): 2.7 | Package height (cm): 4.1 | Gross weight (kg): 0.540000 | EAN: 6418914969612
