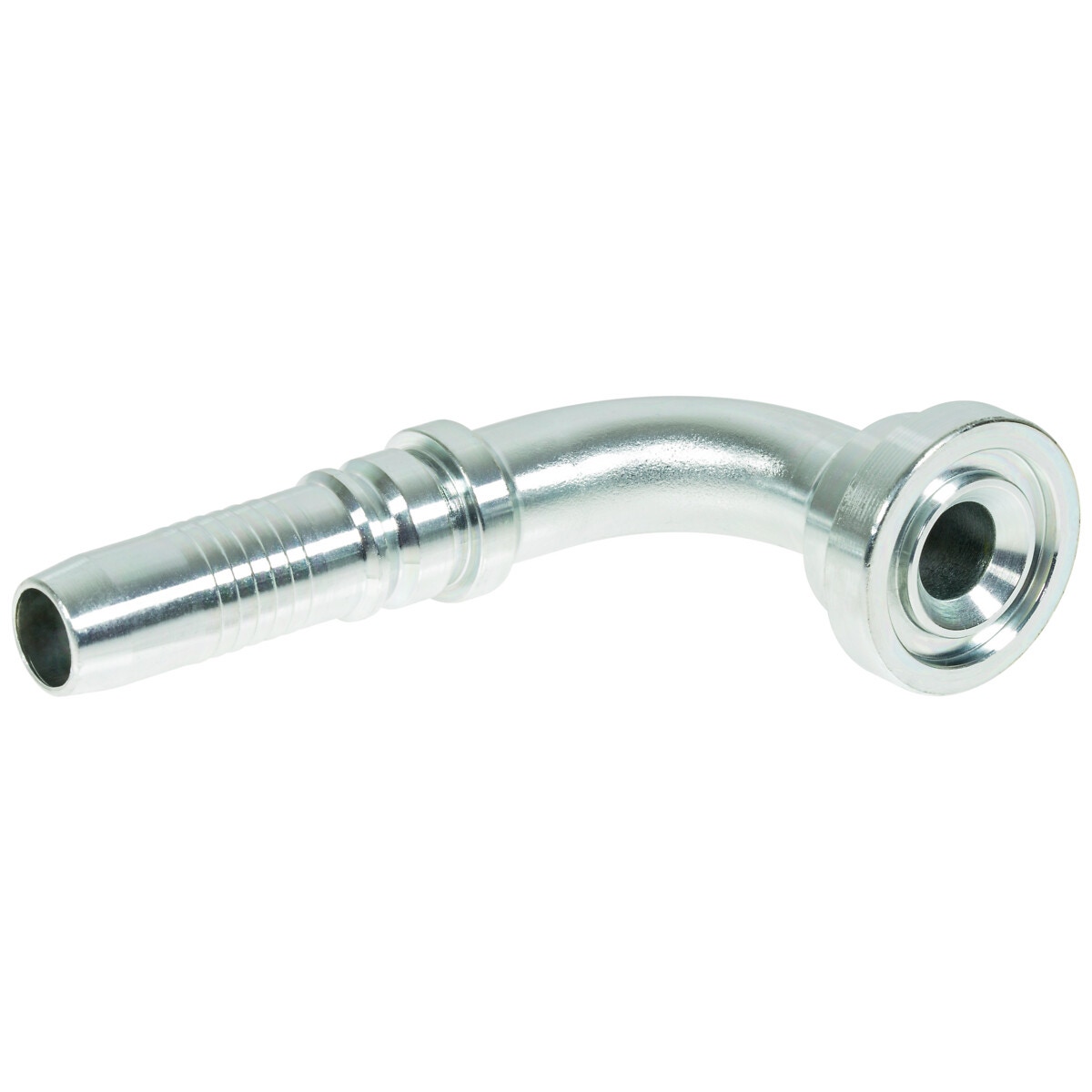

Bloķēšanas savienojums sae-6000psi 47,7-1 90

Description

90° / SAE 6000 PSI / SAE J518 | operating pressure 420 bar | hose size -16 | hose DN 25 | hose inner Ø 1" | hose inner Ø 25,4 mm | D 1" | D1 47,6 mm | B 69 mm | A 70,6 mm | the hose is skived both internally and externally in order to create two zones: one locking and one sealing | the locking is created in the front of the fitting, where nipple and ferrule are swaged together with the reinforcement of the hose | the back of the fitting is the sealing part, the sealing part is created between nipple and inner tube | the Interlock fitting is recommended for hydraulic systems with very high pulsating pressure and requirements of safety

Attributes

Hose inner Ø (mm): 25 | Hose inner Ø (inch): 1" | Package length (cm): 21 | Package width (cm): 2.7 | Package height (cm): 5 | Gross weight (kg): 0.534000 | EAN: 6418914969711
