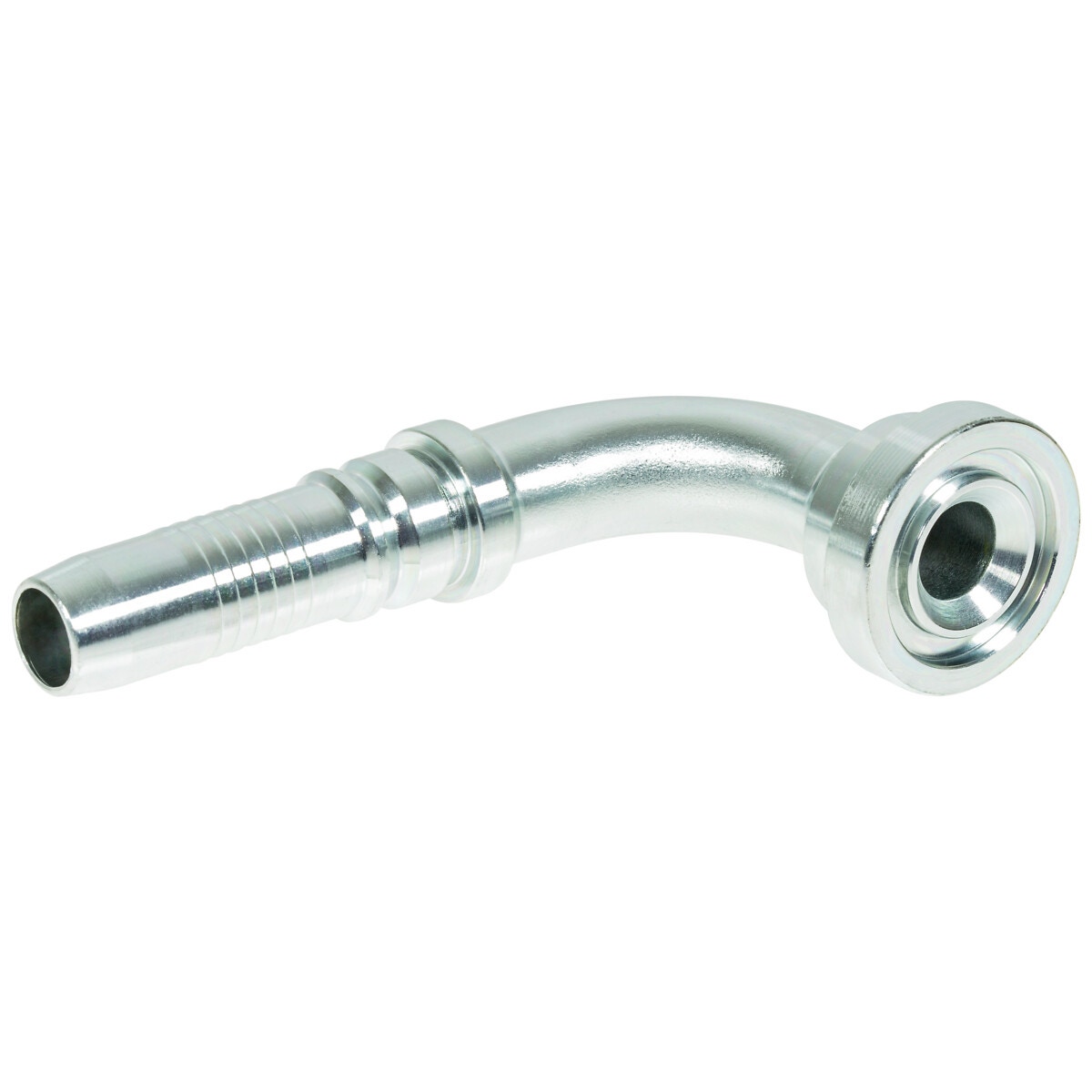

Bloķēšanas savienojums sae-6000psi 41.3-3/4 90

Description

90° / SAE 6000 PSI / SAE J518 | operating pressure 420 bar | hose size -12 | hose DN 20 | hose inner Ø 3/4" | hose inner Ø 19 mm | D 3/4" | D1 41,3 mm | B 62 mm | A 54,7 mm | the hose is skived both internally and externally in order to create two zones: one locking and one sealing | the locking is created in the front of the fitting, where nipple and ferrule are swaged together with the reinforcement of the hose | the back of the fitting is the sealing part, the sealing part is created between nipple and inner tube | the Interlock fitting is recommended for hydraulic systems with very high pulsating pressure and requirements of safety

Attributes

Hose inner Ø (mm): 19 | Hose inner Ø (inch): 3/4" | Package length (cm): 17 | Package width (cm): 2 | Package height (cm): 4.4 | Gross weight (kg): 0.313000 | EAN: 6418914969704
