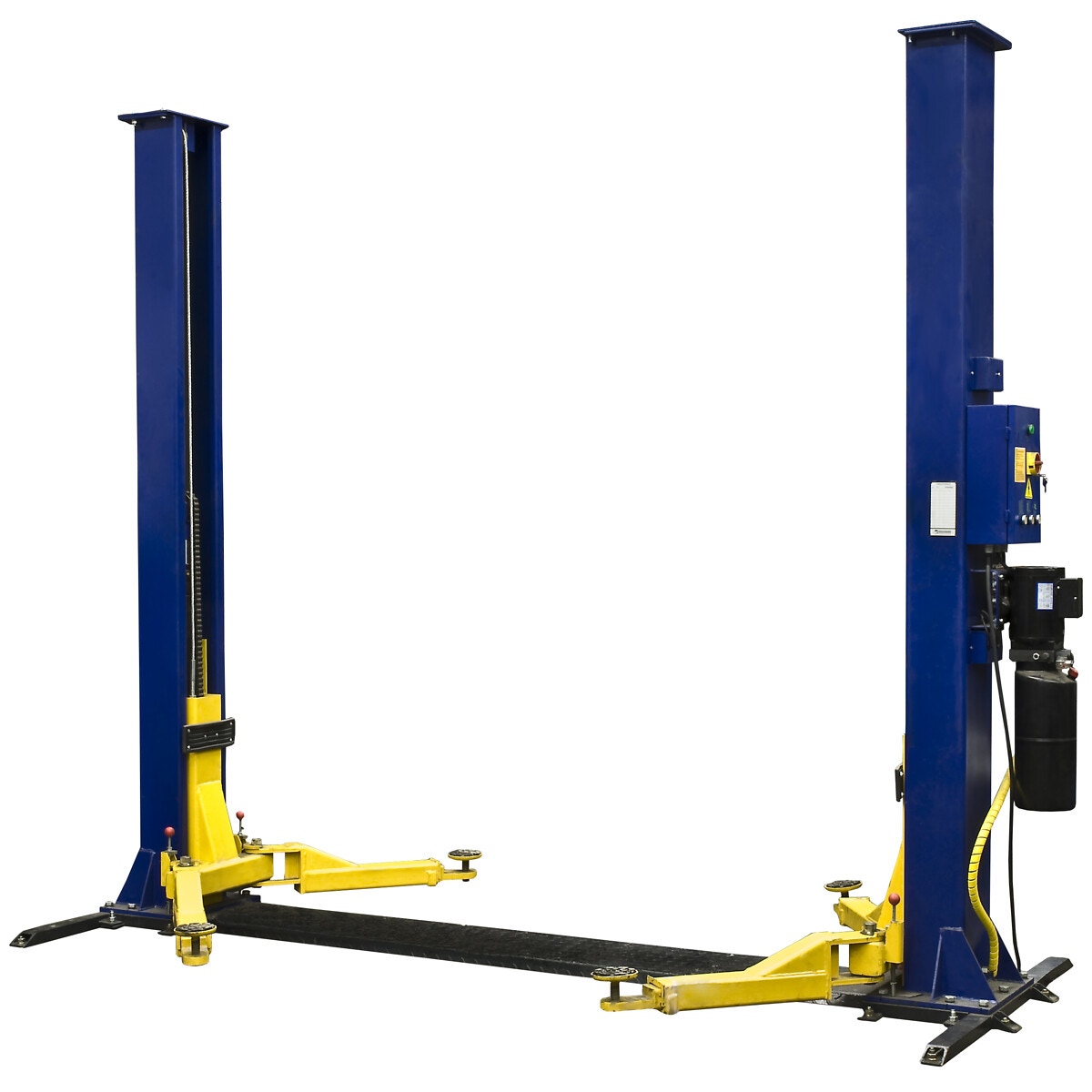

AUTO PACĒLĀJS 2 PĪLĀRI 2XHYDR. 3TON MEGANEX

Description

max. capacity 3000 kg | max. lifting height 1950 mm | min. lifting height 125 mm | drive-through clearance max. 2396 mm | power 2200 W / 380 V | hydraulic pressure 20 Mpa | dual hydraulic cylinders (balanced and fast lift) | wire rope for balancing | electric safety lock system | lifting time approx. 45 sec. | noise level 75 dB(A) | columns distance (from the outer edge) 3240 mm | columns distance (from the inner edge) 2650 mm | includes wedge anchors/expansion bolts (16 pcs, M18 x 160 mm) for ground mounting | height overall 2874 mm | weight 550 kg

Attributes

Package length (cm): 280 | Package width (cm): 80 | Package height (cm): 110 | Gross weight (kg): 580.000000 | EAN: 6418914740303
