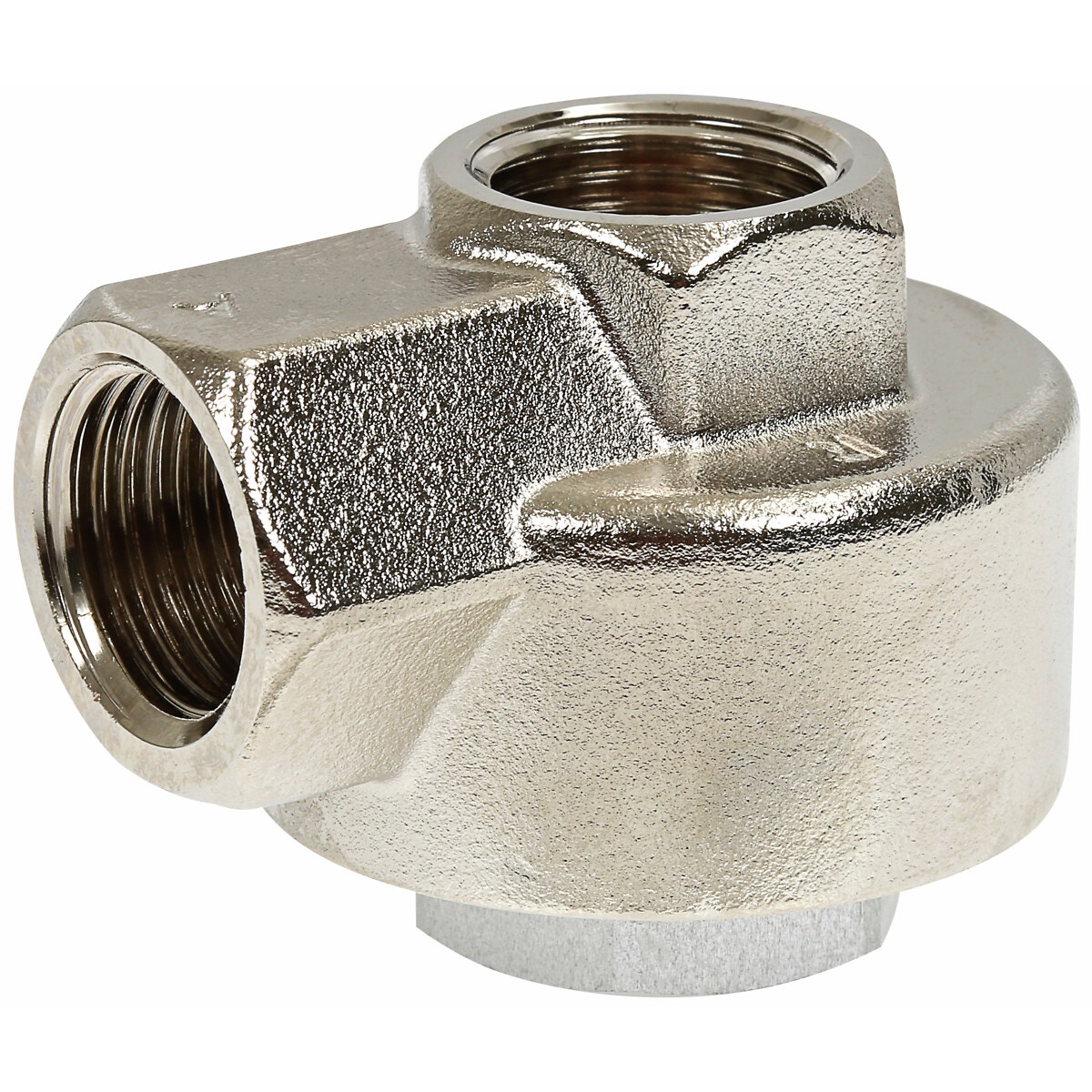

Ātrs izplūdes vārsts 1/2 vsr
25 €
✓ Pieejams
Description
VSR series | new, more compact and lighter version | used to evacuate air in the cylinder quickly, which increases cylinder speed | material body nickel-plated brass, O-ring NBR | thread G 1/2" | max. pressure 12 bar | min. pressure 0,5 bar | nominal flow rate 2400 Nl/min (2,5 bar) / 2800 Nl/min (4 bar) / 3600 Nl/min (6,3 bar) | empty flow rate 4400 Nl/min (2,5 bar) / 6300 Nl/min (4 bar) / 8000 Nl/min (6,3 bar) | weight 230 g | F 1/2" | B 35 | D 47 | CH 27 | L 45.7 | L1 16.2
Attributes
Thread: G 1/2" -14 | Package length (cm): 4.6 | Package width (cm): 4.7 | Package height (cm): 5.9 | Gross weight (kg): 0.229000 | EAN: 8024986181272
