ĀTRĀ SAVIENOJUMA UZMAVA IEKŠĒJĀ 3/8″ BSP ISO A 7241-1

Description

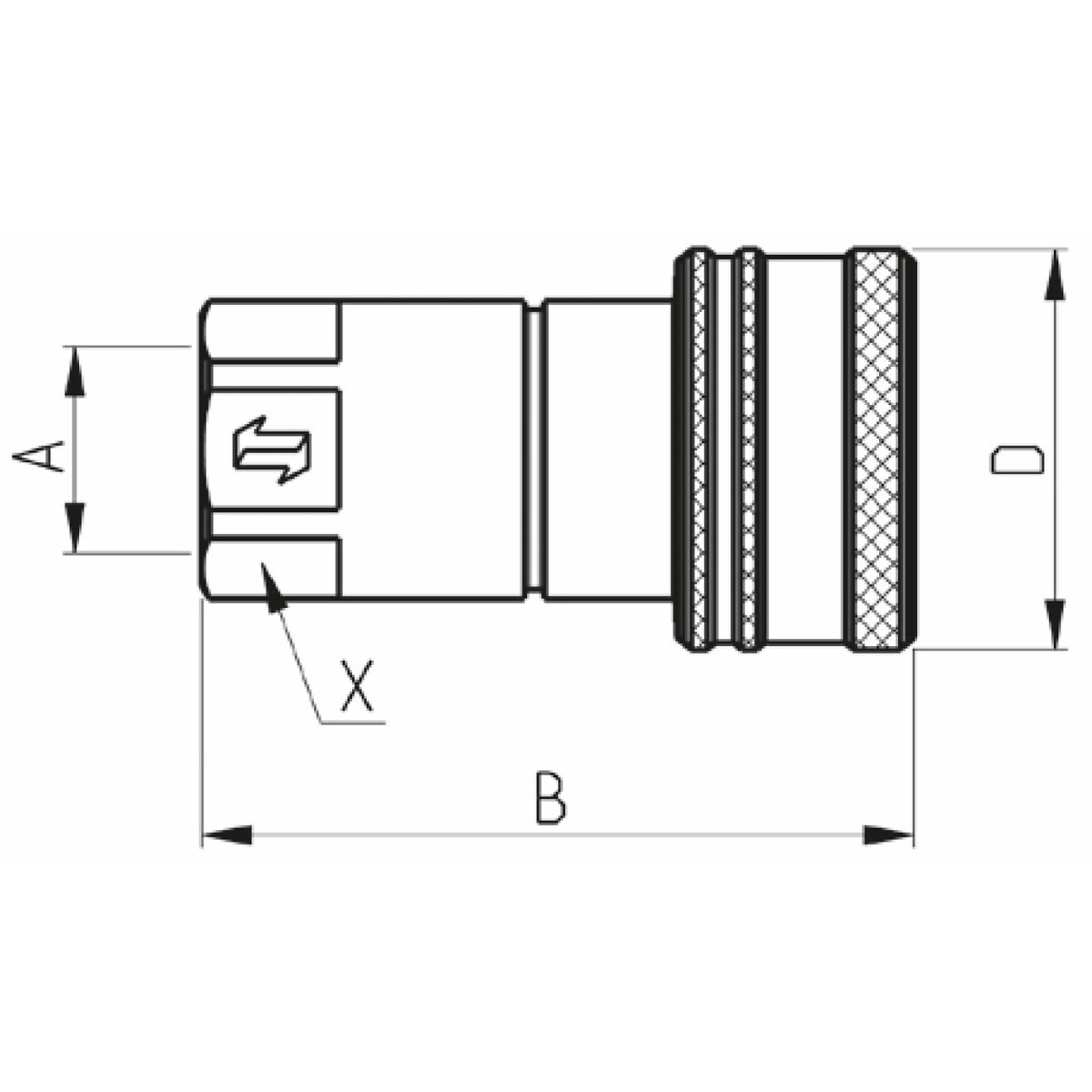

interchangeability according to ISO 7241-1 A standard | connection / disconnection not allowed under pressure | normal type quick coupling for agricultural use | size 3/8" | operating pressure 300 bar | flow 30 l/min | explosion pressure 1200 bar | A thread G 3/8" -19 | B 57 mm | D 32 mm | X 24 mm

Attributes

Thread: G 3/8" -19 | Package length (cm): 1.7 | Package width (cm): 8 | Package height (cm): 6 | Gross weight (kg): 0.153000 | EAN: 6418914967809
