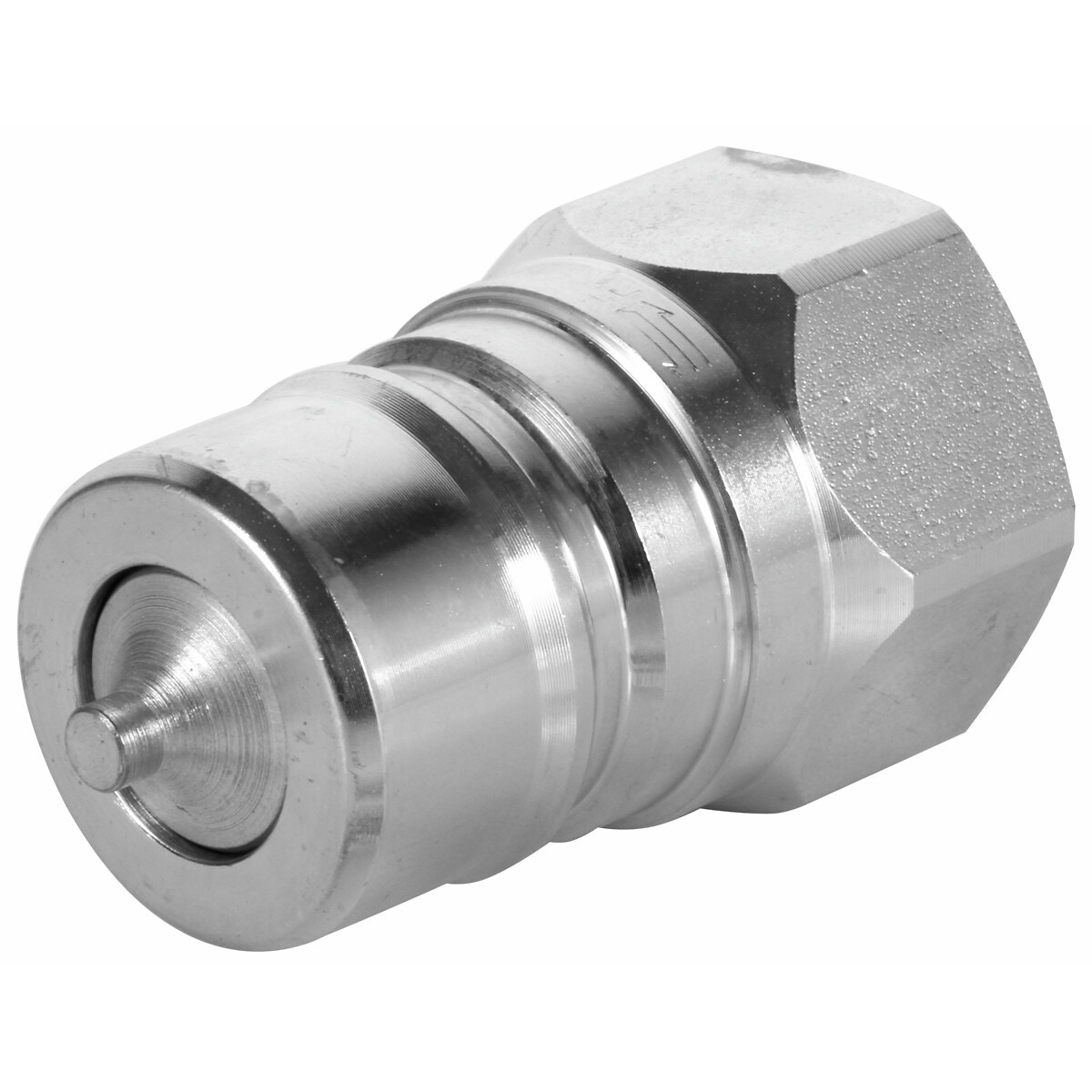

ĀTRĀ SAVIENOJUMA UZMAVA ĀRĒJĀ 3/8″ BSP ISO A 7241-1 ĀTRĀK

Description

interchangeability according to ISO 7241-1 A standard | connection / disconnection not allowed under pressure | normal type quick coupling for agricultural use | size 3/8" | operating pressure 300 bar | flow 30 l/min | explosion pressure 1600 bar | E thread G 3/8" -19 | C 39 mm | L 81 mm (female + male) | H 17.2 mm | Y 22 mm

Attributes

Thread: G 3/8" -19 | Package length (cm): 2.2 | Package width (cm): 2.2 | Package height (cm): 4.3 | Gross weight (kg): 0.054000 | EAN: 6418914891968
