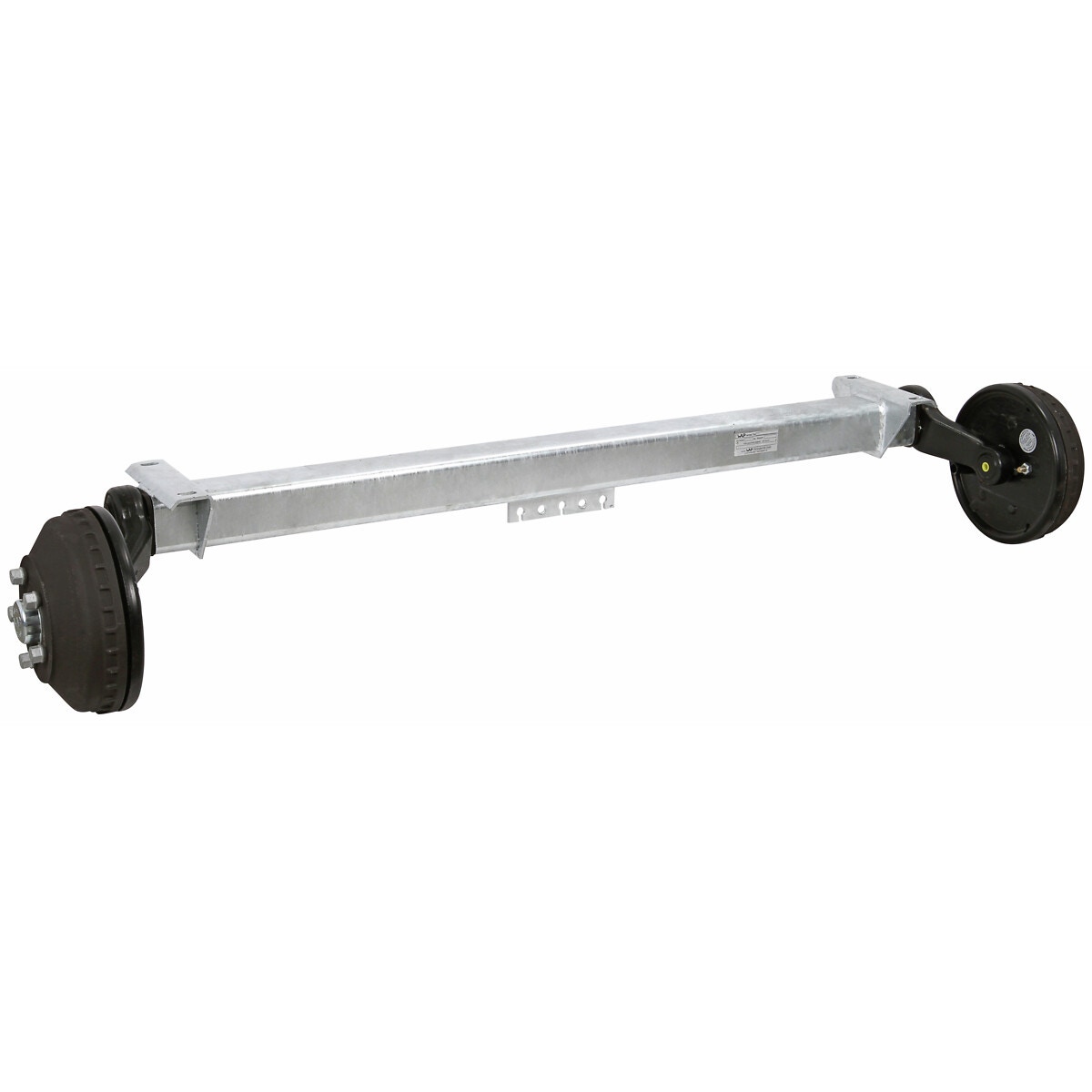

ASS BREMZĒŠANA 1350KG A1200 5X112

Description

A 1200 mm | C 1640 mm | bolt pitch 5 x 112 | tube diameter Ø 80 mm | brake W234RS, drum inner diameter Ø 230 x 40 mm | axle load 1350 kg | weight 63,0 kg | built from a custom-made hot galvanized square pipe | equipped with elastic cord | max. speed 130 km/h | two-lined angular ball bearings (compact) | patented reversing automatics | note! only compatible with WAP overrun hitches | WAP axle's standard wire 1 – axle trailer PV339035 (order 2 pcs of wires per axle) | WAP axle's standard wire 2 – axle trailer, the front axle's wire PV339035 the rear axle's wire PV339039 (order 2 pcs of wires per axle) | the length of the cables vary regarding the width of the vehicle, the wheelbase and the brake compensator, therefore we suggest to take the measurements of the replaceable wire in advance | stainless brake cables: PV339035, PV339036, PV339037, PV339038, PV339039, PV339040, PV339041, PV339041A

Attributes

Package length (cm): 166 | Package width (cm): 26 | Package height (cm): 26 | Gross weight (kg): 63.000000 | EAN: 6418914441637
