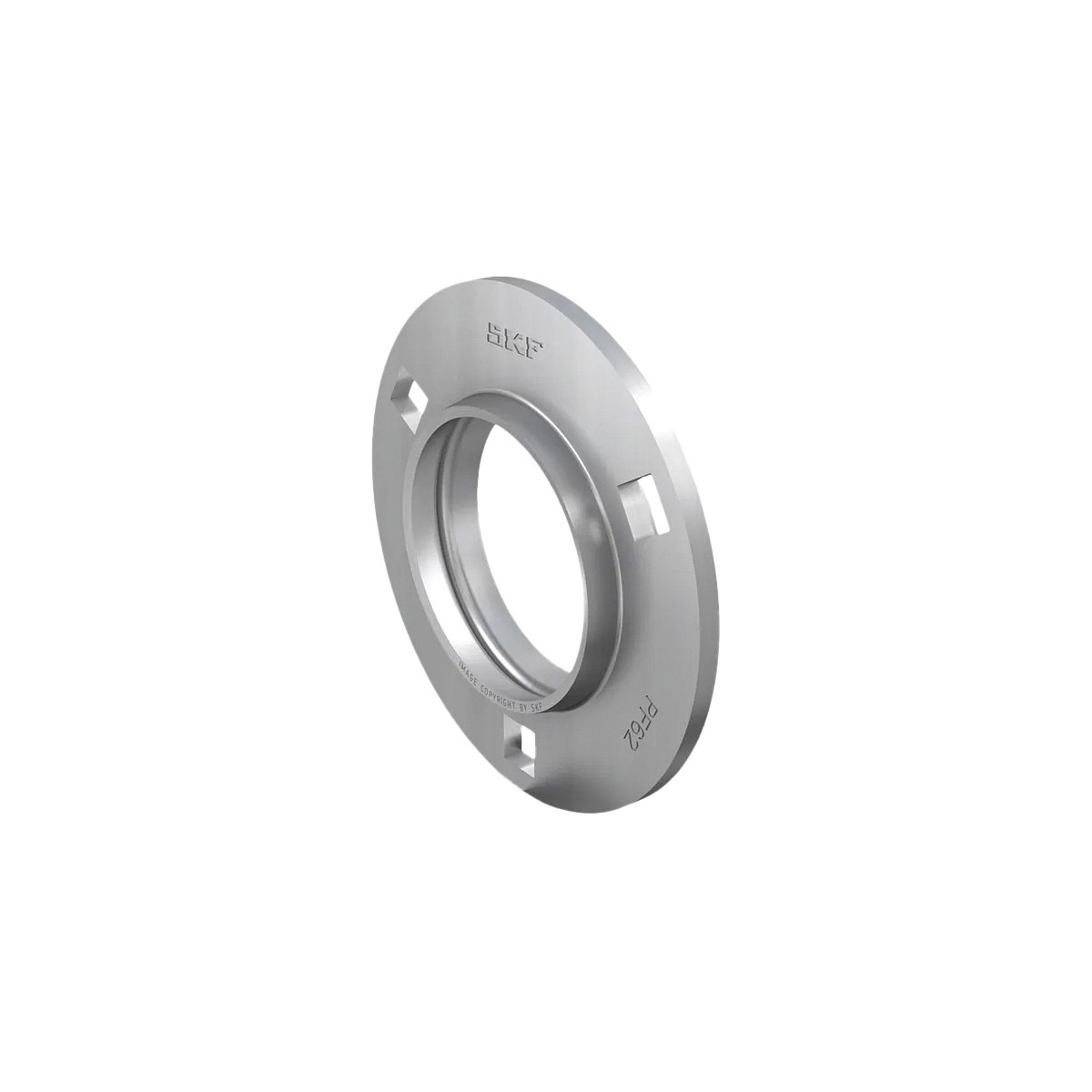

APAĻŠ FLANŠVEIDA KORPUSS Y GULTNIM 52X9X95 SKF
12 €
✓ Pieejams
Description
diameter of spherical seat (Da) 52 mm | width housing half (A2) 9 mm | material thickness (A4) 2 mm | overall length (H) 95 mm | abutment diameter (H2) min. 56 mm | distance between attachment bolts (J) 76.2 mm | length of attachment bolt hole (N) 8.7 mm | permissible radial load max. 3.6 kN
Attributes
Outer diameter Ø (mm): 52 | Outer diameter Ø (mm): 52.00 | Package length (cm): 9.5 | Package width (cm): 9.5 | Package height (cm): 1.8 | Gross weight (kg): 0.176000 | EAN: 7316570196368
