ĀMURU VĀRSTS 1/2 VRFC3C-VEI 0M432080033500C

Description

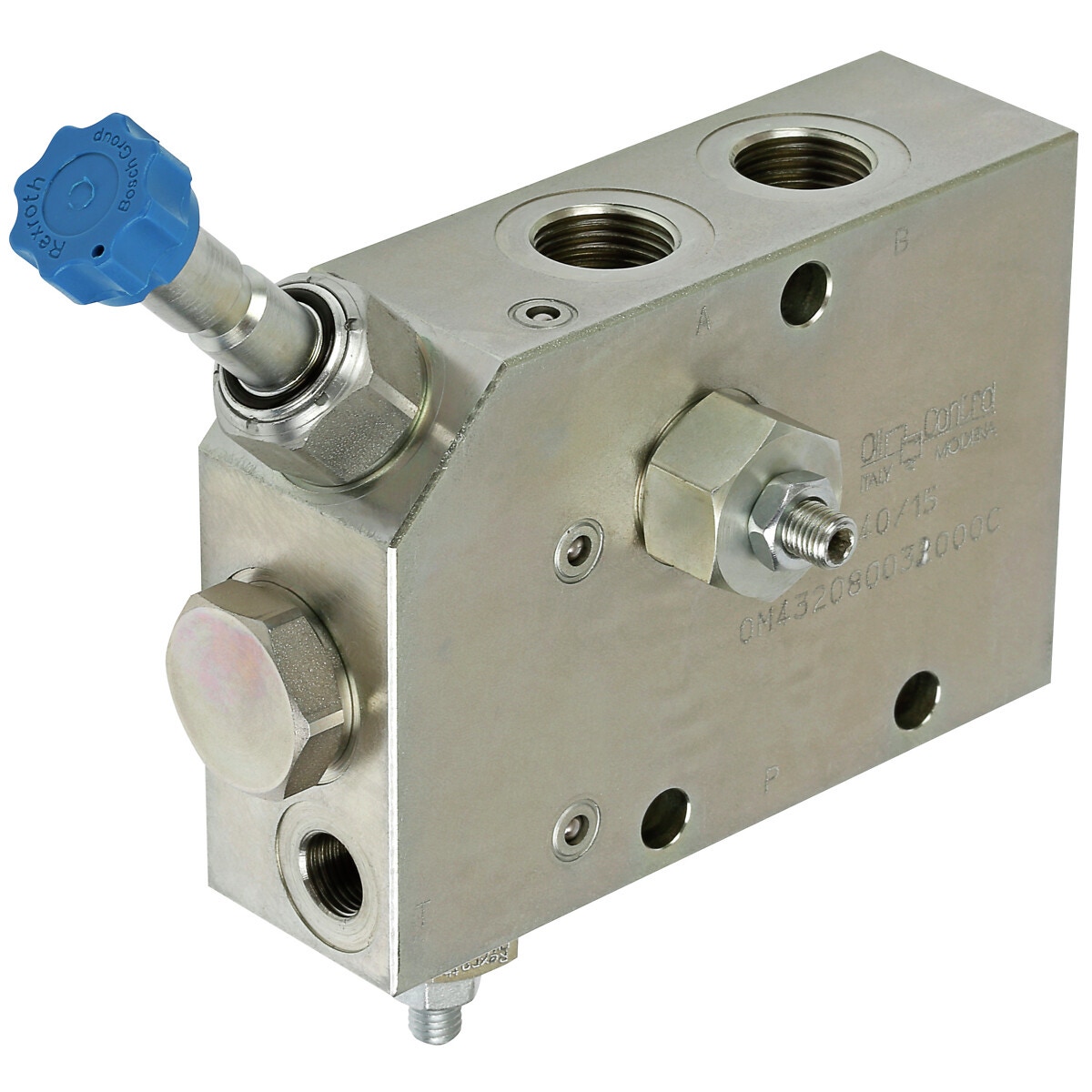

type A-VRFC3C-VEI-VS | 3-way flow control valve for heavy duty (such as hydraulic hammers) | flow control with pressure compensated and solenoid controlled priority flow | both flows from A and B ports can be employed to power different functions of the machine | material zinc plated steel | coupling P A B: G 1/2" | coupling T: G 1/4" | max. flow 100 l/min | max. regulated flow 85 l/min | flow per turn approx. 18 l/min | pressure range 100 – 350 bar (standard setting 350 bar) | pressure increase 95 bar/turn

Attributes

Thread: G 1/4" -19, G 1/2" -14 | Package length (cm): 15 | Package width (cm): 4 | Package height (cm): 9 | Gross weight (kg): 3.350000 | EAN: 6418914960749
