40-1/2″ PPS1 VĪTŅGRIEZES ATLOKS

Description

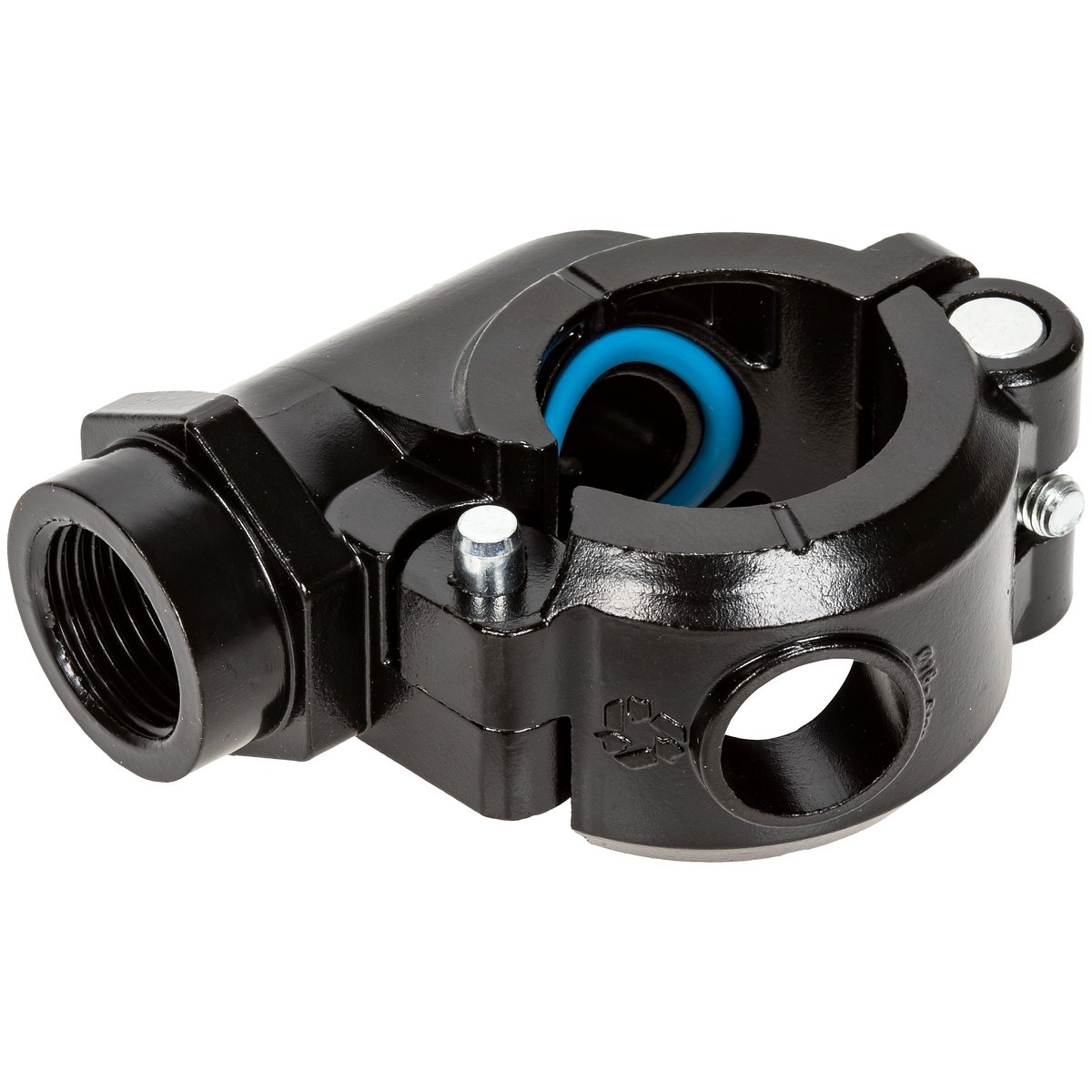

Prevost tapping flange PPS1 BP | the new PPS Grip Concept is based on a stainless steel ring with teeth that penetrate the aluminium | leak tightness is achieved via a new contoured and lubricated seal, with optimised design and properties (the seal remains perfectly leak tight even under the harshest conditions) | material 100 % aluminium, EN AB 46100 | standard DESP 2014/68/UE REACH | temperature range -20…+80 °C | fluid compressed air | operating pressure 0 – 16 bar | vacuum -0.98 bar | pipe outer diameter Ø 40 mm | female thread G 1/2" | A 44 mm | B 110 mm | C 102 mm

Attributes

Package length (cm): 11.1 | Package width (cm): 16 | Package height (cm): 6.1 | Gross weight (kg): 0.586000 | EAN: 3660058317238
