20 mm 90 pps1 leņķa savienojums

Description

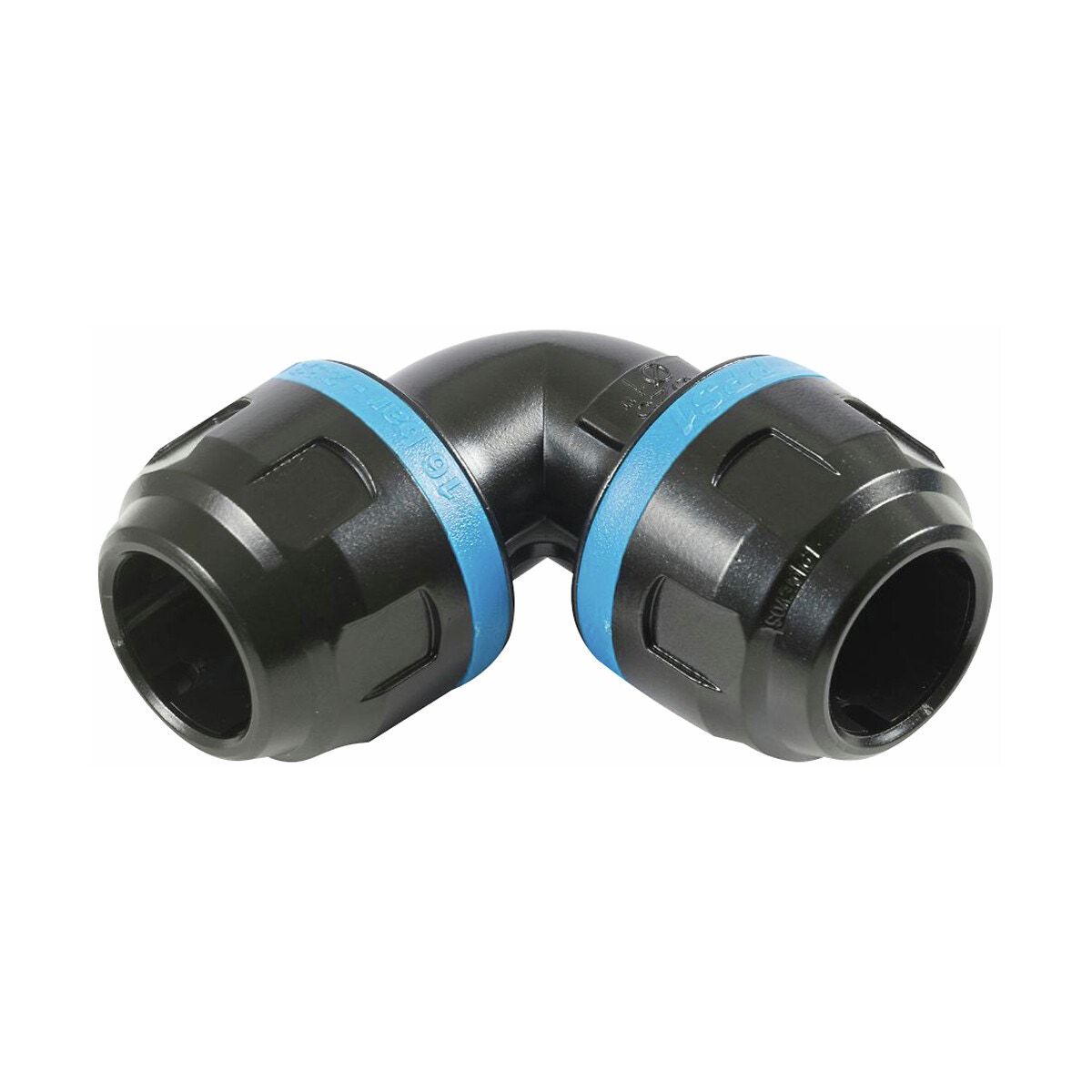

Prevost 90° equal female elbow fitting PPS1 9C | the new PPS Grip Concept is based on a stainless steel ring with teeth that penetrate the aluminium | leaktightness is achieved via a new contoured and lubricated seal, with optimised design and properties (the seal remains perfectly leaktight even under the harshest conditions) | material 100 % aluminium, EN AB 46100 | standard DESP 2014/68/UE REACH | operating temperature -20…+80 °C | fluid compressed air | operating pressure 0 – 16 bar | vacuum -0,98 bar | pipe outer diameter Ø 20 mm | A 38 mm | B 73 mm

Attributes

Package length (cm): 4 | Package width (cm): 8.3 | Package height (cm): 8 | Gross weight (kg): 0.107000 | EAN: 3660058301466
